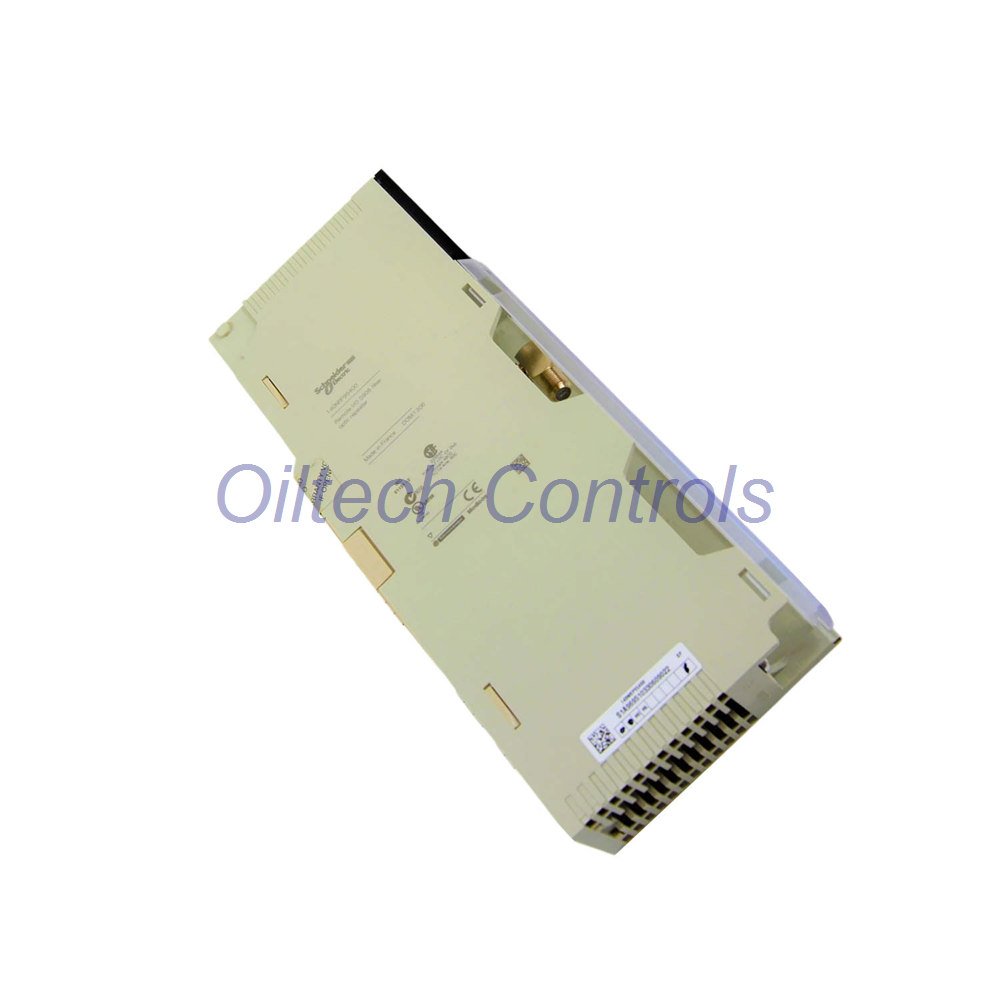

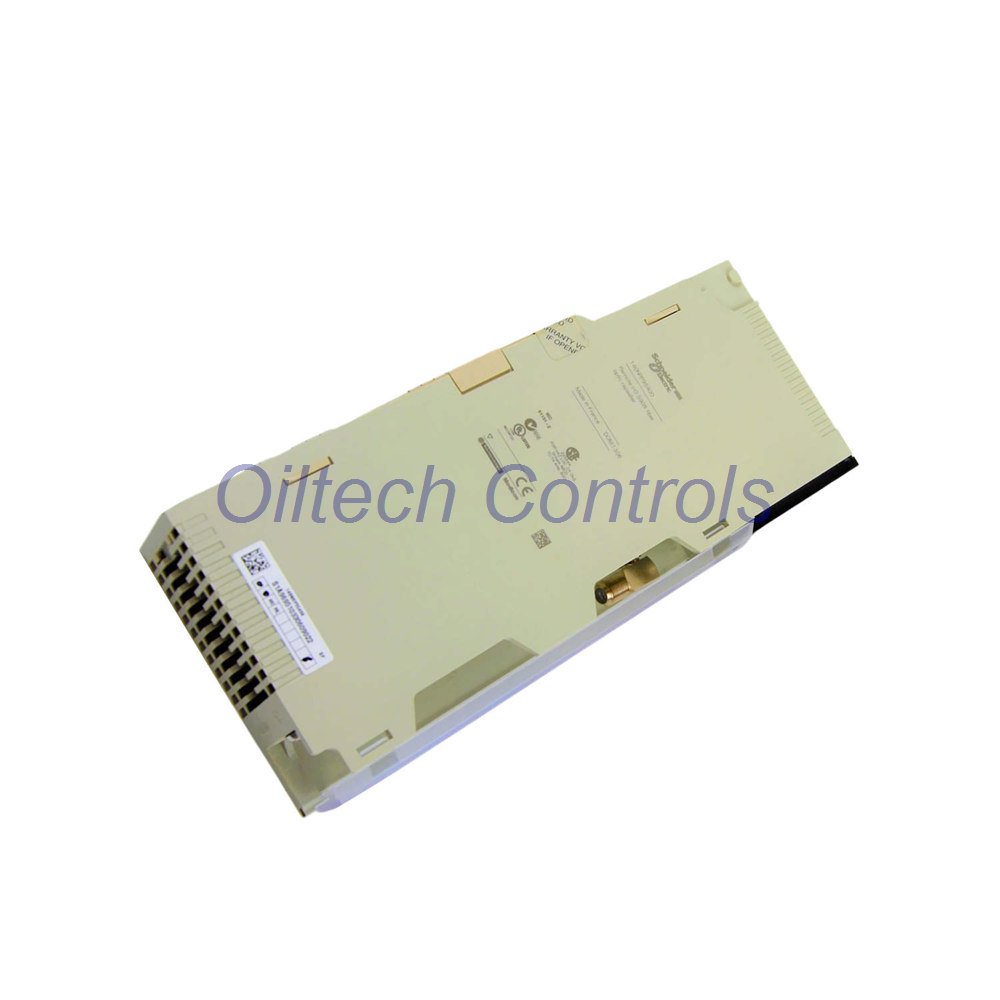

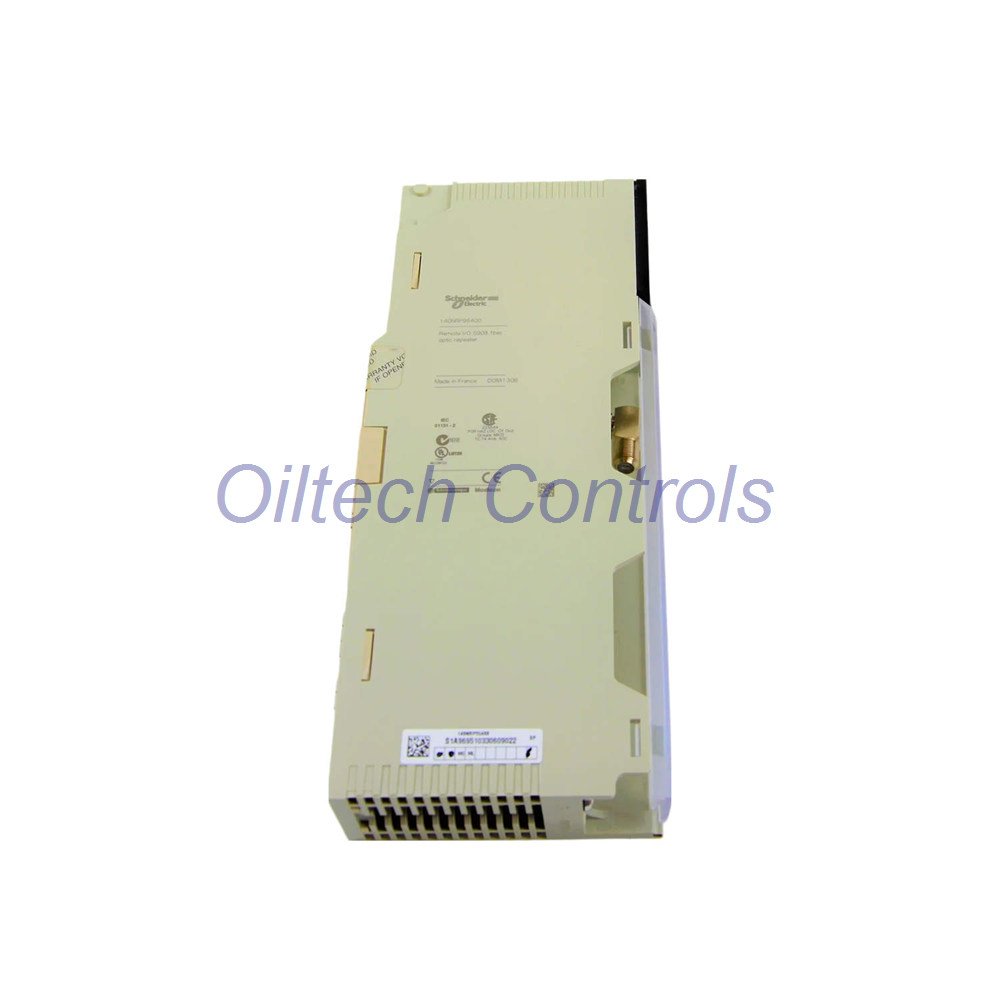

140NRP95400 Fiber Optic Repeater Overview
140NRP95400 is a fiber optic repeater from Schneider Electric.
It is designed for long distance signal extension in PLC networks.
This unit works with the Modicon Quantum platform.
It boosts weak signals and keeps data stable.
It is ideal for harsh industrial sites.
Core Product Data
- Brand: Schneider Electric
- Model: 140NRP95400
- Series: Modicon Quantum
- Device type: Fiber optic repeater
- EAN: 3595864115238
- Warranty: 12 months
Optical Performance
- Fiber type: Multi-mode
- Wavelength: 820 nm
- Receiver sensitivity: -30 dBm
- Detected silence level: -36 dBm
- Dynamic range: 20 dB
- Rise/Fall time: 20 ns
- Fast signal refresh rate
- Stable data over long distance links
Electrical Characteristics
- Bus current: 700 mA
- Power dissipation: 5 W
- Inrush current: 1A at 5VDC
- Low heat design
- Stable under voltage fluctuation
- Designed for continuous operation
Port Configuration
- 2 × Fiber ports (ST connector)
- 1 × Coaxial connector port
- LED status indicators
- Clear port layout for easy wiring
- Quick fault detection by LED
Mechanical Details
- Material: Polycarbonate (PC)
- Width: 40.34 mm
- Height: 250 mm
- Depth: 103.85 mm
- Weight: Approx. 0.65 kg
- Compact rack design
Key Advantages
- Extends network distance safely
- Reduces signal loss
- Improves PLC communication quality
- Strong anti-interference ability
- Suitable for factory and plant use
- Easy integration in Quantum racks
Shipping & Service
- Delivery by FedEx
- Delivery by UPS
- Delivery by DHL
- 12-month warranty support
- Professional technical assistance
Professional FAQ
- How far can this repeater extend fiber distance?
- It depends on cable quality and loss. Multi-mode fiber usually supports several kilometers in PLC systems.
- How do I confirm compatibility before buying?
- Check that your rack is Modicon Quantum and confirm ST fiber connectors are used.
- What does receiver sensitivity mean in real use?
- It shows how weak a signal the unit can detect. Lower dBm improves long distance stability.
- What is a common installation mistake?
- Poor fiber cleaning. Always clean ST connectors before plug-in to avoid signal loss.
- When should I replace a repeater?
- If LEDs show link failure or signal drop often, test power and fiber. Replace if fault remains.
