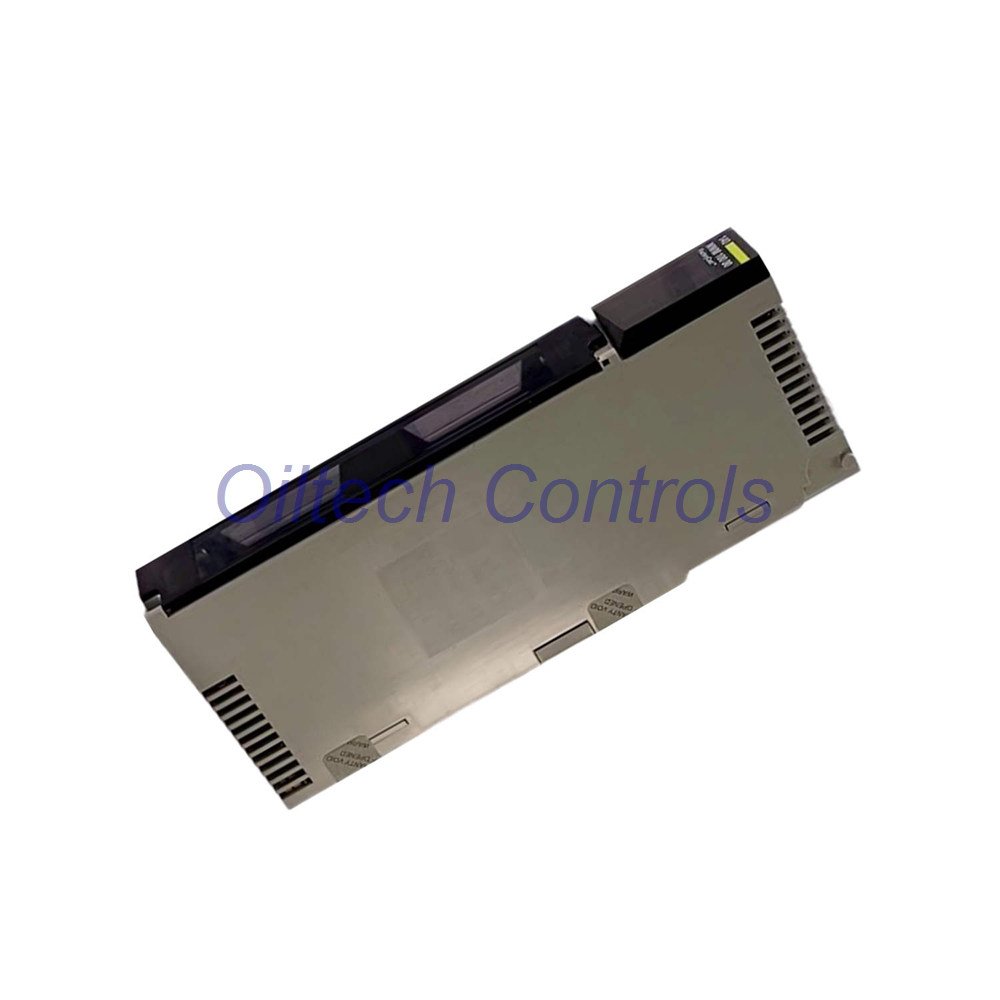

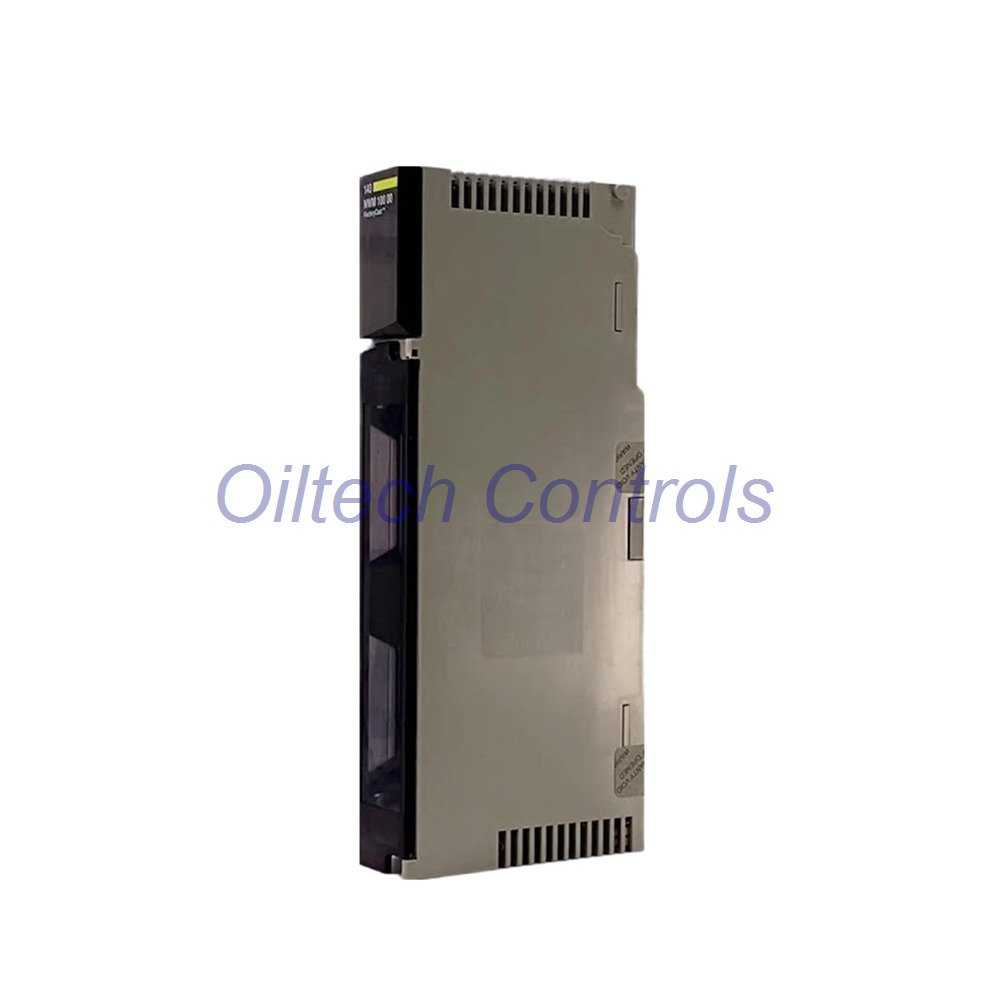

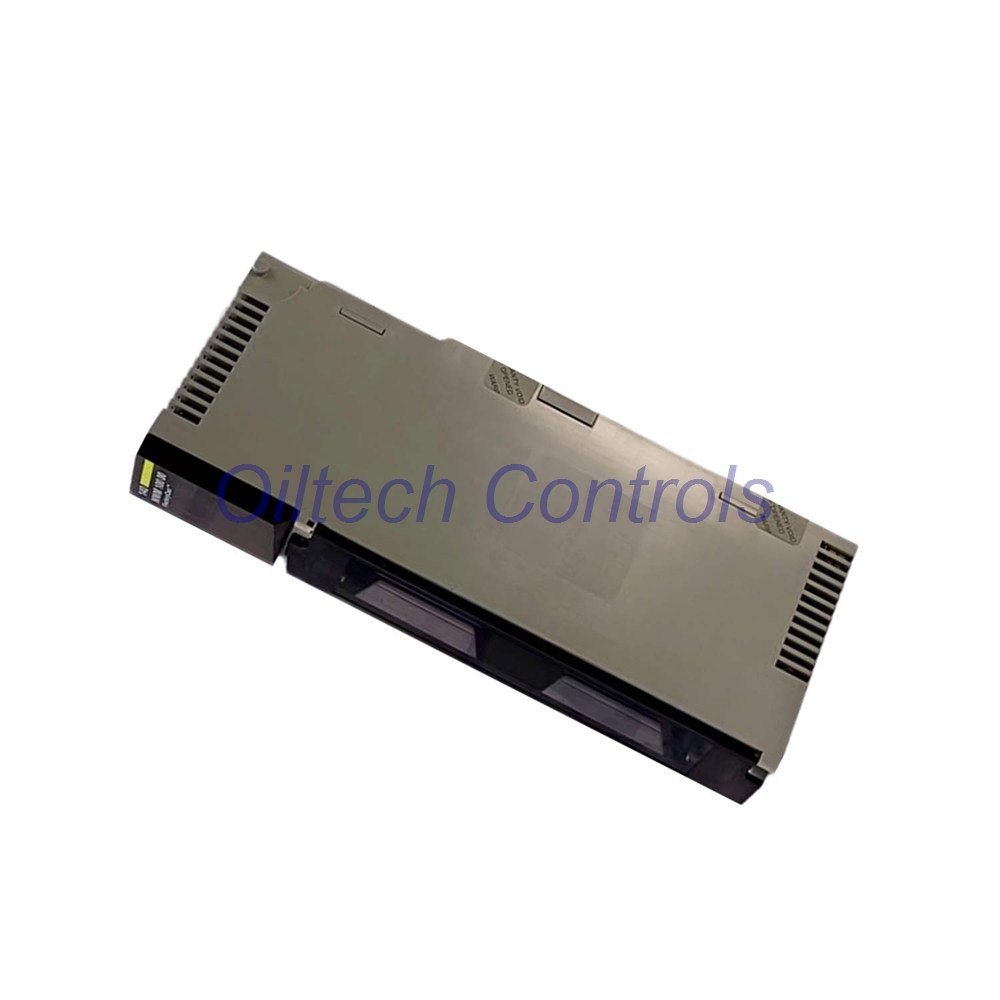

Schneider 140NWM05000 Modicon Quantum DIO Head‑End Adaptor

🔹 Schneider 140NWM05000 – Modicon Quantum DIO Head‑End Adaptor

The 140NWM05000 is your gateway to distributed I/O. It’s a head‑end adaptor with three interfaces: RS‑232, 100 Base‑Fx fiber, and 10/100 Base‑T copper. Requires an IP address, has a removable door for easy setup, and diagnostic LEDs.

🔌 Connectivity & power – at a glance

• RS‑232 · 100 Base‑Fx (fiber) · 10/100 Base‑T (copper)
• Bus current : 900 mA · power dissipation : 4.5 W
• Serial port : 750 mA bus current, 3.8 W dissipation
• Removable door – quick access to settings without dismounting
• Diagnostic LEDs for link, activity, module health
• Firmware upgradable – stays current with new features

✅ Why this adaptor? – real‑world benefits

• Three‑in‑one interfaces : connect old (RS‑232) and new (fiber/copper) networks
• Fiber option eliminates EMI and stretches distances up to 2 km
• Hot‑swappable design – replace without powering down the rack
• Diagnostic LEDs save hours of troubleshooting – status at a glance
• Firmware upgradable via serial or network – future‑proof investment
• Removable door protects DIP switches but allows fast changes

📋 Environment & mounting – keep it simple

• Operating temp : 0 … 40 °C · storage : 0 … 50 °C
• Humidity : 80% RH non‑condensing (operate/store)
• Mounts directly in Quantum rack – no tools needed
• No fuse – protected by backplane power supply
• Altitude : 1000 m max (standard industrial)

📦 Package & delivery

• Condition : new & original in factory packaging
• Warranty : 12 months against defects
• Shipping : FedEx, UPS, DHL – express worldwide

📞 Contact & support

• Email: info@oiltechcontrols.com
• WhatsApp: +86 158 8020 0923 (click to chat)
• For help with IP configuration or fiber selection, just ask.

❓ 5 field‑tested FAQs – with selection tips

• Q: Do I need to set the IP address before installing it in the rack?A: Yes, you must assign an IP using the serial port or the removable door DIP switches (for basic settings). Without an IP, the module won’t communicate on Ethernet.
• Q: Can I use the RS‑232 and Ethernet ports at the same time?A: Absolutely. RS‑232 is usually for local configuration or diagnostic, while Ethernet/fiber carries the main I/O traffic. They work in parallel.
• Q: What is the maximum number of I/O drops this head‑end can handle?A: In a Quantum DIO network, the 140NWM05000 can support multiple drops, but the exact number depends on your power budget and bus length. Typically up to 27 drops with proper repeaters.
• Q: The fiber port doesn’t link – what should I check first?A: Verify the fiber type (multimode vs single‑mode) and that the TX of one end goes to RX of the other. Also check if the remote device has the correct wavelength (usually 1300 nm for multimode).
• Q: Can I upgrade the firmware without stopping the PLC?A: Yes, the module supports online firmware upgrades, but you must follow Schneider’s procedure to avoid disrupting I/O communication. Use Unity Pro or a dedicated tool.

Short description (≤156 chars): Schneider 140NWM05000 Modicon Quantum DIO head‑end adaptor. RS‑232, 100Base‑Fx, 10/100Base‑T. 900mA bus, 4.5W. Removable door, diagnostic LEDs. 12mo warranty.
