Schneider 171CCC76010 Momentum M1 Processor Adapter Technical Specs

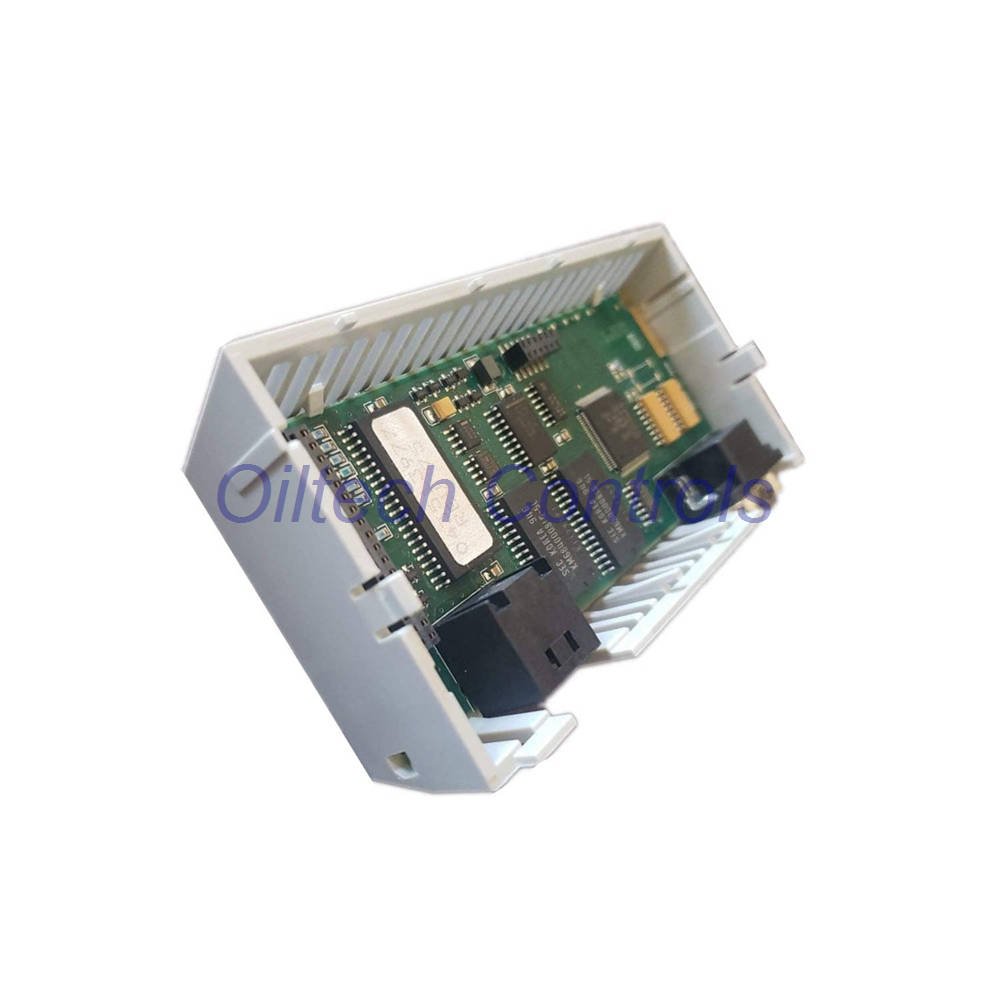

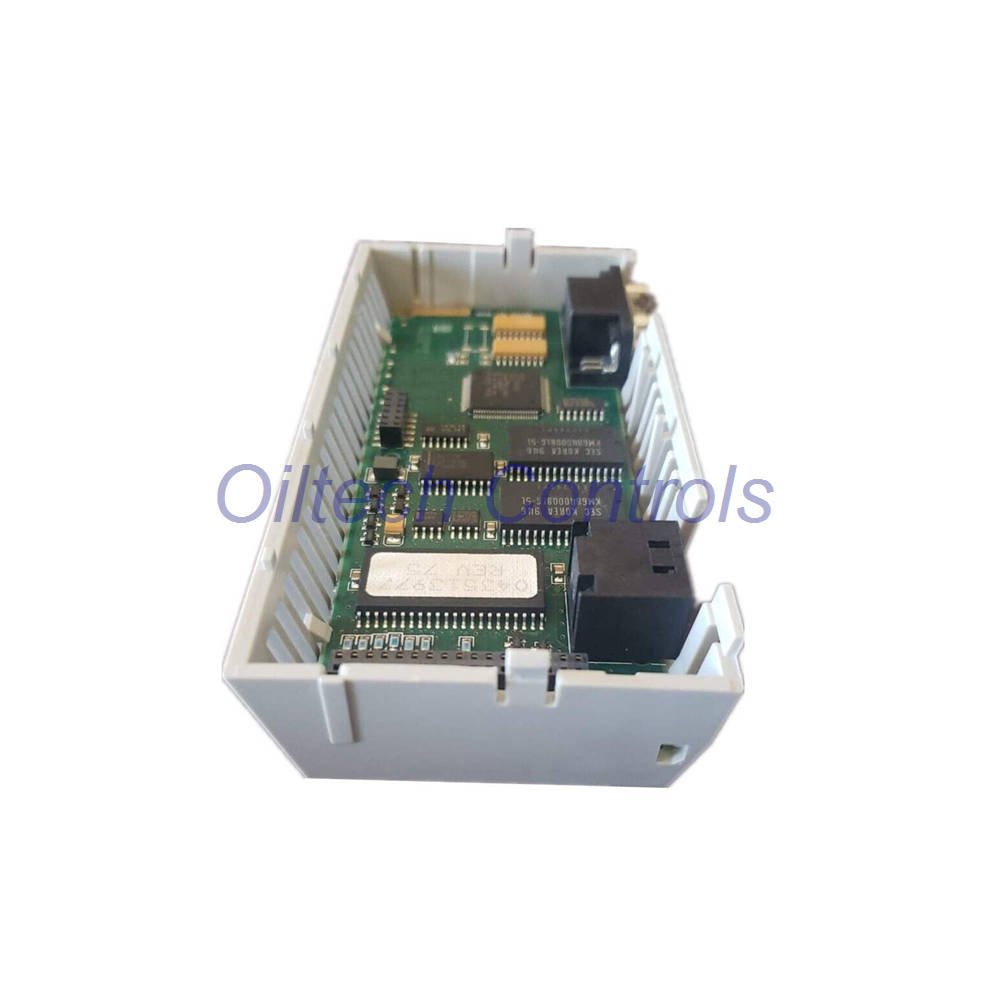

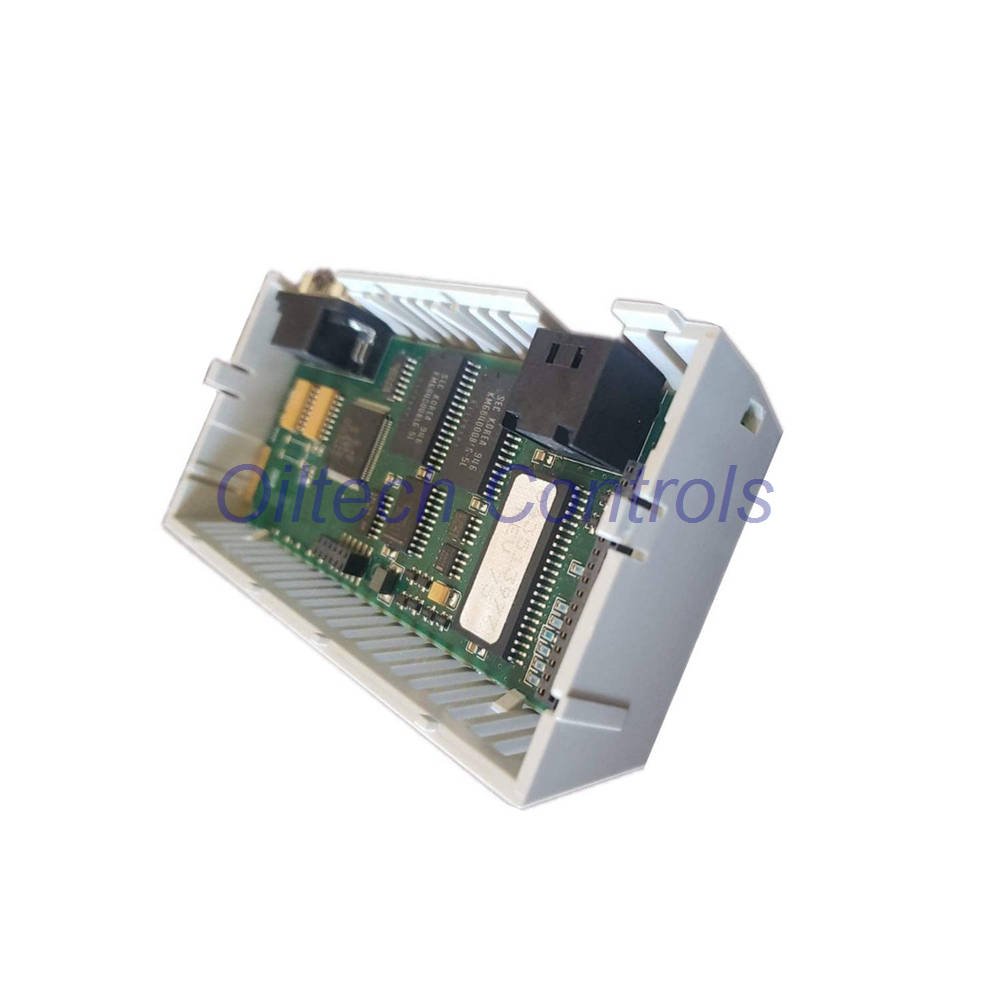

171CCC76010 Schneider Electric Modicon Momentum M1 Processor Adapter

The 171CCC76010 serves as a high-performance M1 processor adapter within the reliable Schneider Electric Modicon Momentum automation platform. This X86-based unit manages complex industrial logic with an impressive clock frequency of 32 MHz for real-time control. Engineering teams select the 171CCC76010 to provide consistent data processing and versatile communication via the integrated Modbus protocol. For technical inquiries, please contact info@oiltechcontrols.com or reach us via WhatsApp at +86 158 8020 0923.

Core Technical Specifications

• Brand: Schneider Electric
• Model Number: 171CCC76010
• Product Series: Modicon Momentum Automation Platform
• Processor Type: X86-based (Intel/AMD) at 32 MHz clock frequency
• Memory Configuration: 512 KB Flash and 512 KB RAM for program execution
• Instruction Speed: Processes 1,000 instructions in exactly 1 millisecond interval
• Word Length: Standard 16-bit architecture for seamless data handling operations
• I/O Capacity: Supports up to 8,192 bits for discrete I/O processor limits
• Logic Capacity: 18 KB LL984 program memory or 240 KB IEC program memory
• Supply Voltage: 5.0 Volts DC (+/- 5%) sourced from I/O base

Communication and Connectivity Interface

• Network Protocol: Native support for the industry-standard Modbus communication protocol
• Serial Port: Features one non-isolated RS-232C port for local configuration needs
• Expansion Port: Includes one dedicated I/O bus port for modular hardware expansion
• Software Compatibility: Supports Concept V2.6, Modsoft V2.5, and ProWORX 32 environments
• I/O Throughput: Handles 128 I/O words per drop when using Concept software

Environmental Durability and Physical Build

• Operating Temp: Functions safely between 0 to 60 degrees Celsius environment
• Storage Limits: Withstands extreme storage temperatures from -40 to 85 degrees Celsius
• Humidity Resistance: Operates in 5% to 96% relative humidity without water condensation
• Housing Material: Constructed from durable Lexan material for industrial chemical resistance
• Mechanical Strength: Resists shocks up to 15 gn peak for 11 milliseconds duration
• Vibration Tolerance: Meets 1 gn vibration resistance standards for high-movement machinery

Installation Guidelines

• Mounting Method: Secure the adapter directly onto any compatible Momentum I/O base unit
• Power Connection: Ensure the I/O base provides a stable 5V DC supply voltage
• Port Access: Maintain clear space for RS-232C cabling and I/O bus communication leads
• Altitude Constraint: Install the equipment at altitudes below 2,000 meters for optimal cooling
• Grounding: Verify proper grounding through the I/O base to prevent electrical noise interference

Shipping and Packing List

• Main Component: One Schneider Electric 171CCC76010 Processor Adapter Module
• Protective Packing: Anti-static shielding and high-density foam for safe global transit
• Shipping Weight: Total package weight approximately 215 grams for cost-effective air freight
• Logistics Partners: Global delivery available through trusted carriers including FedEx, UPS, and DHL

Frequently Asked Questions (FAQ)

• How does the memory allocation work for different programming languages?
  The module provides 18 KB for LL984 logic or 240 KB for IEC programming.
• What is the best way to choose between M1 and M1E adapters?
  Select the 171CCC76010 M1 if you require RS-232C instead of integrated Ethernet ports.
• Does this module require a separate power supply unit?
  No, the adapter draws its necessary 5V DC power directly from the connected base.
• Can I use this processor with modern ProWORX 32 software?
  Yes, the hardware maintains full compatibility with ProWORX 32 and older Concept versions.
