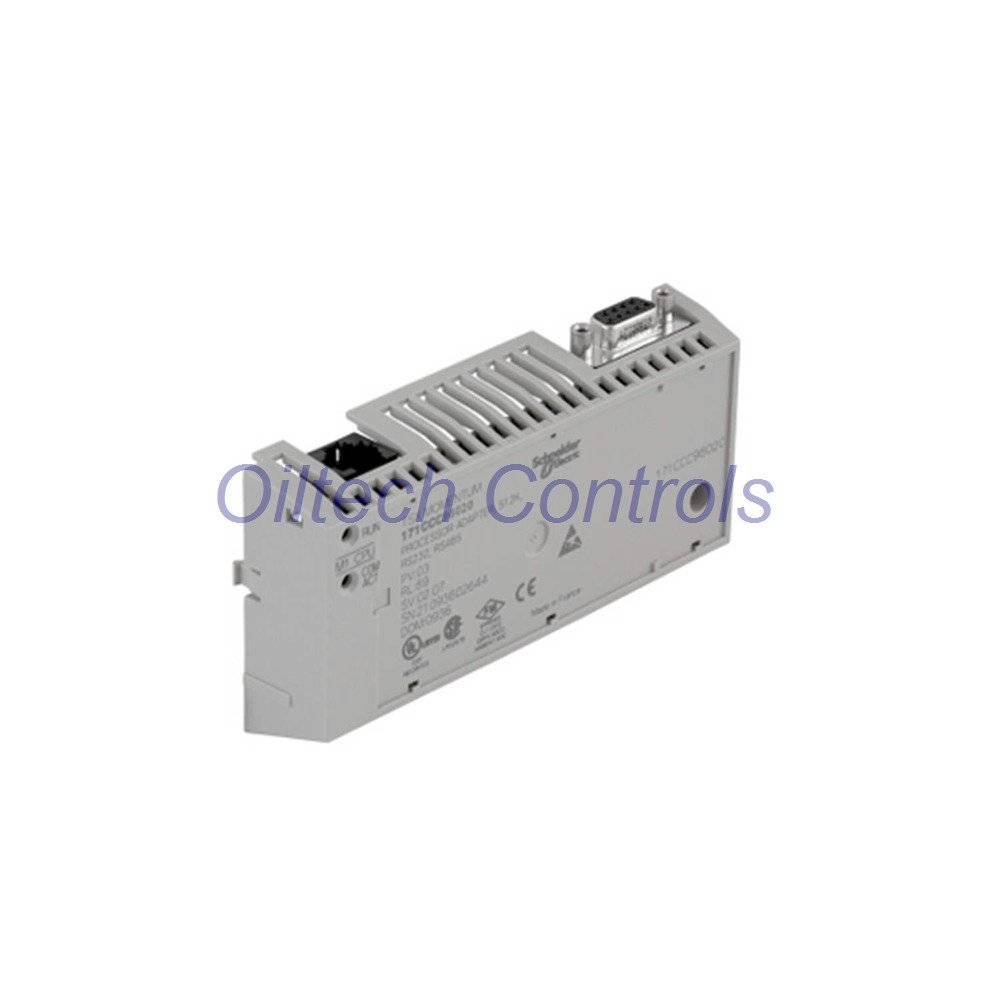

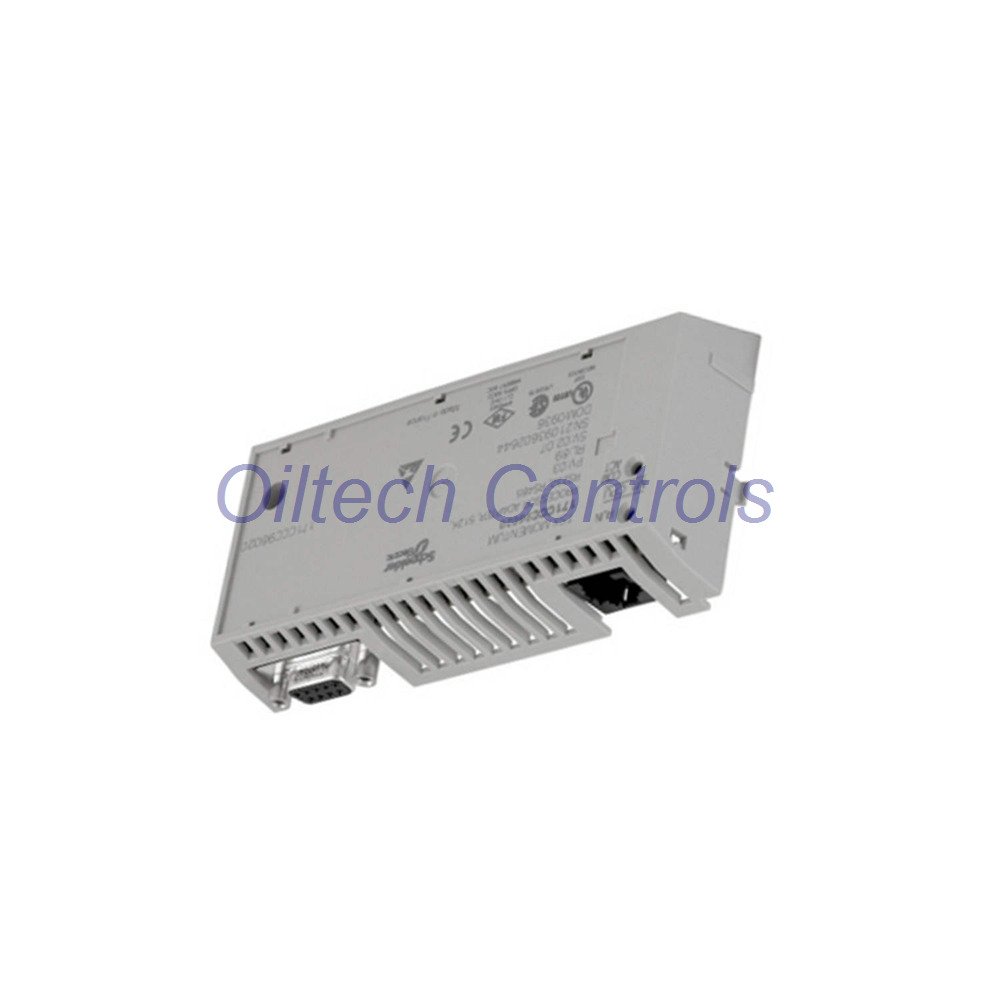

Schneider 171CCC96020 Modicon Momentum Ethernet Processor

Product Snapshot – Schneider Electric 171CCC96020

• Model: 171CCC96020
• Platform: Modicon Momentum
• Type: M1/M1E Processor Adapter
• CPU: X86 based, 50 MHz
• Communication: Ethernet + I/O Bus
• Design: Compact, panel mounted

Built for Fast Industrial Control

• Scan time only 0.3 ms per KB.
• 1 ms per 1K instruction execution.
• Handles 8,192 discrete I/O points.
• Supports 26,048 register words.
• Stable Ethernet data exchange.
• Transparent Ready architecture.
• Reliable for Class B10 automation level.

Memory & Processing Structure

• Flash Memory: 512 KB.
• RAM: 544 KB.
• Program Memory: 18 KB LL984.
• Data Memory: 24 KB.
• Word Length: 16 bit.
• Clock Speed: 50 MHz.

Communication & Network

• 1 Ethernet port.
• 1 I/O bus port.
• Protocol: Ethernet TCP/IP.
• Supports Modbus TCP messaging.
• Web page loader tool included.
• Rack viewer and data editor tools.

Power & Electrical Data

• Rated Supply: 5.0 V DC ±5%.
• Powered by Momentum I/O base.
• I/O words per drop: 128 Concept.
• I/O words per drop: 80 ProWORX.
• Electrical isolation between bus sections.

Environmental Performance

• Operating Temperature: 0…60°C.
• Storage Temperature: -40…85°C.
• Humidity: 5…96% non-condensing.
• Altitude: Up to 2000 m.
• Shock Resistance: 15 gn.
• Vibration: 1 gn industrial grade.
• Protective Treatment: TC coated.

Compliance & Certification

• CE Marked.
• UL Listed.
• cUL Approved.
• FM Class 1 Division 2.
• NEMA Type 250 compliant.

Configuration Tree – 171CCC96020 Code Logic

• 171
  • Momentum automation family
• CCC
  • CPU communication controller
• 960
  • Ethernet processor class
• 20
  • Standard dual-port configuration

Application Scope

• Water treatment control panels.
• Small to mid PLC automation.
• Distributed I/O systems.
• Remote Ethernet monitoring.
• Machine data acquisition.

Installation Advice

• Mount on Momentum I/O base.
• Keep airflow around module.
• Use shielded Ethernet cable.
• Avoid moisture exposure.

Warranty & Shipping

• 12 Months Warranty.
• Factory tested before delivery.
• Fast shipping via FedEx, UPS, DHL.

Professional FAQ

• How many I/O points can this CPU handle safely?
• Up to 8,192 discrete I/O. Plan load below 90% for stability.

• Is this module suitable for hazardous areas?
• Yes. It holds FM Class 1 Division 2 approval.

• How to choose between Momentum and Modicon Quantum?
• Choose Momentum for compact systems. Choose Quantum for large racks.

• Can it run without Ethernet connection?
• Yes. Local I/O bus still operates normally.

• What improves long term stability?
• Keep temperature below 50°C. Use clean power supply.
