Product Overview – Schneider Electric ABFM16H300

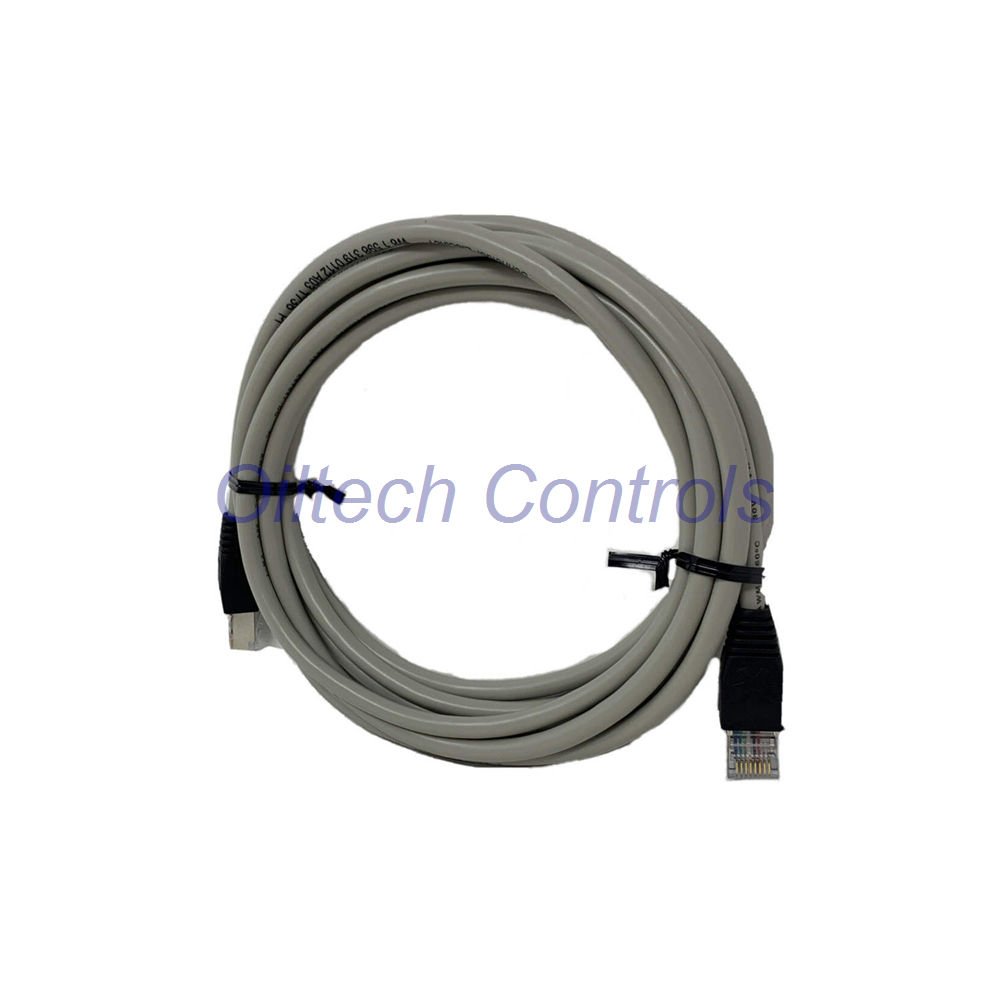

The ABFM16H300 is a 16-channel relay I/O cabled connector.
It is designed for Modicon Quantum systems. It offers a 3 meter shielded cable.
Core Technical Data
- Manufacturer: Schneider Electric
- Model: ABFM16H300
- Product type: Cabled connector
- Series: Modicon Quantum
- Channels: 16 relay I/O
- Cable length: 3 meters
- Connector type: HE10
- Number of ways: 14 ways
- Electrical connection: 1 main connector
- Wire gauge: AWG 22
- Wire section: 0.324 mm²
- Voltage rating: 250 V
- Current rating: 2 A
- Operating temperature: -20 °C to +60 °C
- Insulation: PVC
- Cable type: Multi-conductor shielded
- Weight: 0.55 kg
- UPC: 785901446569
Extended Electrical Performance
- Dielectric strength: 1500 Vac
- Contact resistance: ≤20 mΩ
- Insulation resistance: ≥100 MΩ
- Shield coverage: ≥85%
- Flame resistance: IEC compliant PVC
- Vibration resistance: Industrial grade
- EMI noise reduction: Shielded structure
Design Advantages
- Pre-assembled cable saves wiring time
- Reduces field wiring errors
- Strong PVC jacket resists oil and dust
- Flexible cable for cabinet routing
- Stable signal under heavy load
- Compact and easy to install
Application Scope
- PLC relay output expansion
- Industrial control panels
- Motor starter systems
- Process automation cabinets
- Factory production lines
Installation Guidance
- Confirm compatibility with Quantum relay modules
- Avoid sharp cable bending
- Keep cable away from high voltage lines
- Secure connector firmly to avoid vibration issues
- Check grounding for shield effectiveness
Quality and Logistics
- 12 months warranty from shipment date
- New and factory packed
- Fast shipping via FedEx, UPS, DHL
- Secure export packaging
Professional FAQ
- Is ABFM16H300 compatible with all Quantum relay modules?
- It matches standard relay I/O modules in the Quantum family.
Always confirm pin layout before order. - Can I extend the cable beyond 3 meters?
- Extension is not recommended.
Longer cables may reduce signal stability. - How do I select between shielded and non-shielded cables?
- Choose shielded in high EMI areas.
It improves signal reliability. - What is the best practice for long-term use?
- Keep cable dry and avoid tight bends.
Check connectors during yearly maintenance. - How do I ensure correct model selection?
- Verify channel count, connector type, and voltage rating.
Match 16-channel relay requirement before purchase.
