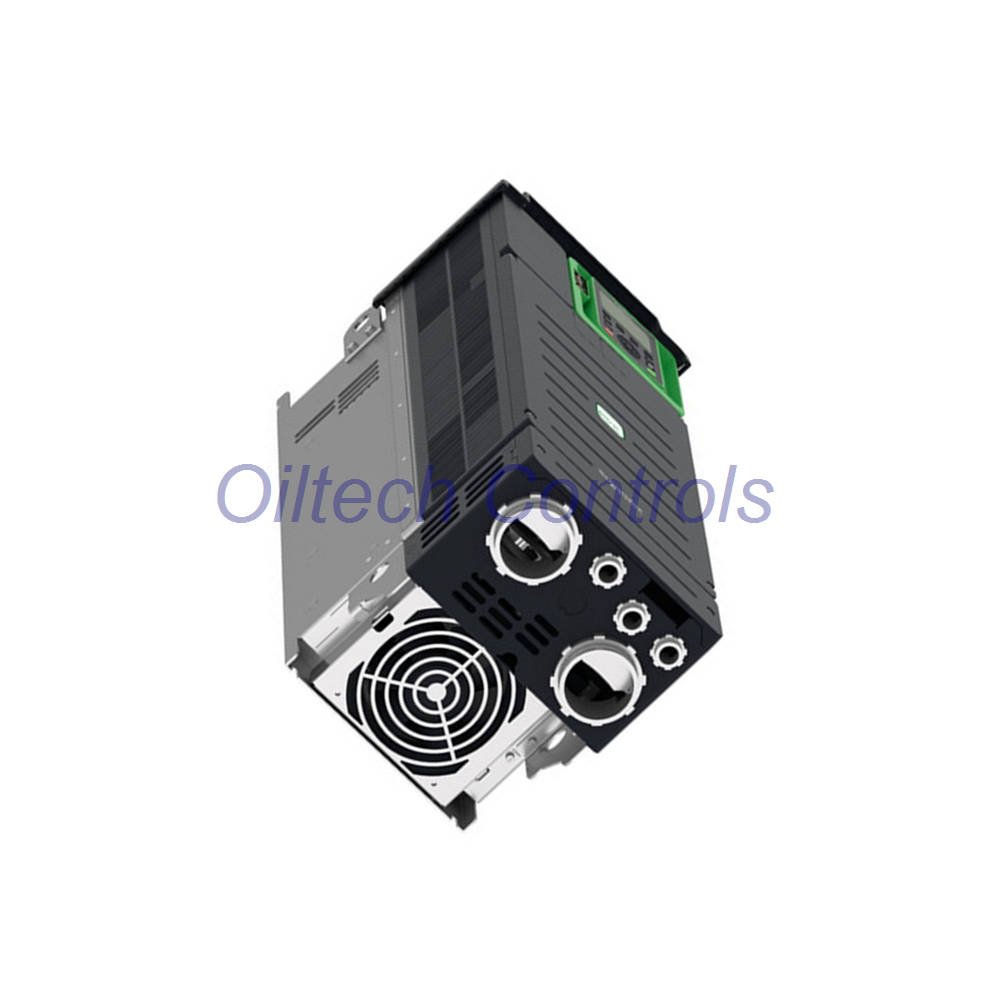

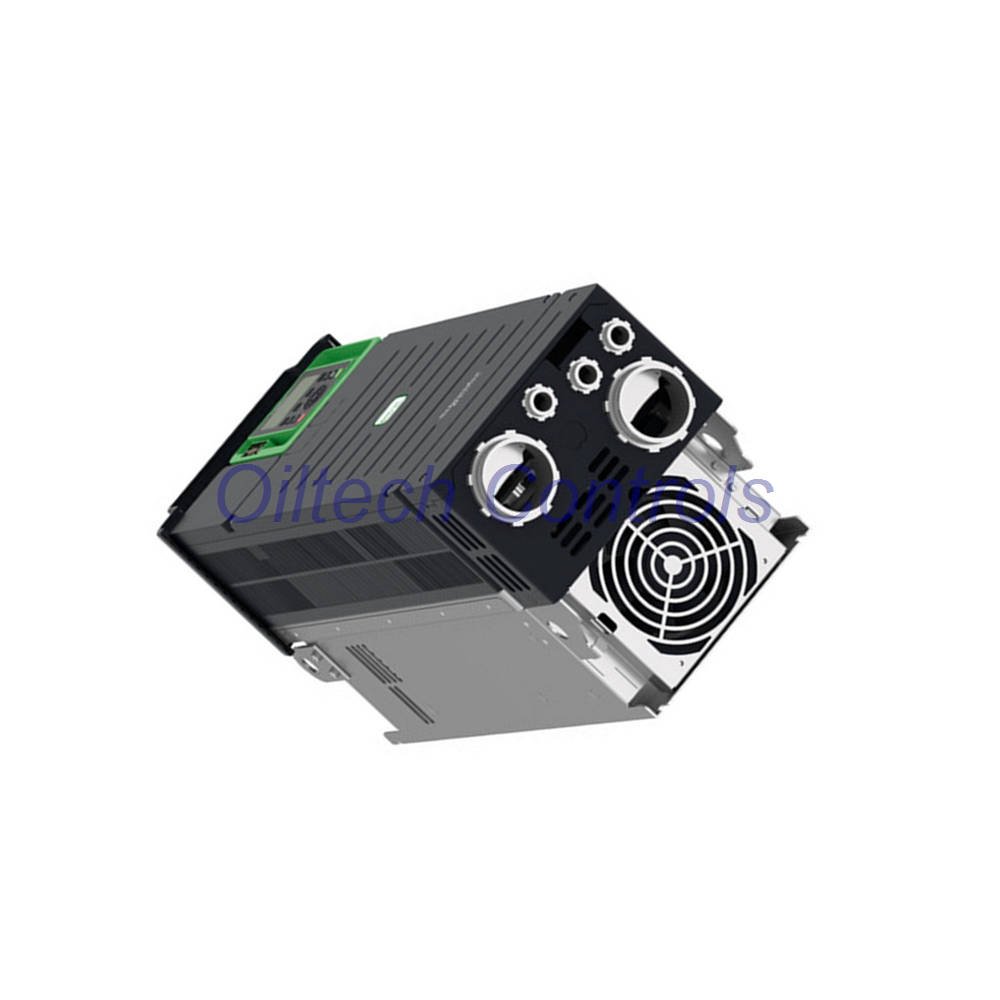

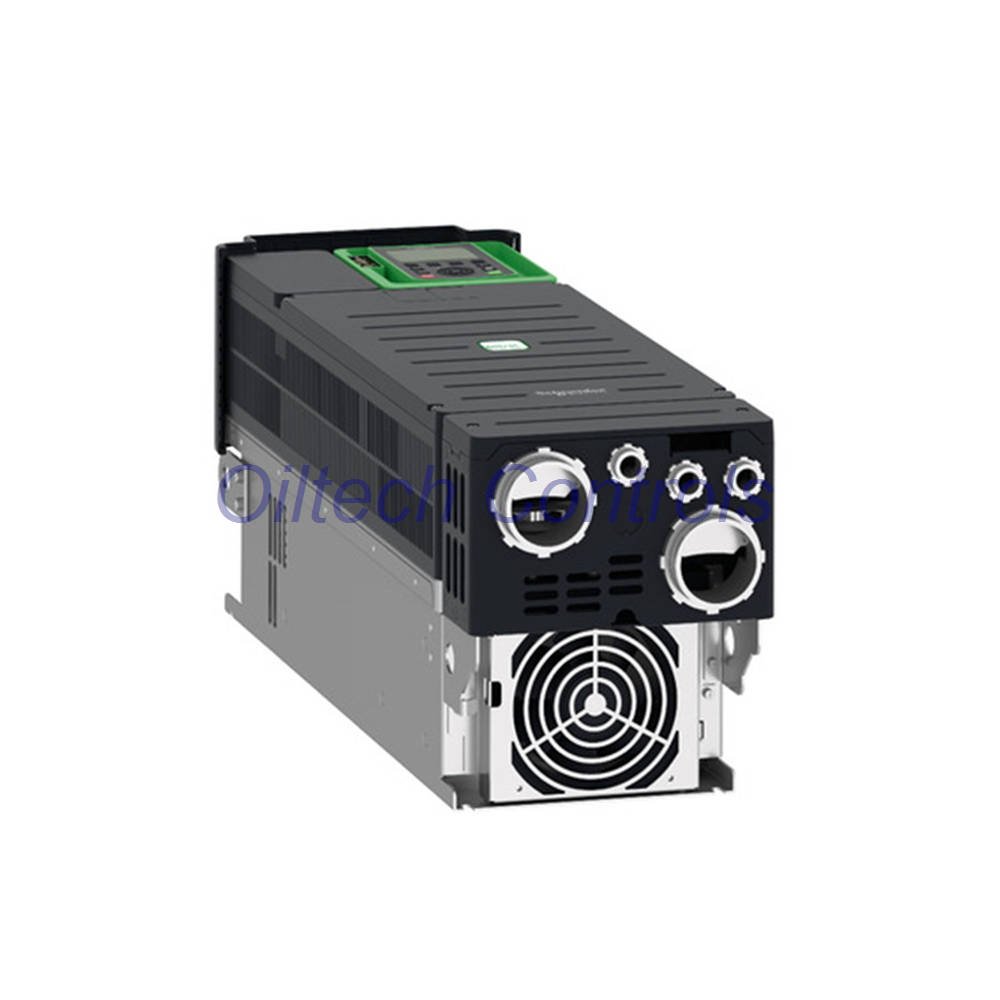

Product Overview
- ATV930D37N4 is a high power industrial drive.
- Built for process control and heavy industrial systems.
- Part of Altivar Process ATV900 series.
- Supports both asynchronous and synchronous motors.
- Integrated braking unit improves stopping performance.
- Stable control for pumps, compressors, and conveyors.
Core Advantages
- 37 kW high power output for demanding loads
- Supports 4-quadrant operation
- Wide frequency range up to 599 Hz
- High overload capacity for dynamic systems
- Built-in PID for process control
- Strong EMC performance for noisy environments
Technical Highlights
- Voltage Range: 380–480 V AC
- Output Current: 74.5 A (normal duty)
- Switching Frequency: 2–16 kHz
- Peak Current: 89.4 A for 60 seconds
- Frequency Accuracy: ±0.1%
- Analog Resolution: 12-bit input / 10-bit output
- Linearity: ±0.15% input
- Response Time: 1 ms input sampling
- Temperature Range: -15°C to 50°C
- Humidity Range: 5–95% non-condensing
- Noise Level: 71.5 dB
Configuration Breakdown
- ATV
- Variable speed drive family
- 930
- Process series for advanced control
- D37
- Rated power 37 kW
- N4
- 380–480 V three-phase supply
Control & Performance
- Sensorless vector and optimized torque modes
- Supports permanent magnet motors
- Adjustable ramps from 0.01 to 9999 seconds
- Automatic motor slip compensation
- Fast dynamic response for load changes
Communication & Expansion
- Built-in Modbus TCP and Ethernet/IP
- RS485 Modbus serial support
- Optional modules: PROFINET, EtherCAT, CANopen
- Expandable I/O and encoder interfaces
Protection & Safety
- Safe Torque Off (STO) included
- Overvoltage and undervoltage protection
- Motor thermal protection
- Short-circuit and overload protection
- Safe Stop 1 (SS1) supported
Installation & Setup
- Wall-mounted design saves floor space
- Vertical installation recommended
- Clear terminal layout for wiring
- Supports quick commissioning via display
Typical Applications
- Water treatment systems
- Oil and gas processes
- Industrial HVAC systems
- Heavy conveyors and mixers
- Process automation lines
Packaging & Delivery
- 1 × ATV930D37N4 drive unit
- Installation manual included
- Secure industrial packaging
- Shipping via FedEx, UPS, DHL
Warranty
- 12-month warranty
- Technical support available
FAQ
- Can this drive run continuously at full load?
- Yes, under normal duty conditions.
- Is this model suitable for pump control?
- Yes, built-in PID supports process control.
- How to select between normal and heavy duty?
- Choose based on load type and overload demand.
- Does it support network integration?
- Yes, supports Ethernet and industrial protocols.
- What is the best cooling method?
- Ensure airflow and avoid enclosed heat buildup.
