Product Introduction

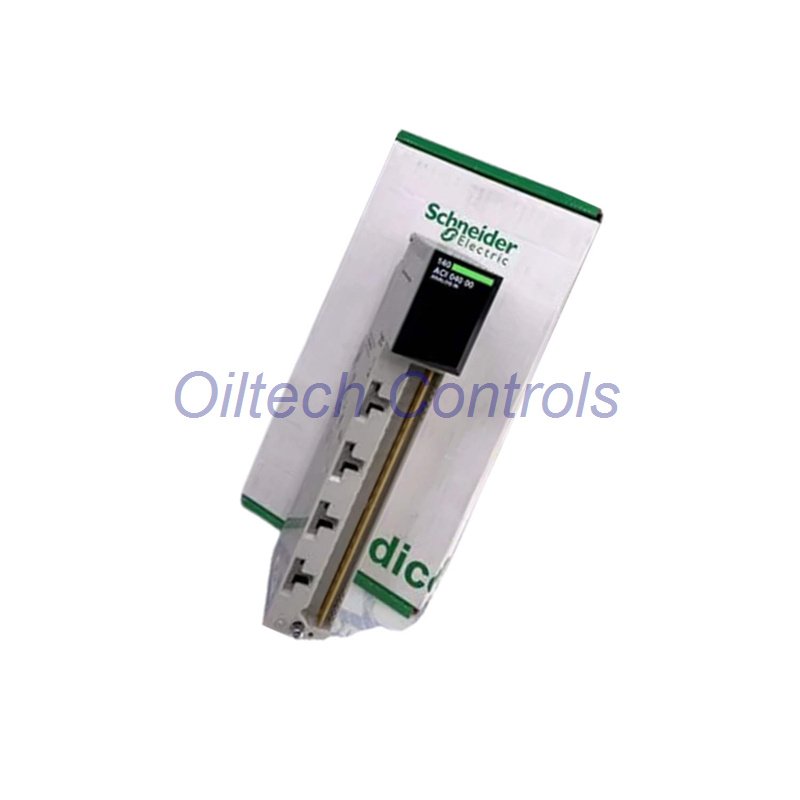

The Schneider Electric 140ACI05100SC is a 32-point input module for the Modicon Quantum platform.
It delivers accurate signal capture for demanding industrial control systems.
This module is built for precision, stability, and long service life.
Why Choose This Module
- High point density saves rack space.
- Flexible resolution fits different control needs.
- Strong isolation protects system electronics.
- Stable accuracy improves process quality.
- Reliable operation in harsh environments.
Input and Measurement Performance
- Total input points: 32.
- Selectable resolution: 12-bit or 16-bit.
- Measurement accuracy: ±0.1 to ±0.2 percent.
- Consistent results across all channels.
Electrical Isolation
- Channel-to-channel isolation: typically 500 V DC.
- Channel-to-backplane isolation: typically 1500 V DC.
- Improves noise resistance.
- Protects CPU and I/O bus.
Environmental Capability
- Operating temperature: 0 to 60 °C.
- Storage temperature: -40 to 85 °C.
- Relative humidity: 5 to 95 percent.
- No condensation allowed.
Mechanical and Installation Details
- Mounting options: DIN rail or panel.
- Compact module design.
- Weight: approximately 0.91 kg.
- Easy access wiring terminals.
System Compatibility
- Designed for Modicon Quantum racks.
- Works with Quantum CPUs and power supplies.
- Ideal for system expansion.
- Supports retrofit projects.
Typical Applications
- Process measurement systems.
- Industrial automation panels.
- Energy and utilities monitoring.
- Manufacturing data acquisition.
Warranty and Shipping
- Standard warranty period: 12 months.
- Carefully packed for safe transport.
- Shipping options: FedEx, UPS, DHL.
Professional FAQ
- When should I choose 16-bit resolution?
- Use it for high accuracy and fine signal detail.
- Is this module suitable for noisy plants?
- Yes. High isolation improves noise immunity.
- How do I confirm compatibility?
- Check the Modicon Quantum rack model.
- Does channel isolation matter in practice?
- Yes. It prevents cross-channel interference.
- Is this module good for upgrades?
- Yes. It fits existing Quantum systems.
