Product Overview: Safety Control Processor

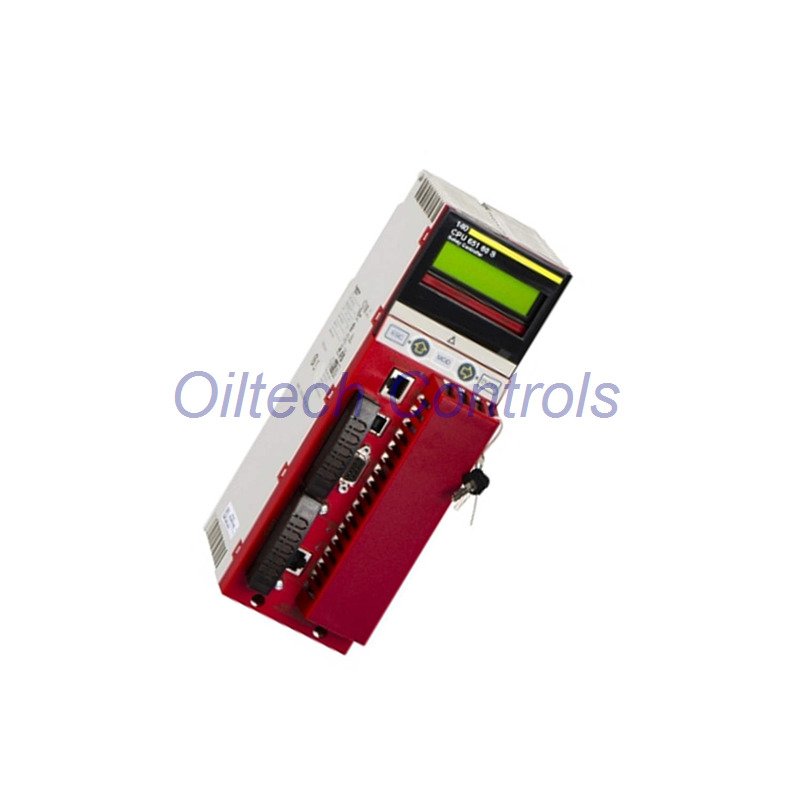

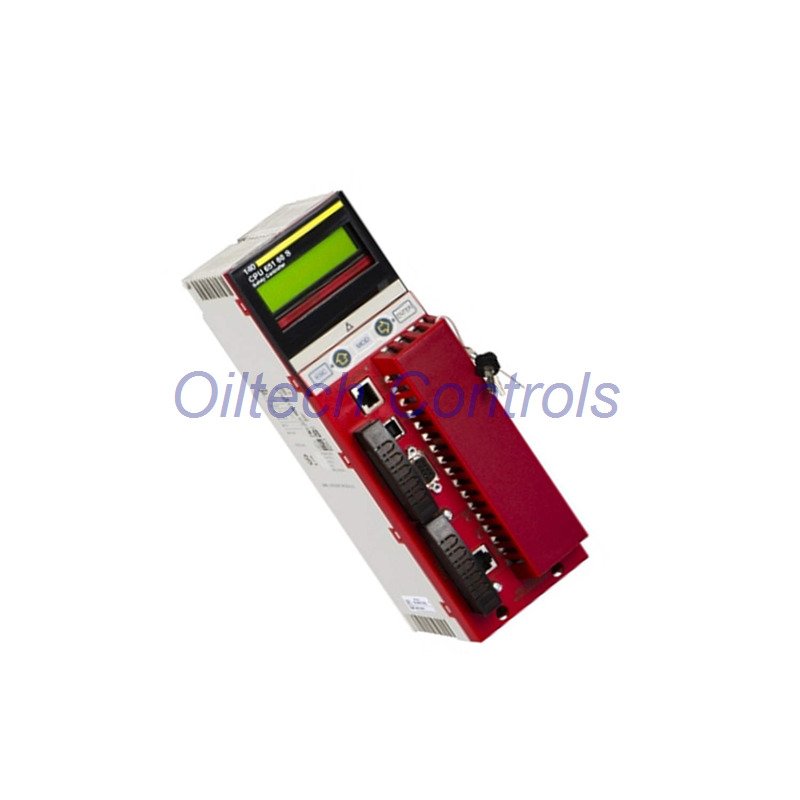

The Schneider Electric 140CPU65160S is a powerful safety CPU. It is the brain for Modicon Quantum control systems. This processor is certified for SIL3 safety applications. It manages complex automation and safety logic reliably.
Core Features & Benefits
- High Safety Level: TÜV Rheinland certified for SIL3 applications.
- Fast Processing: 266 MHz clock speed for quick response.
- Strong Connectivity: Built-in Ethernet, Modbus, USB, and Modbus Plus ports.
- Large Capacity: Controls up to 31 remote I/O stations and thousands of I/O points.
- Expandable Memory: 1024 kB internal RAM, expandable with PCMCIA cards.
Detailed Technical Specifications
- Brand & Model: Schneider Electric 140CPU65160S
- Product Type: Unity Safety Processor (CPU).
- Clock Frequency: 266 MHz.
- Internal Memory: 1024 kB RAM.
- Expandable Memory: Up to 7168 kB with PCMCIA card.
- Execution Speed: 0.09 µs per word instruction.
- Local I/O Capacity: Up to 13 slots (discrete), 26 slots (analog).
- Remote I/O Capacity: 31 stations, 31,744 discrete I/O points.
- Integrated Ports: 1 Ethernet, 1 Modbus, 1 Modbus Plus, 1 USB.
- Max Optional Modules: 6 Ethernet communication modules.
- Display: 2-line, 16-character LCD screen.
- Battery: Integrated lithium, 10-year life.
- Bus Current: 2760 mA requirement.
- Safety Certification: SIL3 (TÜV Rheinland), CSA HazLoc.
- Operating Temp: 0°C to 60°C.
Warranty & Delivery
- This CPU includes a 12-month warranty.
- Fast international shipping via FedEx, UPS, and DHL.
Frequently Asked Questions
What is the main difference from a standard CPU?
This CPU is designed and certified for Safety Instrumented Systems (SIS) up to SIL3. It runs dedicated safety logic alongside standard control.
What software is required to program it?
You need Unity Pro XL Safety software to configure the safety functions and standard control logic.
Can I use it in a hot standby system?
Yes, the 140CPU65160S can be configured in a hot standby pair for high-availability applications, but local I/O is not allowed in that setup.
What is a key planning consideration?
Carefully calculate the total bus current requirement of all modules in the rack. This CPU requires 2760 mA, limiting the number of additional modules.
How do I choose this processor?
Choose the 140CPU65160S if you have a critical process requiring SIL2 or SIL3 safety certification and need a powerful Quantum processor.
