Product Overview

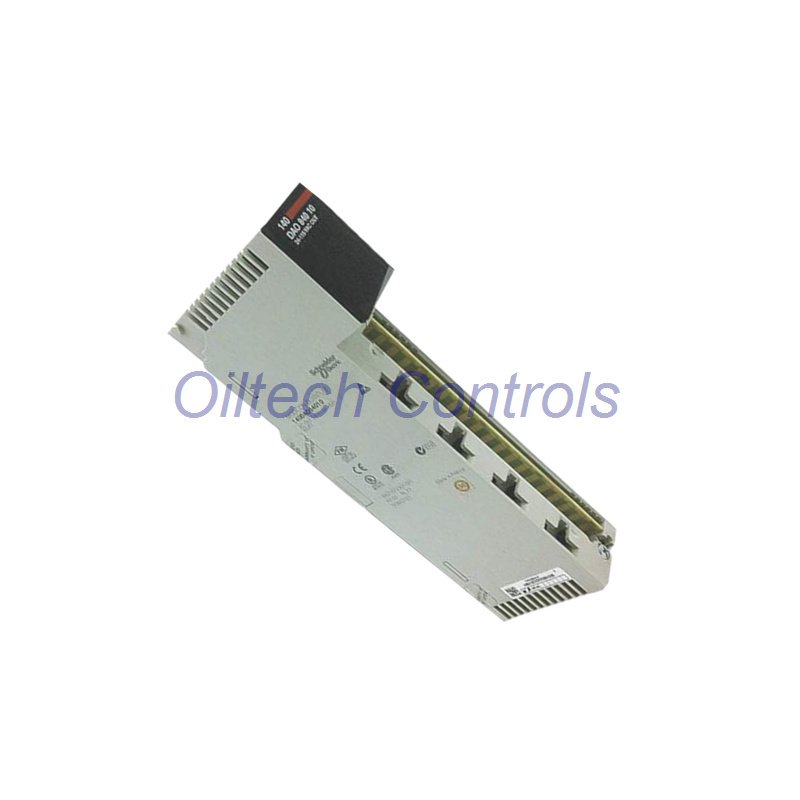

The 140DAO84010C from Schneider Electric is a Modicon Quantum AC discrete output module.
It delivers stable switching for industrial control systems.
It supports fast response and high electrical endurance.
Key Advantages
- Sixteen isolated outputs reduce fault spread.
- Wide AC voltage range fits many loads.
- High dv/dt supports fast signal change.
- Internal RC filter improves protection.
- Conformal coating increases service life.
Electrical Performance
- Output voltage range: 20 to 132 V AC.
- Supply frequency: 47 to 63 Hz.
- Response time: ≤ 0.5 ms.
- Maximum voltage drop: 1.5 V.
- Addressing: one output word.
Load and Switching Capacity
- Rated current: 4 A per point.
- Total module load: 16 A rms.
- Surge current: up to 30 A.
- Off-state leakage: as low as 1 mA.
- Associated fuse rating: 5 A.
System Integration
- Compatible with Modicon Quantum racks.
- Standard module format for easy fit.
- Bus current requirement: 350 mA.
- LEDs show channel and fault status.
Environmental Endurance
- Operating temperature: 0 to 60 °C.
- Storage temperature: -40 to 85 °C.
- Humidity tolerance: up to 95 percent.
- Operating altitude: up to 5000 m.
Certifications and Safety
- CE marked for global markets.
- Certified to UL 508 and CSA standards.
- FM Class 1 Division 2 approved.
- Strong EMC immunity performance.
Typical Applications
- Industrial automation panels.
- Process control output switching.
- Power and utility systems.
- Factory and plant control logic.
Packaging and Delivery
- Supplied as one sealed module.
- Industrial protective packaging.
- Shipping via FedEx, UPS, DHL.
Warranty Policy
- 12-month warranty included.
- Covers normal industrial operation.
- Support available during warranty.
FAQ
- Is this module suitable for high-speed outputs?
- Yes, its fast response supports dynamic loads.
- How do engineers protect outputs in the field?
- They size loads below rated limits.
- Does conformal coating matter?
- It helps in humid or dusty areas.
- Can this replace older Quantum output cards?
- Yes, when voltage and load match.
- How should buyers choose AC output modules?
- Check voltage, current, and response needs.
