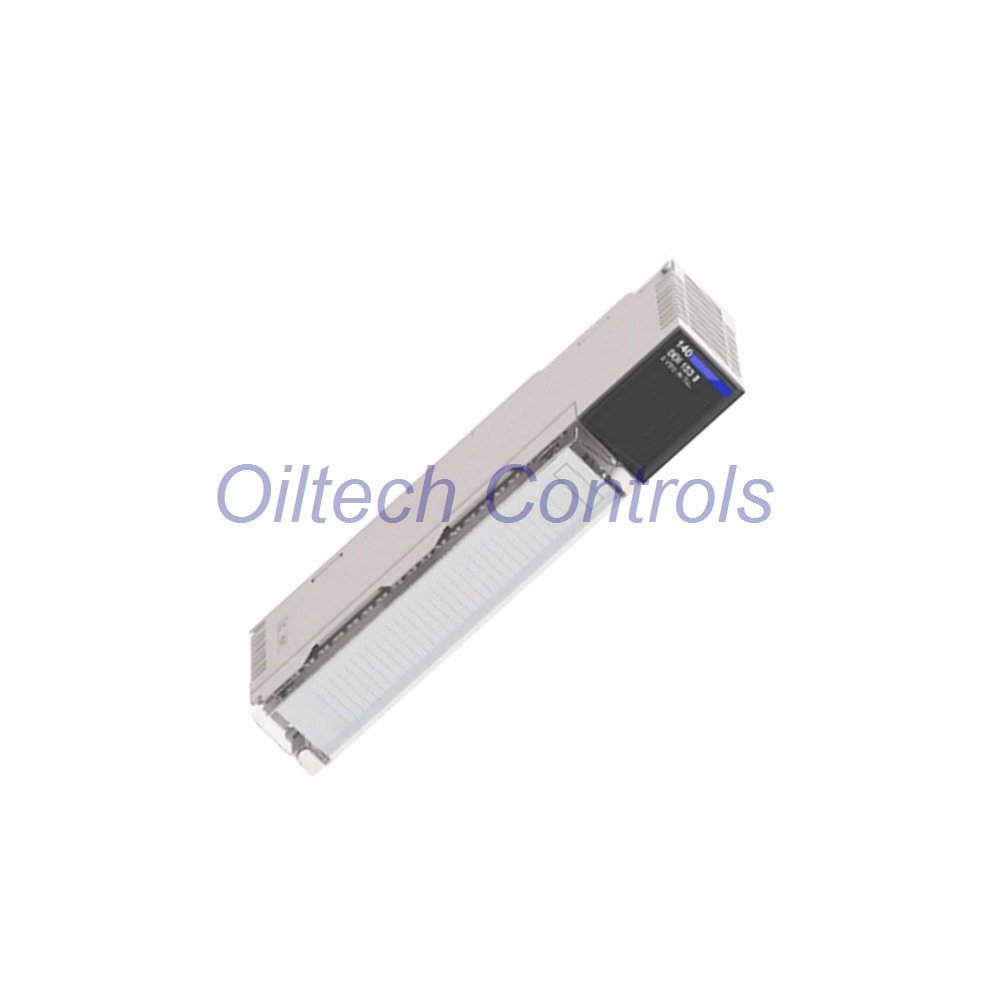

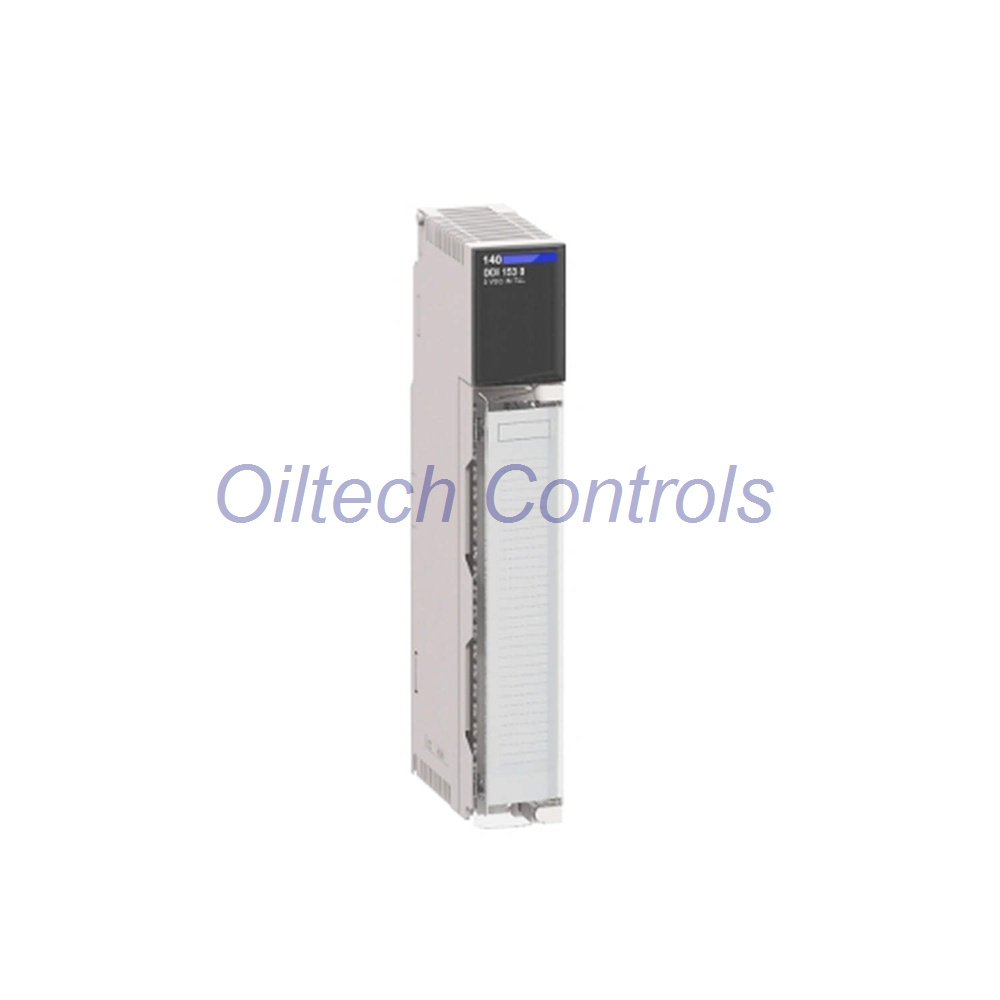

Schneider Electric 140DDI35300C Discrete Input Module Overview
The Schneider Electric 140DDI35300C is a 32-channel discrete input module built for the Modicon Quantum automation platform. It supports stable 24V DC signals and delivers fast and safe input processing for industrial control systems. The module is compact, reliable, and easy to install in demanding environments.
Core Technical Specifications
- Manufacturer: Schneider Electric
- Model: 140DDI35300C discrete input module
- Platform: Modicon Quantum
- Total inputs: 32 discrete channels
- Channel groups: 4 isolated groups
- Rated input voltage: 24 V DC
- Voltage range: 19.2…30 V DC
- Input impedance: 2500 Ohm
- Response time: ≤ 1 ms
- Power dissipation: 1.7 W typical
- Isolation between groups: 500 Vrms
- Operating temperature: 0…60 °C
- Storage temperature: -40…85 °C
Extended Performance Data
- Voltage state 1: 15…30 V DC guaranteed
- Voltage state 0: -3…5 V DC guaranteed
- Current state 1: ≥ 2 mA
- Current state 0: ≤ 0.5 mA
- Absolute max input: 30 V continuous
- Pulse tolerance: 56 V for 1.3 ms
- Bus current requirement: 330 mA
- ESD resistance: up to 8 kV air
- EM field resistance: 10 V/m
- Humidity tolerance: 95% non-condensing
- Operating altitude: up to 5000 m
Key Product Features
- High density 32-point input saves panel space
- Fast 1 ms switching improves control speed
- Strong electrical isolation increases safety
- LED status indicators for easy diagnostics
- Conformal coating protects from moisture
- Certified for global industrial standards
- Compact 0.3 kg design for simple mounting
Industrial Benefits and Applications
- Ideal for PLC input signal collection
- Stable work in harsh factory conditions
- Supports automation and process control
- Reduces wiring complexity and maintenance time
- Ensures accurate signal detection
Warranty and Shipping
- 12-month warranty included
- Fast worldwide shipping via FedEx, UPS, and DHL
- Secure packaging for industrial transport
Professional FAQ
- How do I choose the right input module for my PLC rack?Check voltage compatibility first. Match channel count with system needs. Confirm isolation level for safety. Select fast response modules for motion tasks.
- Can this module handle noisy industrial signals?Yes. It has strong EM resistance and isolation. The coating adds extra protection in harsh sites.
- What is the best wiring practice for stable inputs?Use shielded cables. Keep signal and power lines apart. Ground the system correctly.
- Is this module suitable for high-altitude sites?It works up to 5000 m altitude. Check cabinet airflow and cooling during installation.
- What should I inspect before installation?Verify supply voltage. Inspect connectors and wiring. Confirm rack compatibility. Test LEDs after power-on.
