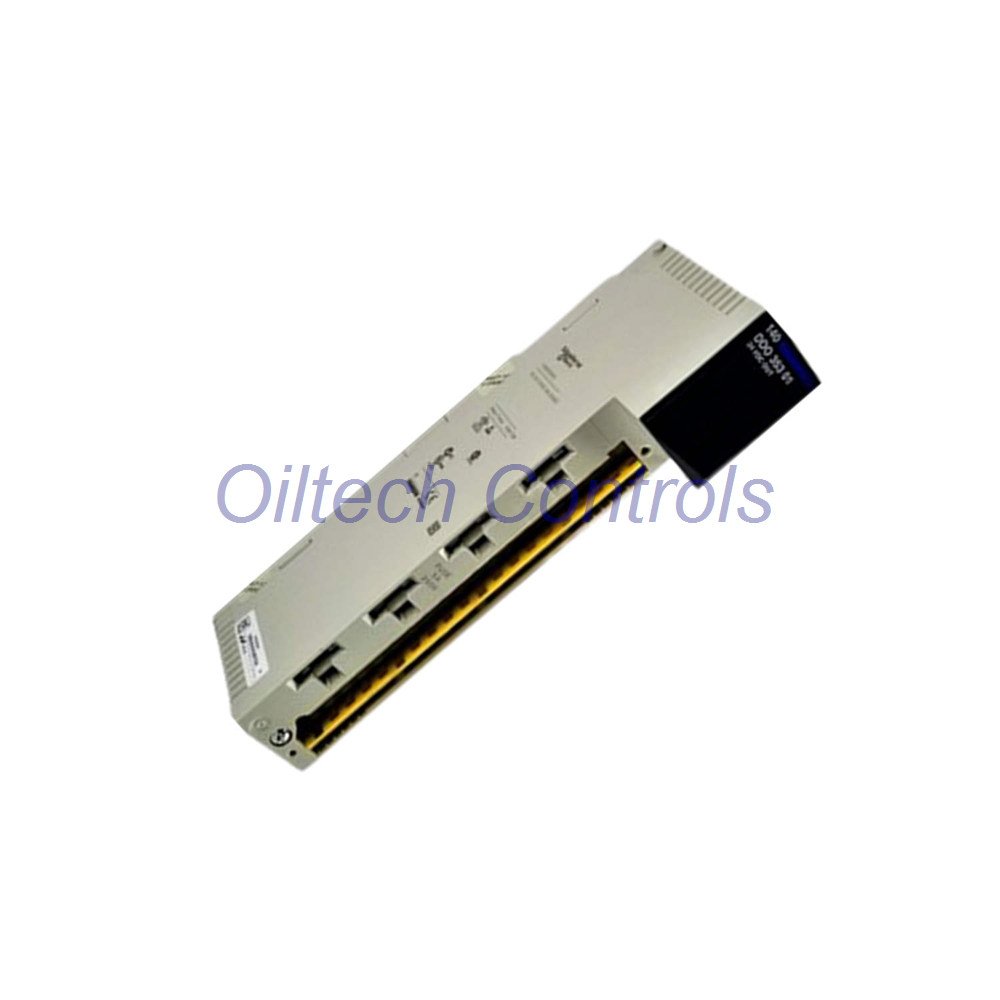

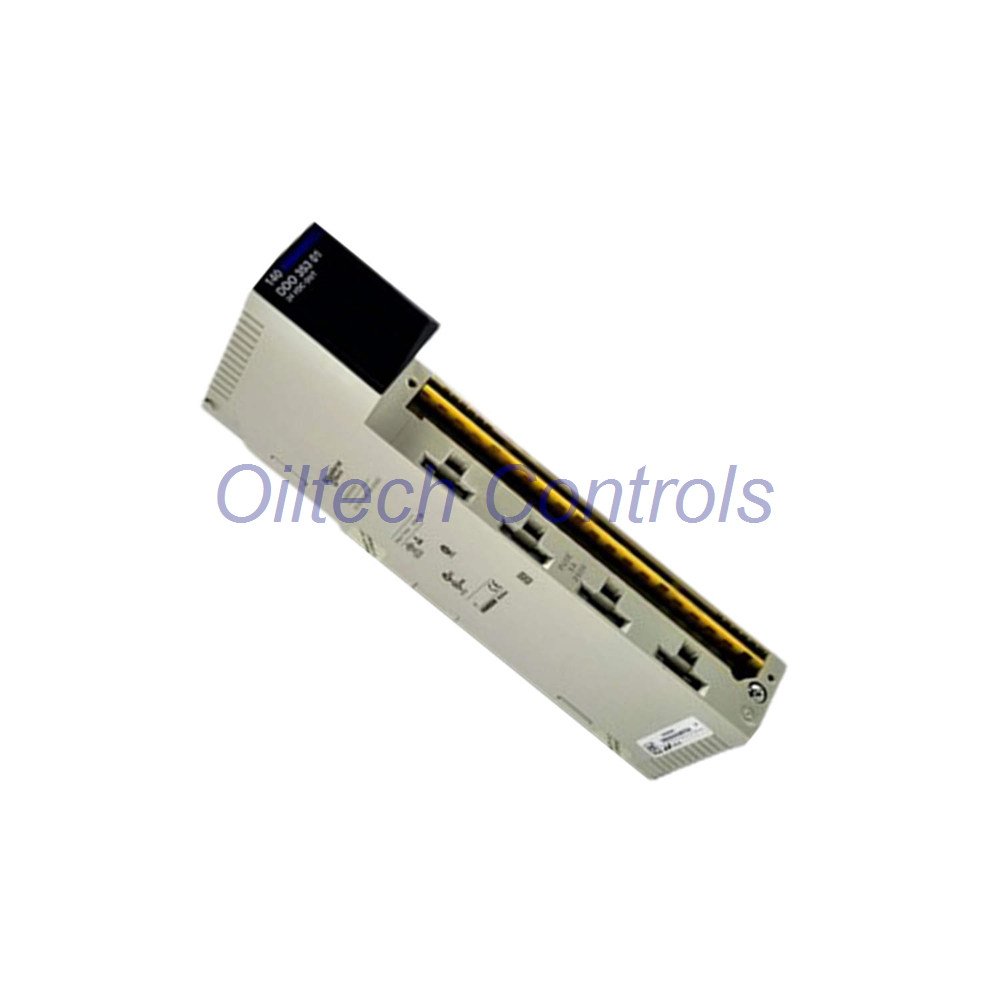

Schneider Electric 140DDO35301C Modicon Quantum Output Module | 32-Channel 24 VDC

Schneider Electric 140DDO35301C: 32 Smart Outputs in One Slot

The Schneider Electric 140DDO35301C gives you 32 source outputs in a single Modicon Quantum slot. Each channel runs at 24 V DC with fast switching. Conformal coating protects against moisture and dust. Built for machines that run 24/7.

Why This Output Module Works Harder

• 32 positive-logic outputs – drives solenoids, lights, contactors directly
• 16 A per module total load capacity
• 4 A per group – 8 channels share one fuse
• Blown fuse LED per group – find faults in seconds
• Conformal coating – resists humidity, vibration, chemical exposure
• 0.1 ms turn-off time – fastest in Quantum family

Technical Specifications (Hard Facts)

• Brand: Schneider Electric
• Model: 140DDO35301C
• Series: Modicon Quantum
• Type: 24 VDC Discrete Output Module
• Outputs: 32 channels, source (positive logic)
• Voltage: 19.2 to 30 VDC nominal 24 V
• Max load: 16 A per module, 4 A per group
• Surge current: 2 A per point
• Response time: ON 1 ms, OFF 0.1 ms
• Fuse protection: 5 A per group, 3 A per point
• Power dissipation: 5 W
• Bus current: 330 mA
• Isolation: 1780 Vrms channel-to-bus
• Coating: Humiseal 1A33 conformal coating
• Temperature: 0 to 60°C operation
• Weight: 0.45 kg (0.99 lb)
• EAN: 3595862015325

Installation (Three Simple Steps)

• 1. Insert module into any Quantum I/O slot
• 2. Wire field devices to removable terminal block
• 3. Address module in Concept, Unity Pro, or Control Expert
• LED check: Green = output on, Red = fuse blown
• No special tools. Standard screwdriver only.

Where It Runs Best (Real Jobs)

• High-speed sorting lines – 0.1 ms OFF time prevents missed counts
• Marine and offshore panels – conformal coating stops salt damage
• Automotive assembly stations – drives multiple solenoids per group
• HVAC control in industrial buildings
• Water treatment chemical dosing systems

Diagnostics & Smart Alerts

• 32 green LEDs: One per output – live status at glance
• 1 red LED (F): Lights when any group fuse is open
• 1 green LED (Active): Bus communication OK
• Fuse location: External 5 A fuse per group – user-replaceable
• Loss of field power: Detected and reported to CPU

Frequently Asked Questions (Real Answers)

• Can 140DDO35301C drive 24 VDC relays directly?Yes. Each output sinks 0.5 A continuous. Most relays draw 20-50 mA. Safe.
• What happens when a group fuse blows?Red F LED lights. All 8 outputs in that group stop. CPU sees module fault.
• Is conformal coating really necessary?In dry control rooms, no. In coastal plants, paper mills, food factories – yes. It prevents corrosion.
• Can I mix 24 V and 12 V loads on same module?No. All outputs share common voltage. Use same supply for all 32 points.
• Response time: 1 ms ON. Is that fast enough?For valves and contactors, yes. For high-speed counting, use OFF time 0.1 ms. Fast enough for 500 Hz.

Buying Guide & Field Experience

• Fuse selection tip:Module accepts 5 A per group. Use fast-blow fuses. Slow-blow may not protect outputs during short circuit.
• Spare module advice:Keep one 140DDO35301C on shelf. 32 outputs failure stops half your machine. Swap takes 2 minutes.
• Inductive load rule:Use flyback diode across DC relay coils. Without diode, turn-off voltage spike damages output transistor.
• Temperature derating:At 60°C, load all groups at 4 A? No. Derate to 3.2 A per group. Heat kills electronics.
• Our strong recommendation:Order with spare fuse kit. We include 10 fuses per group type. Small cost. Big downtime saver.

Package Contents

• 1 x Schneider Electric 140DDO35301C Output Module
• 1 x Removable terminal block (34-pin)
• 1 x Product information sheet
• 1 x Conformal coating certificate
• 1 x Factory test record
