Product Overview: Precision Analog Control

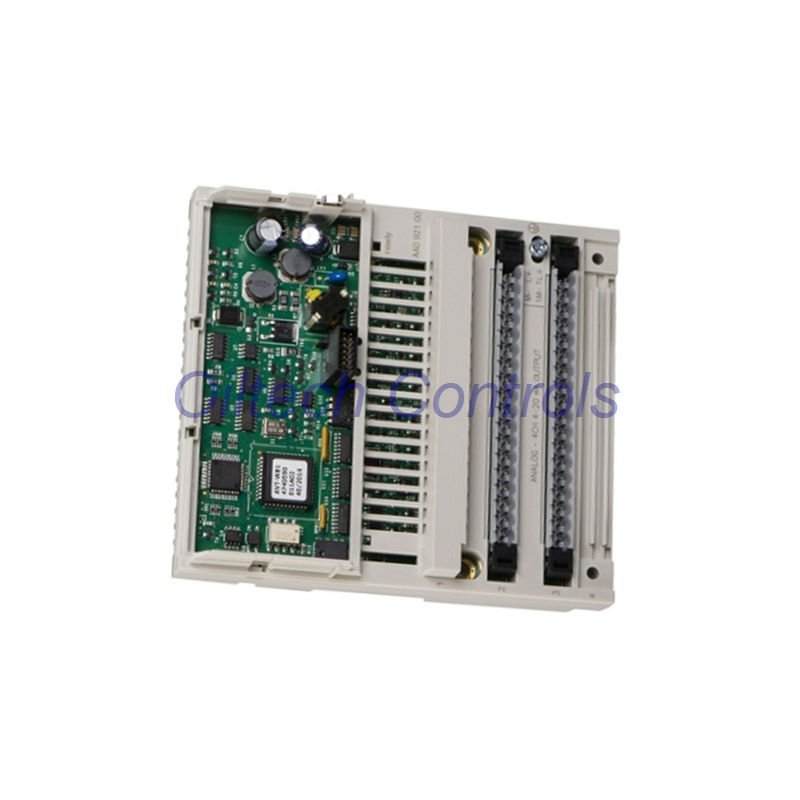

The Schneider Electric 170AAO12000 is a 4-channel analog output module. It is designed for the Modicon Momentum platform. This module converts digital signals from your PLC. It outputs precise analog signals to control field devices. Ideal for process control applications.
Technical Specifications
- Model: Schneider Electric 170AAO12000
- Channels: 4 Isolated Analog Outputs
- Signal Types: 0-20 mA Current / -10 to +10 VDC Voltage
- Resolution: 12-bit + sign
- Data Format: 16-bit
- Update Time: 2 ms (fast response)
- Max Load Cap: 1 μF per channel
- Power Dissipation: 8.5 W max
- Power Supply: 24 VDC
- Status LEDs: 4 (one per channel)
- Current Draw: 150 mA (actuator) / 530 mA (base)
- Weight: 0.215 kg
Key Features & Benefits
- Dual signal support for flexible application
- High 12-bit resolution for precise control
- Fast 2 ms update time
- Robust design for industrial environments
- Easy plug-and-play with Momentum systems
- Clear per-channel status indication
Package & Service Info
- Package: 1 x 170AAO12000 module, manual
- Warranty: 12-month manufacturer warranty
- Shipping: FedEx, UPS, DHL worldwide
- Delivery: Typically 3-7 business days
Frequently Asked Questions
- Q: When should I use current vs. voltage output?
- A: Use 4-20mA current for long-distance or noisy environments. Use voltage for short-distance simple controls.
- Q: Can I mix signal types on one module?
- A: No. All 4 channels must be the same type (all current or all voltage). Configure in software.
- Q: What if the status LED is off?
- A: Check 24V power and base connection. Verify channel configuration in your PLC program.
- Q: Is this compatible with my Momentum system?
- A: Yes. The 170AAO12000 works with standard Momentum bases. Check your CPU compatibility.
- Q: How do I claim the 12-month warranty?
- A: Contact us with your proof of purchase. We will guide you through the return or replacement process.
