Product Overview

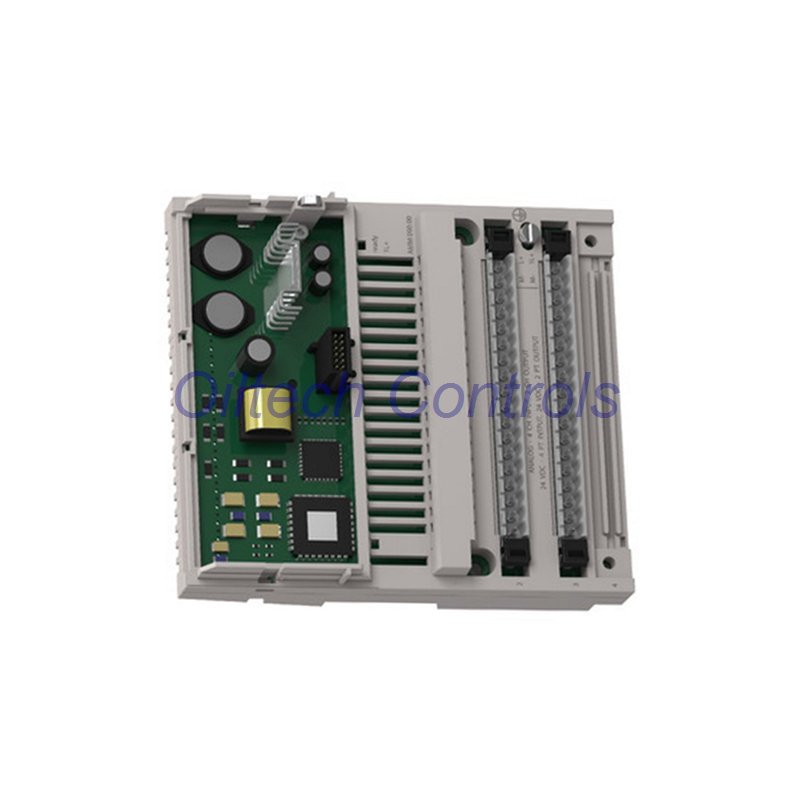

- The 170ANR12091 integrates digital and analog I/O within the Schneider Electric Modicon Momentum series.
- This I/O base unit supports distributed automation architectures while reducing panel wiring complexity.
- The design suits clean indoor industrial environments requiring reliable signal handling.
Core Functional Capabilities
- The module provides 8 discrete inputs and 8 discrete outputs for responsive digital control.
- It supports 6 analog inputs and 4 analog outputs for precise process measurement.
- Engineers use the 170ANR12091 to consolidate mixed signal control within a single I/O node.
Technical Specifications
- Brand: Schneider Electric
Manufacturer: Schneider Electric
Product Line: Modicon Momentum
Model: 170ANR12091 - Module type includes an integrated I/O base unit for distributed automation systems.
- Net weight remains approximately 1.00 lb, enabling easy mounting and transportation.
Environmental Performance
- Operating temperature range spans 0°C to 60°C for stable indoor operation.
- Storage temperature tolerance ranges from -40°C to 85°C.
- The unit withstands up to 95% relative humidity under non-condensing conditions.
- Maximum operating and storage altitude reaches 5000 meters above sea level.
Signal Stability and Reliability
- The internal design minimizes electrical interference in standard industrial control cabinets.
- Analog channels maintain consistent resolution and linearity for accurate control feedback.
- Digital channels deliver fast response times during continuous industrial operation.
Installation and Integration Guide
- Install the unit inside a clean indoor enclosure without corrosive chemicals or gases.
- Connect the base unit using compatible Modicon Momentum adapters and fieldbus modules.
- Apply proper grounding and cable separation to maintain long-term signal integrity.
Packaging and Logistics
- Each package includes one Schneider Electric Modicon Momentum I/O base unit.
- Available shipping methods include FedEx, UPS, and DHL for global delivery.
Frequently Asked Questions
- What applications suit this I/O base unit best?
- Industrial systems requiring combined analog measurement and digital control benefit most.
- How should I select the correct Modicon Momentum I/O model?
- Choose based on signal type, I/O count, and environmental operating requirements.
- Does the module support high-altitude installations?
- Yes, the unit operates reliably at altitudes up to 5000 meters.
