Product Overview

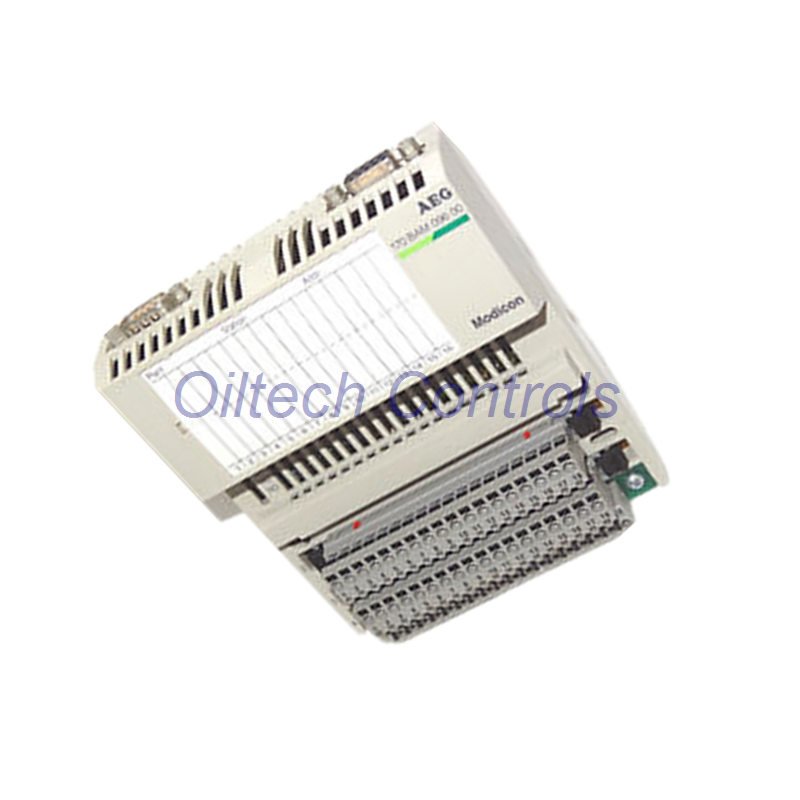

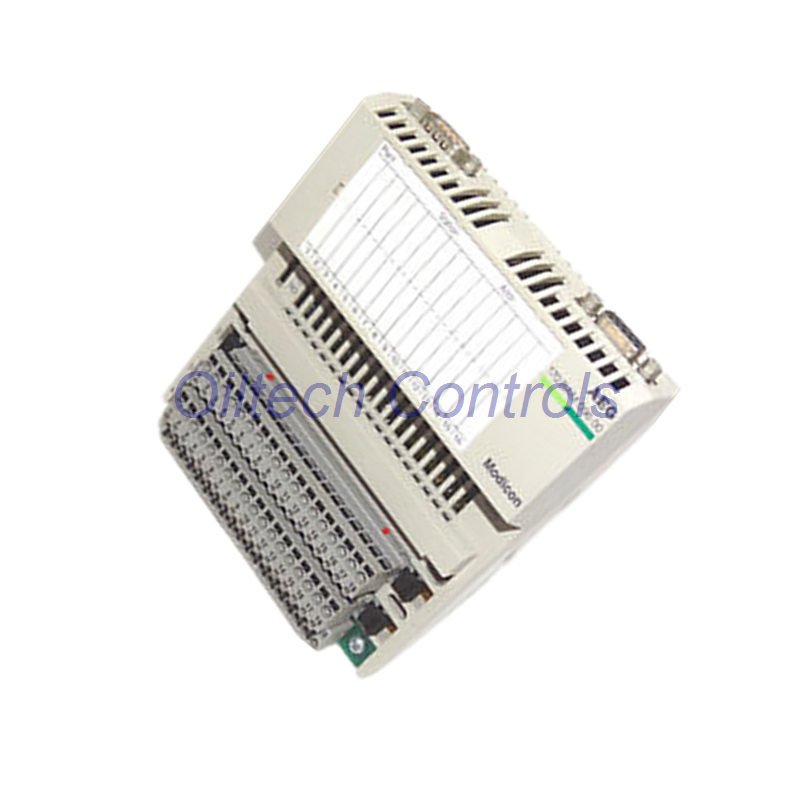

The Schneider Electric 170BAM09600 provides stable analog signal processing for Modicon Momentum automation systems.
Signal Range and Accuracy
- Supports 4–20 mA current signals for industrial sensors
- Accepts 0–10 V DC voltage signals
- Ensures reliable data transfer with low signal noise
I/O Channel Layout
- Includes 4 analog inputs for measurement tasks
- Provides 2 analog outputs for control commands
- Supports mixed input and output applications
Technical Profile
- Brand: Schneider Electric
- Series: Modicon Momentum
- Model: 170BAM09600
- Module type: Analog I/O
- Weight: Approx. 0.50 lb (0.23 kg)
Environmental Limits
- Operating temperature: 0°C to 40°C
- Operating humidity: Up to 80% RH, non-condensing
- Operating altitude: Up to 1000 m without derating
Installation Benefits
- Compact size saves control cabinet space
- Easy integration with Modicon Momentum bases
- Stable performance in clean indoor environments
Packaging, Warranty, Shipping
- Package includes one analog I/O module
- 12-month warranty from shipment date
- Shipping available via FedEx, UPS, and DHL
FAQ
- What systems commonly use this module?
- Process control and monitoring systems using analog sensors
- Why choose 4–20 mA signals?
- They offer better noise resistance over long cable distances
- Can this module replace older Momentum analog units?
- Yes, it fits existing Modicon Momentum architectures
- What warranty applies to this product?
- A standard 12-month warranty is included
- Which shipping methods are available?
- FedEx, UPS, and DHL options are available worldwide
