Quick Product Insight

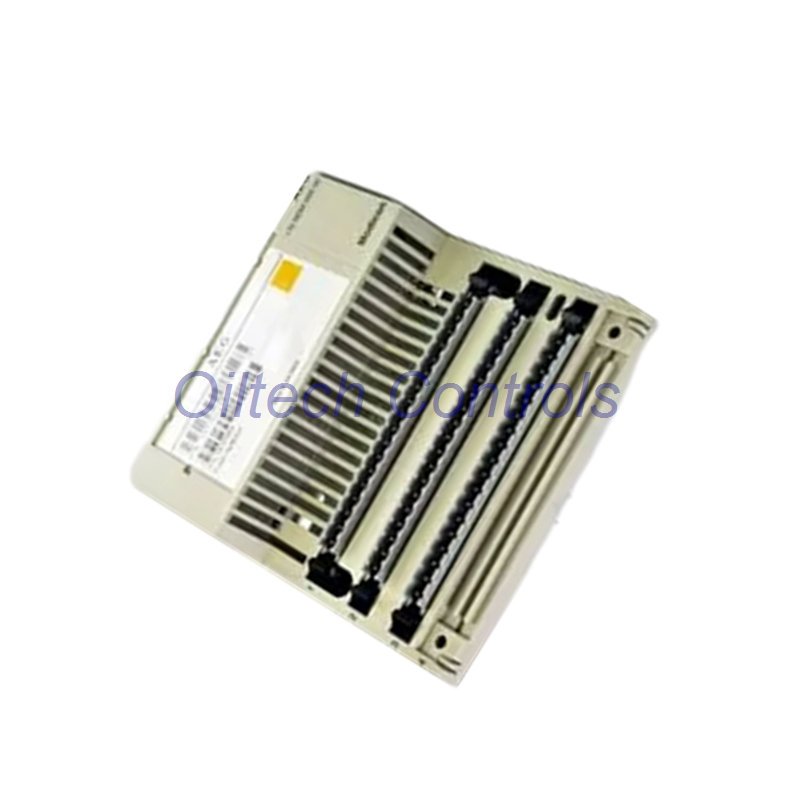

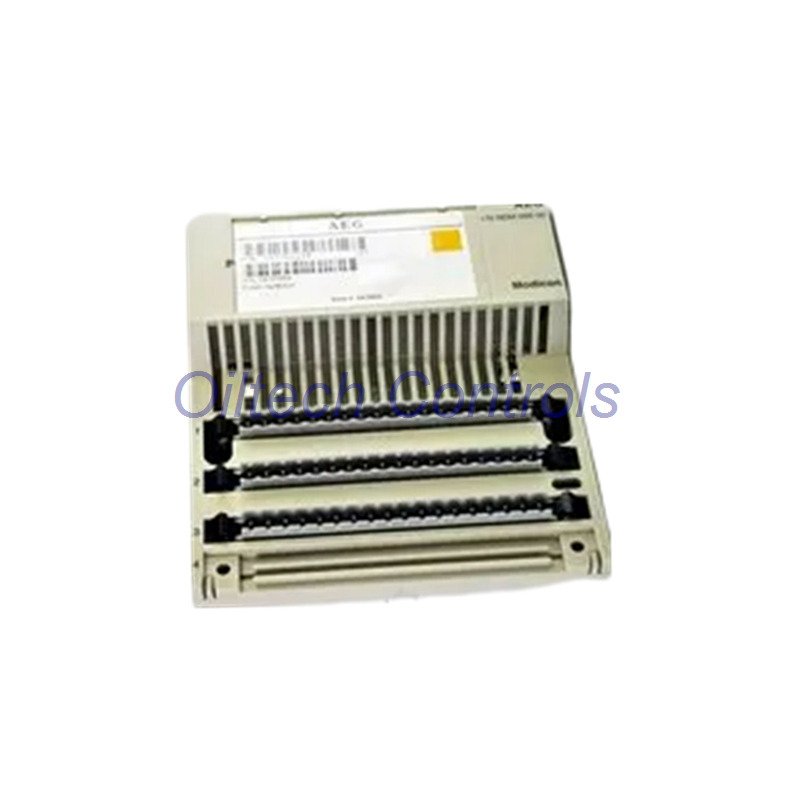

170BDM09000 is a compact discrete I/O module from Schneider Electric.
It supports basic signal control for Modicon Momentum PLC systems.
Key Functional Highlights
- Provides 4 discrete input channels for field signal monitoring.
- Delivers 2 digital output channels for actuator control.
- Supports prewiring to reduce installation time.
- Ensures stable signal processing in standard control cabinets.
Extended Technical Parameters
- Brand: Schneider Electric
- Model: 170BDM09000
- Series: Modicon Momentum
- Module Type: Discrete I/O Module
- Input Channels: 4 digital inputs
- Output Channels: 2 digital outputs
- Output Type: Discrete switching output
- Prewiring: Supported
- Weight: 0.38 lbs (0.17 kg)
Environmental Performance
- Operating temperature range: 0 to 40 °C.
- Storage temperature range: 0 to 50 °C.
- Maximum humidity: 80% RH, non-condensing.
- Maximum altitude: 1000 meters for operation and storage.
- Designed for clean indoor environments without corrosive chemicals.
Installation and Usage Notes
- Mount the module on compatible Modicon Momentum bases.
- Use prewired connectors to speed up field wiring.
- Keep signal cables separated from high-voltage lines.
- Verify input and output ratings before system startup.
Packaging, Warranty, and Logistics
- Package includes one 170BDM09000 discrete I/O module.
- Standard warranty period: 12 months.
- Shipping options: FedEx, UPS, and DHL.
- Protective packaging ensures safe international transport.
Professional FAQ
- What applications suit this module best?
- This module fits basic I/O control tasks in compact PLC systems.
- Why choose discrete I/O instead of analog I/O?
- Discrete I/O works best for simple ON/OFF signals and faster response.
- How does prewiring help installation?
- Prewiring reduces wiring errors and shortens commissioning time.
- Is this module suitable for harsh environments?
- It suits clean indoor environments without moisture or corrosive gases.
- What should buyers check before selection?
- Confirm channel count, voltage compatibility, and Momentum system support.
