Industrial Network Bridge

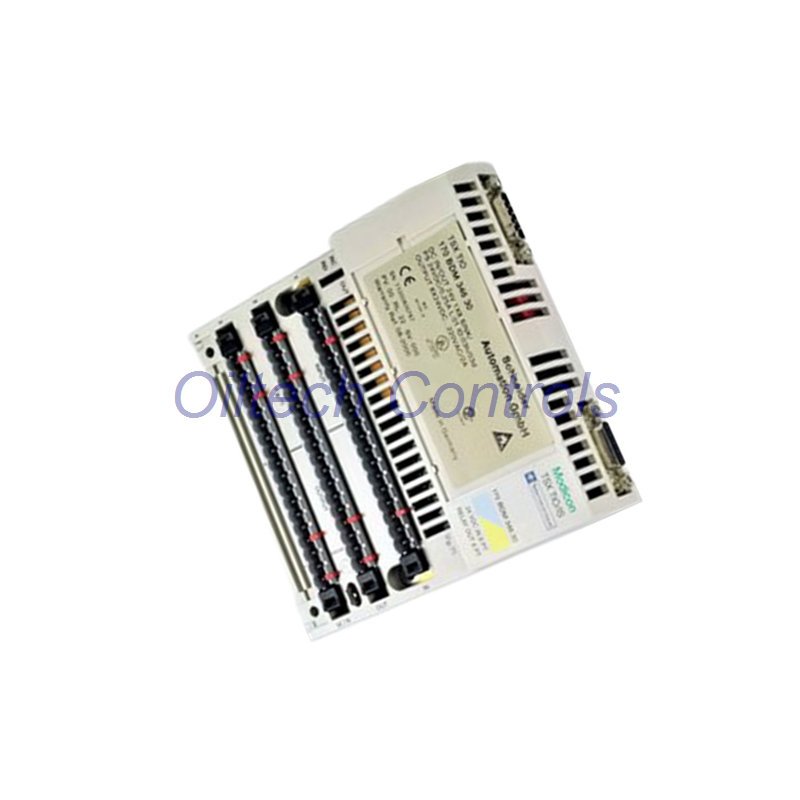

The Schneider Electric 170BNP67100 connects your Momentum system. It uses the trusted Modbus Plus network. This module links PLCs and devices for reliable data sharing. It is key for integrated industrial control systems.
Module Technical Data
- Product Code: 170BNP67100 by Schneider Electric
- Core Function: Modbus Plus Communication Interface
- Network Port: 1 x DB9 Female Connector
- Data Speed: High-speed 1 Megabit per second (Mbps)
- Voltage Needs: 5 VDC Operating Voltage
- Current Use: 200 mA
- Mounting: Standard DIN Rail (easy install)
- Safe Enclosure: IP20 Rating (basic protection)
- Temp Range: Stable from 0°C to +60°C
- Quality Marks: CE, UL, CSA Approved
- Indicator: LED for Status Check
Why Choose This Module?
- Enables fast and stable Modbus Plus networking.
- Simple DIN rail mounting fits standard cabinets.
- Runs in wide temperature range for tough places.
- Carries major international safety certifications.
- Designed specifically for TSX Momentum I/O systems.
- LED gives clear visual status of link and activity.
Order & Delivery Details
- Your Order Includes: One 170BNP67100 module.
- Our Promise: Full 12-month product warranty.
- We Ship With: FedEx, UPS, and DHL.
- Get It Fast: Quick global delivery options.
Common Questions Answered
- Q: What is Modbus Plus typically used for?
- A: It is a strong network for factory floors. It connects PLCs, computers, and devices to share control data reliably.
- Q: Do I need special cable for this module?
- A: Yes. You need shielded, twisted-pair cable designed for Modbus Plus networks for best performance.
- Q: Can this module work with non-Momentum PLCs?
- A: Its main job is for Momentum systems. To connect to other brands, check for a compatible gateway device.
- Q: The status LED is off. What should I check?
- A> First, verify the 5VDC power from the base is good. Then, check the network cable and terminator connections.
- Q: What should I consider before buying this module?
- A> Confirm your system uses Modbus Plus. Check you have a free slot on the Momentum base. Ensure you have the correct network cable and terminators.
