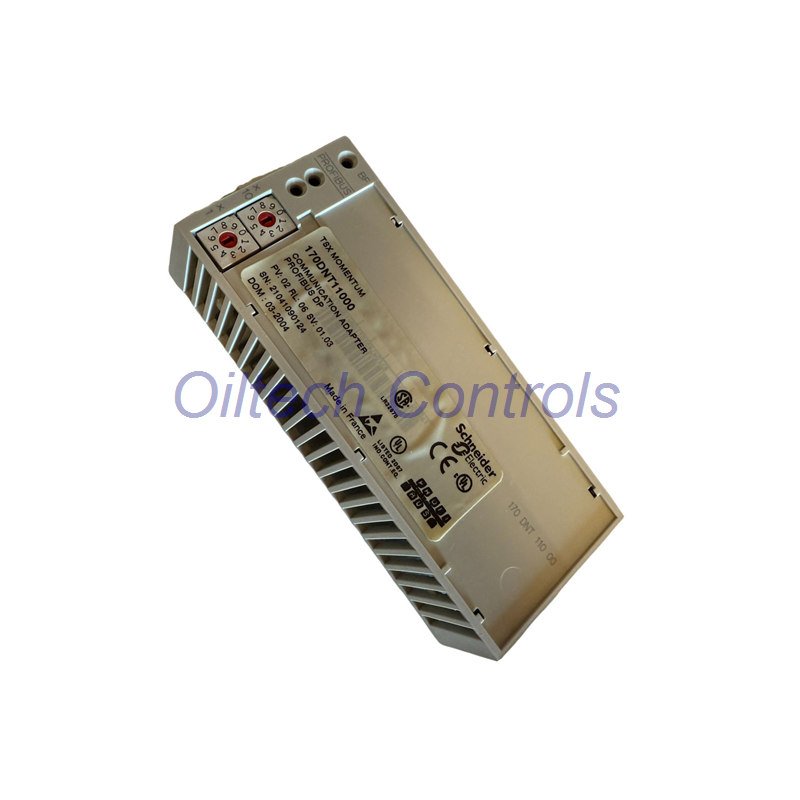

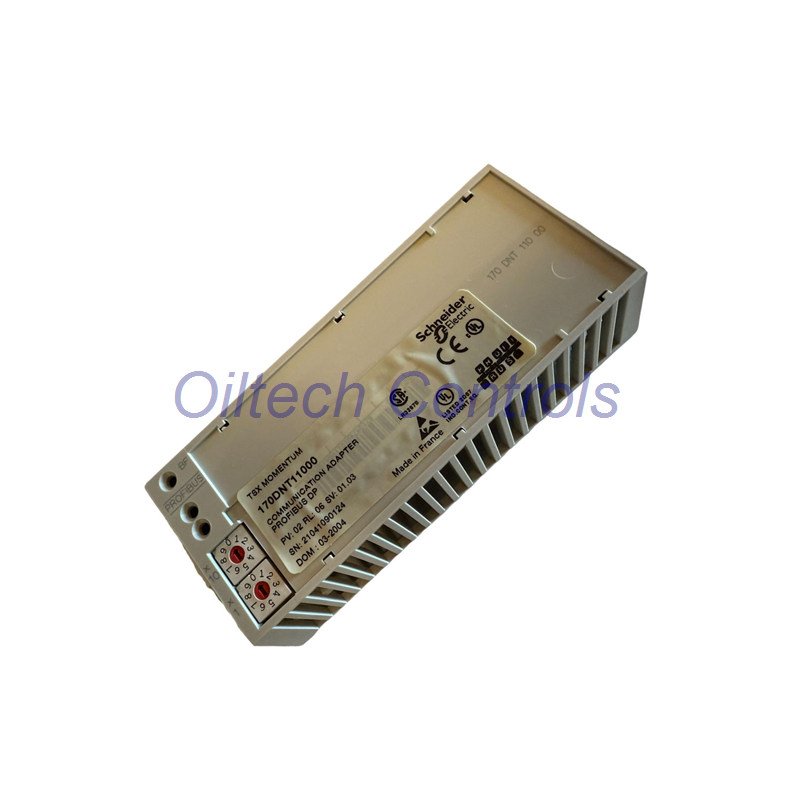

Product Overview
- The Schneider Electric 170DNT11000 provides reliable Profibus DP communication for Momentum systems.
- This adapter supports fast data exchange in distributed industrial automation networks.
Key Communication Features
- Uses Profibus DP for deterministic and high-speed field communication.
- Supports data rates from 9.6 kbit/s to 12 Mbit/s.
- Connects up to 126 devices on one Profibus network.
Network and Cabling
- Operates over twisted pair cable with strong noise resistance.
- Supports multidrop and ring network topologies.
- Allows cable lengths up to 1200 meters.
Data Integrity and Addressing
- CRC-16 checking ensures accurate and stable data transmission.
- Switch-selectable addressing simplifies installation and setup.
Design and Connectivity
- Uses one 9-pin SUB-D connector for Profibus connection.
- Compact IP20 housing fits standard control cabinets.
Environmental Specifications
- Operates within 0°C to 60°C.
- Stores safely between -40°C and 85°C.
- Handles up to 95% humidity without condensation.
Technical Specifications
- Brand → Schneider Electric
- Model → 170DNT11000
- Series → Modicon Momentum
- Type → Profibus DP Communication Adapter
- Transmission Speed → 9.6 kbit/s to 12 Mbit/s
- Error Control → CRC-16
- Weight → 0.19 lbs (0.09 kg)
Installation Notes
- Install directly on Momentum base modules.
- Set the Profibus address before powering the system.
- Use standard Profibus cables with correct termination.
Package Contents
- One Schneider Electric 170DNT11000 adapter
- Protective industrial packaging
- Shipping via FedEx, UPS, or DHL
FAQ
- Is this adapter suitable for large systems?
Yes, it supports up to 126 Profibus nodes. - Which systems work with this model?
It fits Schneider Electric Modicon Momentum platforms. - How do I select this adapter?
Choose it for Profibus DP communication in Momentum I/O systems.
