Product Introduction

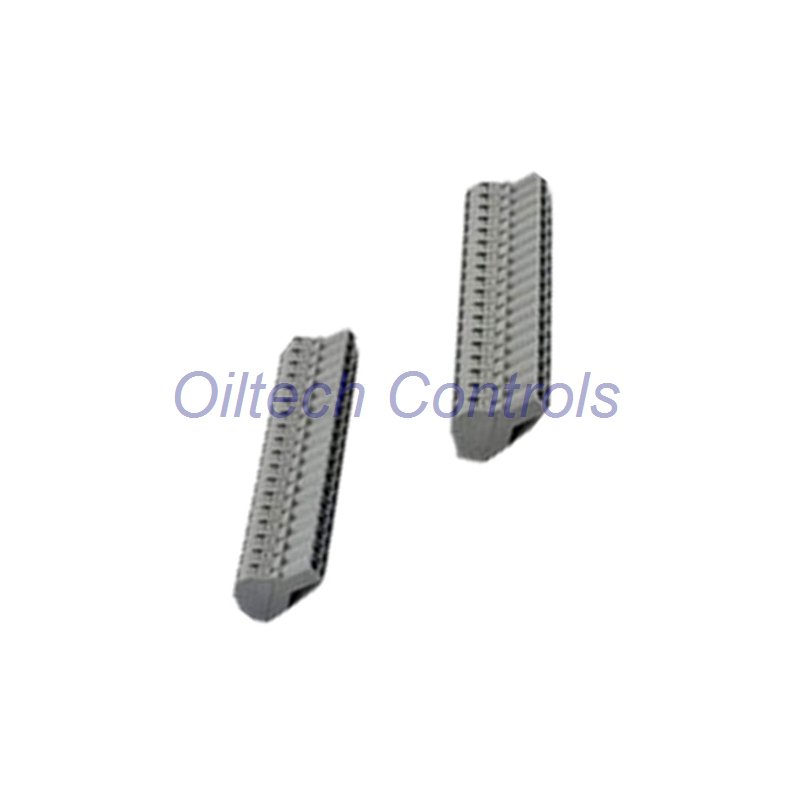

The Schneider Electric 170XCP10000 is a cable coding kit. It organizes wires for Modicon Momentum I/O bases. This kit makes your panel look neat. It helps find wires fast. Perfect for professional installations.
Key Features & Benefits
- Clear Wire Labels: Pre-printed numbers for easy identification.
- Momentum Compatible: Made for Modicon Momentum I/O systems.
- Lightweight Kit: Weighs only 53 grams, easy to carry.
- Tough Labels: Resist heat, dirt, and light moisture.
- Safety Certified: Meets important CE standards.
- Saves Time: Reduces wiring errors and troubleshooting time.
Detailed Technical Specifications
- Brand: Schneider Electric
- Product Line: Modicon Momentum
- Model Number: 170XCP10000
- Kit Purpose: Wire and Terminal Identification
- Package Size: 9.84″ L x 4.33″ W x 1.18″ H
- Total Weight: 0.053 kg
- Label Type: Durable adhesive-backed markers.
- Number Range: Common sequences for I/O addressing.
- Contents: Label sheets, possibly applicator tool.
Environmental & Compliance
- Working Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Humidity Rating: 95% max, non-condensing
- Max Operating Height: 1000 meters (3280 feet)
- Heat Dissipation: Natural cooling only
- Key Approval: CE Certification
- Material Safety: RoHS compliant components.
Warranty & Shipping
This product has a full 12-month manufacturer warranty. We ship via FedEx, UPS, and DHL for reliable delivery. You will get a tracking number by email.
Frequently Asked Questions
Product Use
What does this kit actually do?
It provides numbered labels. You put them on wires and terminals. This creates a clear map of your I/O connections for installation and future service.
Are the labels reusable?
No. They have strong permanent adhesive. Once applied, they are not designed to be removed and reused without damage.
Installation Tips
When is the best time to apply these labels?
Apply them during the initial wiring. Do it before closing the panel door. This ensures all connections are clearly marked from the start.
The labels are peeling at the edges. How can I prevent this?
Make sure the surface is clean and dry before applying. Press firmly for 10-15 seconds. Avoid applying to curved surfaces too small for the label size.
Buying Advice
How do I know if the 170XCP10000 is the right kit for my project?
If you are using Schneider Electric Modicon Momentum I/O bases, this 170XCP10000 kit is the standard accessory. It matches the common terminal numbering for these modules.
