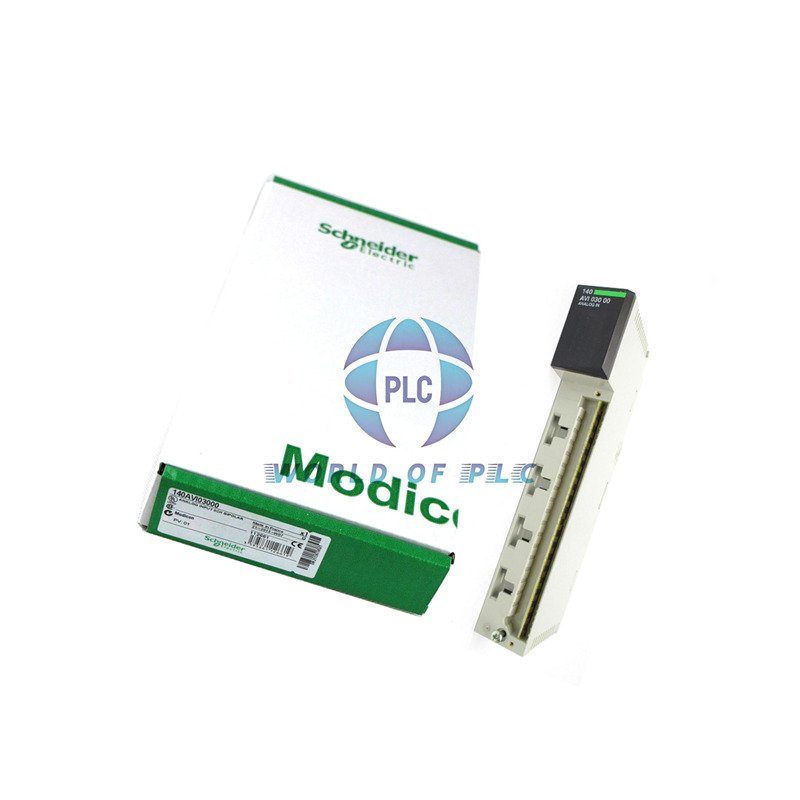

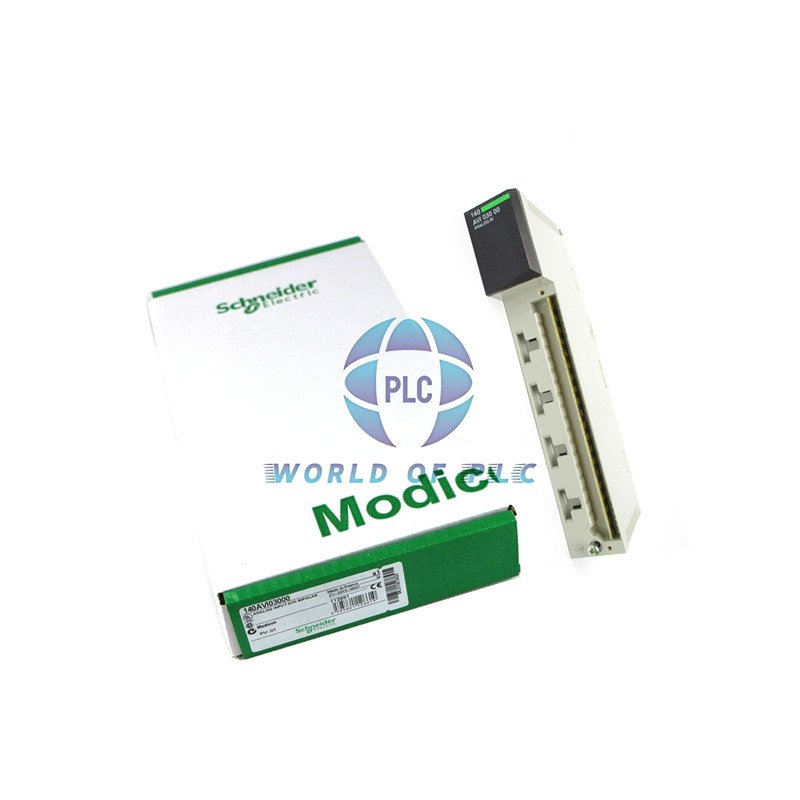

Schneider Electric Quantum – 8-Channel Analog Input 140AVI03000

High-Speed Analog Input Module: Schneider Electric 140AVI03000

• Ultra-fast 10ms sampling for real-time data
• Superior 16-bit resolution for precise measurements
• Eight flexible input channels
• Multiple signal type support
• Robust industrial construction

Key Technical Specifications

Brand: Schneider Electric

Model: 140AVI03000 (Complete Series)

Input Channels: 8 differential

Signal Types: ±10V, ±5V, 0-10V, 0-5V, 0-20mA, ±20mA

Resolution: 16-bit on all ranges

Accuracy: ±0.03% of full scale

Update Speed: 10 milliseconds

Input Impedance: >20 MΩ (voltage), 250 Ω (current)

Max Input Voltage: 50V DC absolute maximum

CMRR: >80 dB at 60Hz

Isolation: 500V AC channel to bus

Bus Current: 280mA

Power Usage: 2.2 Watts

Operating Temp: 0°C to 60°C

Quick Installation

Requires 9 input words in PLC configuration. Easy mounting in Quantum racks. Follow ESD safety procedures.

System Integration

Fully compatible with Modicon Quantum platform. Works with all Quantum processors and accessories.

Quality Standards

UL 508, CSA C22.2 No 142 certified. FM Class 1 Division 2 approved for hazardous locations.

Package Contents

One 140AVI03000 analog input module. Installation manual included. Factory fresh condition.

Shipping & Warranty

12-month comprehensive warranty. Worldwide express shipping via FedEx, UPS, DHL. Order now for fast delivery.

Professional FAQ

What is the maximum voltage input?

50V DC absolute maximum for voltage inputs.

How many input words are needed?

9 input words required for module addressing.

What is the filter frequency?

847Hz single pole low pass filter for noise reduction.

Does it support bipolar signals?

Yes, supports ±10V, ±5V and ±20mA bipolar ranges.

What is the common mode rejection?

Greater than 80dB at 60Hz for noise immunity.
