Overview

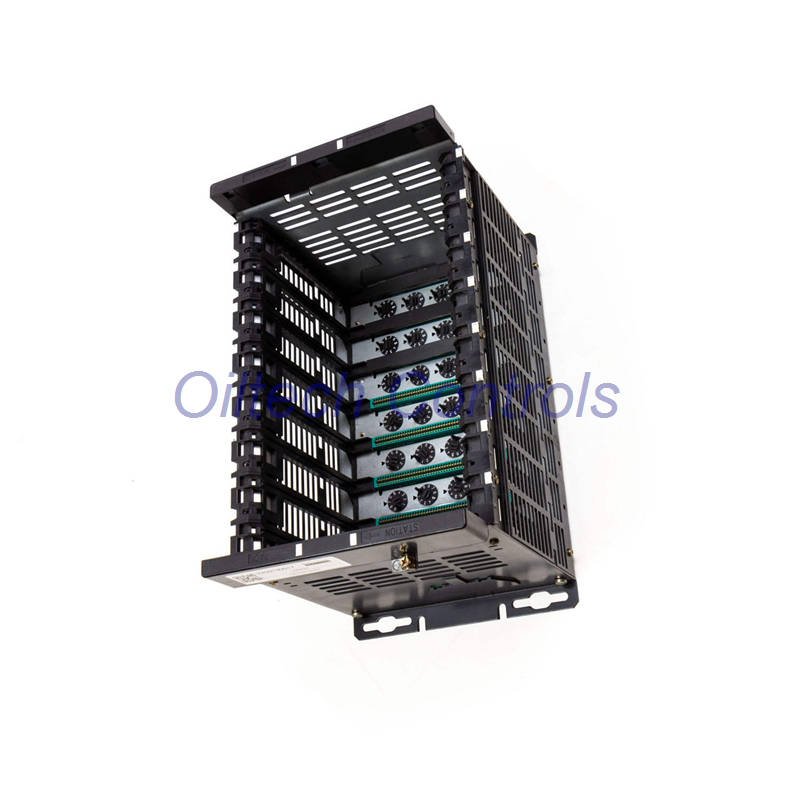

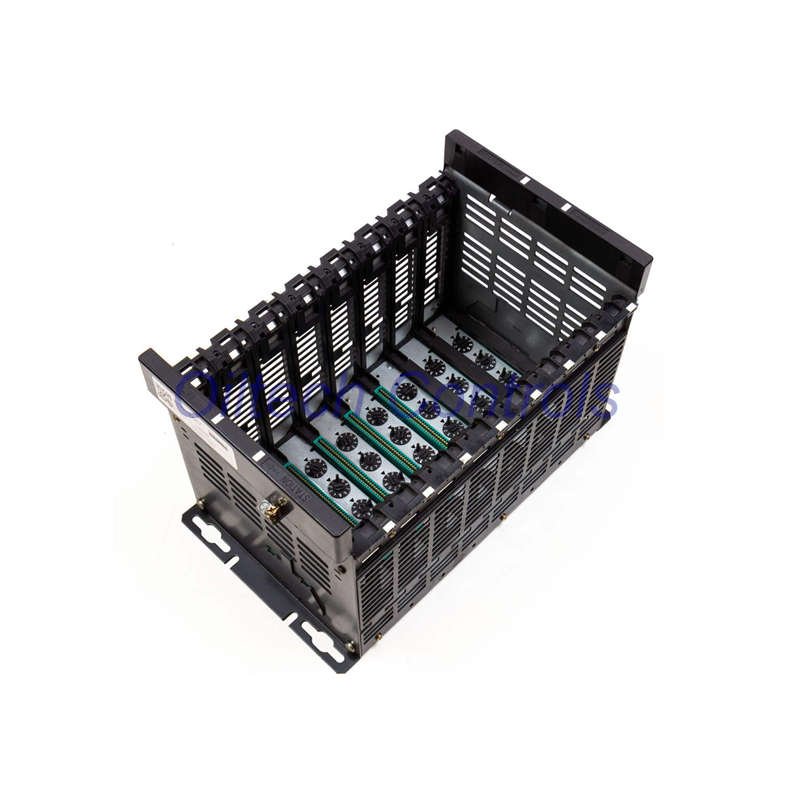

The Schneider Electric TSXRKN5 short extension rack expands Modicon PLC systems with a compact and reliable five-position design.
Design Purpose and Value
- The rack supports up to 5 module positions for flexible system expansion.
- Compact size fits control cabinets with limited space.
- The structure improves system order and cable organization.
Core Technical Specifications
- Brand: Schneider Electric, known for industrial-grade automation hardware.
- Model: TSXRKN5, built for the Modicon PLC platform.
- Rack type: Short extension rack for modular PLC expansion.
- Maximum supported positions: 5 slots.
Environmental Operating Limits
- Operating temperature range: 0 to 40°C.
- Storage temperature range: 0 to 50°C.
- Maximum operating humidity: 80% RH without condensation.
- Maximum storage humidity: 80% RH without condensation.
- Operating altitude supports up to 1000 meters without derating.
Industrial Application Scope
- Material handling control systems.
- Packaging line automation cabinets.
- Textile machinery control assemblies.
- General factory PLC expansion needs.
Reliability and Installation Benefits
- Rigid rack structure supports stable module alignment.
- Designed for long-term use in industrial panels.
- Compatible with standard Modicon mounting methods.
Packaging, Warranty, and Shipping
- Each package includes one Schneider Electric TSXRKN5 extension rack.
- Standard warranty period provides 12 months of coverage.
- Worldwide delivery available via FedEx, UPS, and DHL.
Professional FAQ
- Does this rack support all Modicon PLC modules?
- It supports compatible Modicon modules designed for extension racks.
- Is the rack suitable for compact control panels?
- Yes, the short rack design fits cabinets with limited depth.
- Can the rack operate in high-humidity environments?
- It supports up to 80% relative humidity without condensation.
- Does altitude affect rack performance?
- The rack operates normally up to 1000 meters without derating.
- Is this rack intended for indoor use only?
- Yes, it suits controlled indoor industrial environments.
