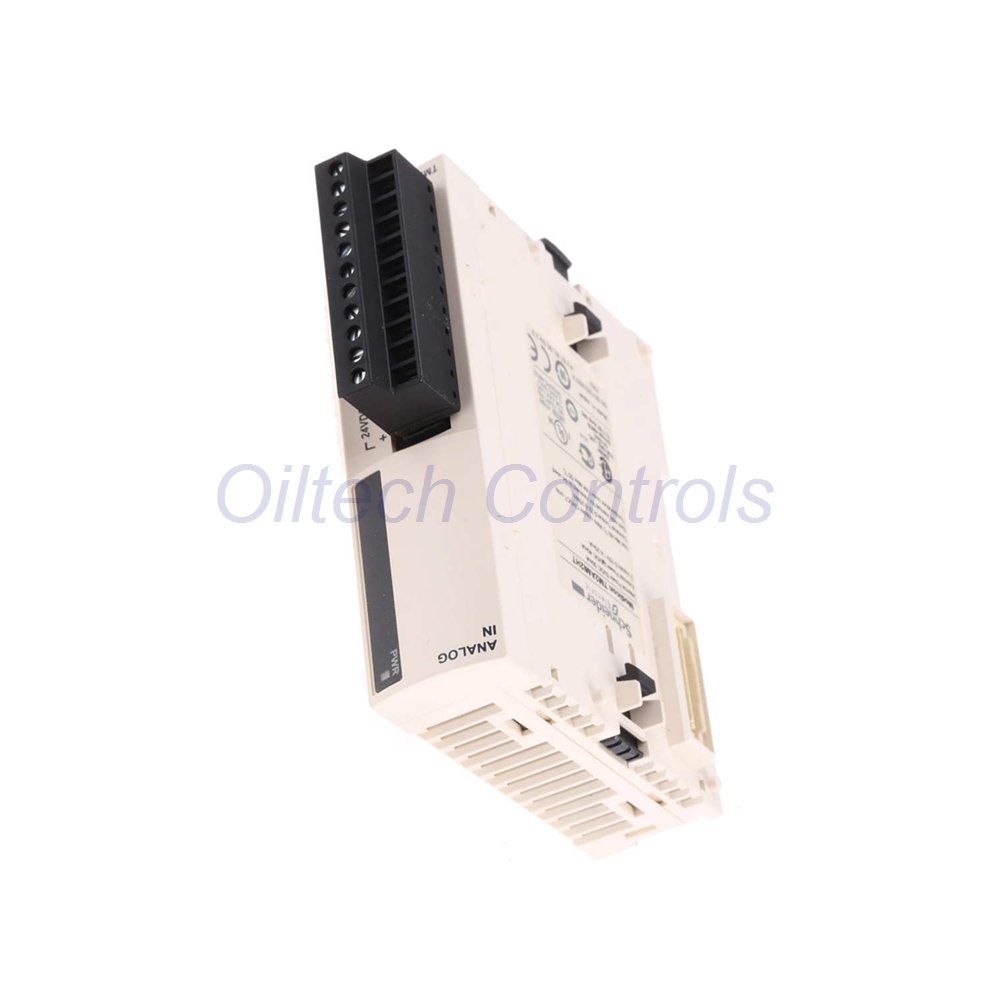

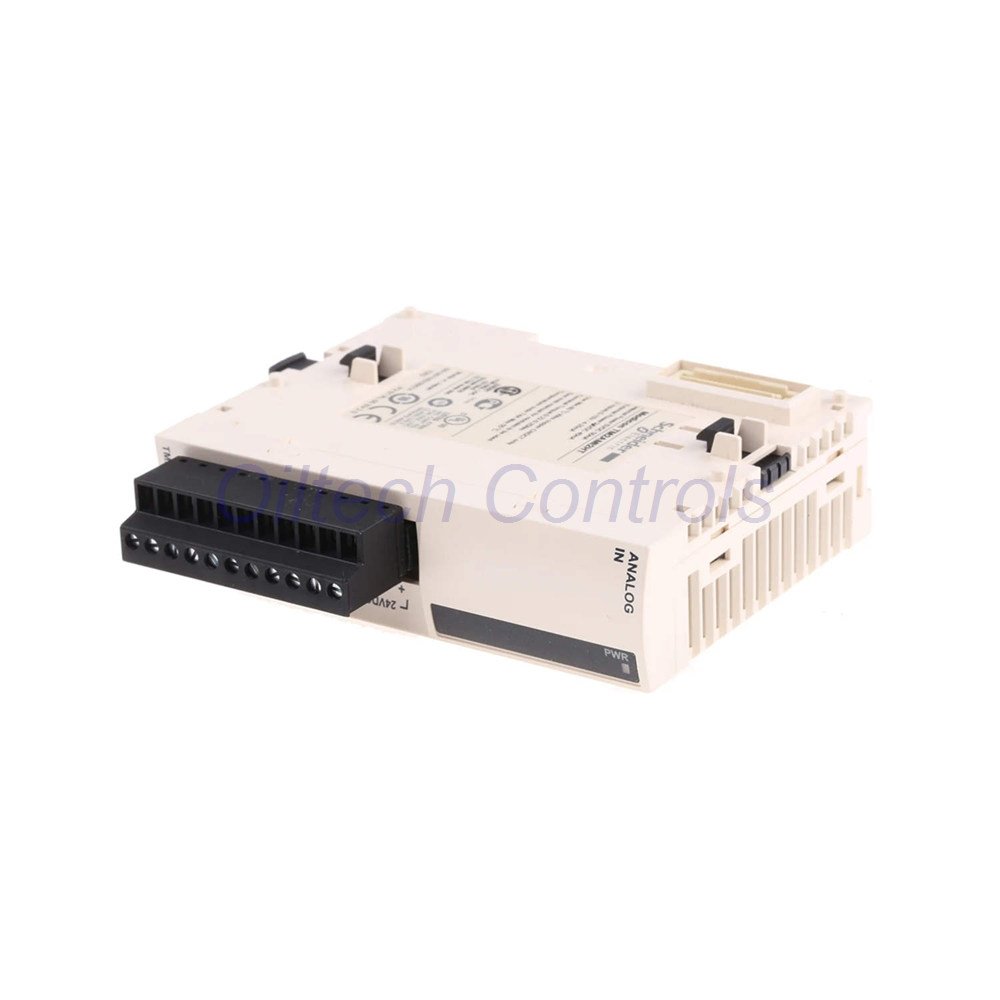

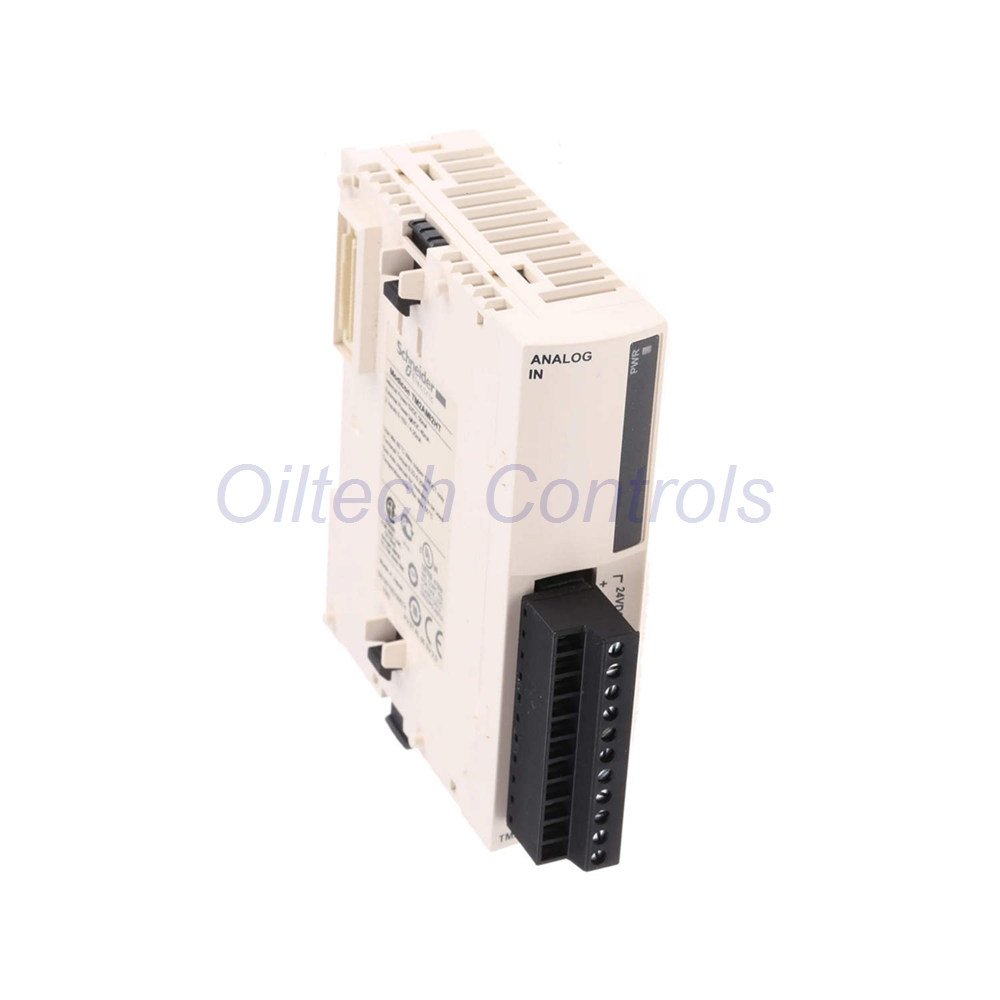

Schneider TM2AMI2HT Analog Input Module | Modicon M238 2-Channel

Schneider TM2AMI2HT Technical Overview

• The Schneider TM2AMI2HT provides two high-level analog inputs for the Modicon M238 controller series.
• This module supports both 0-10V voltage and 4-20mA current signals via non-differential inputs.
• Engineered by Schneider Electric, the unit ensures signal integrity through robust photocoupler isolation.
• For inquiries, please email our support team at info@oiltechcontrols.com.
• For immediate service, message us on WhatsApp at +86 158 8020 0923.

Oiltech Controls’s Insight: System Compatibility

• This module functions effectively with the Modicon M238, Twido, and Advantys OTB ecosystem.
• It serves ideal applications in process control, motor speed monitoring, and flow measurement tasks.
• Our engineers recommend this unit for installations requiring precise 12-bit conversion in compact spaces.
• Always utilize shielded cabling to prevent cross-talk, which maintains accuracy within the 2 LSB limit.

Precision Performance Metrics

• Resolution: 12-bit conversion delivers 2.5mV voltage steps and 4.8µA current increments.
• Measurement Accuracy: Expect +/- 1% FS total error with a low 0.006% FS/°C temperature coefficient.
• Input Impedance: The device provides >= 1 MOhm for voltage and a stable 10 Ohm for current loops.
• Response Time: A 10ms sampling duration ensures rapid data acquisition across both input channels.

Logistics and Service Commitment

• We process all orders within 24-28 hours to ensure rapid delivery to your facility.
• Reliable shipping options include FedEx, UPS, and DHL for secure global transport.
• Oiltech Controls provides a 12-month quality warranty on all **Schneider TM2AMI2HT** units.
• Each package includes one removable screw terminal block for streamlined field wiring and maintenance.

Expert FAQ and Selection Guidance

• Q: Can I use this module for differential signal inputs?
• A: No, the Schneider TM2AMI2HT supports non-differential inputs only; ensure your sensor wiring follows this configuration.
• Q: What is the benefit of the 12-bit resolution in this model?
• A: It offers a balance of precision and speed, making it perfect for standard industrial monitoring without heavy CPU overhead.
• Q: Should I use a specific power supply for this expansion module?
• A: Yes, use a stable 24V DC external supply within the 20.4-28.8V range to guarantee optimal performance.
• Q: How do I minimize measurement error when using current loops?
• A: Keep cable runs short, use high-quality shielded wire, and ensure the module ground connects properly to the system bus.
• Q: Is this module hot-swappable during controller operation?
• A: We recommend powering down the system before installing or removing modules to prevent potential electrical damage.
