Product Overview

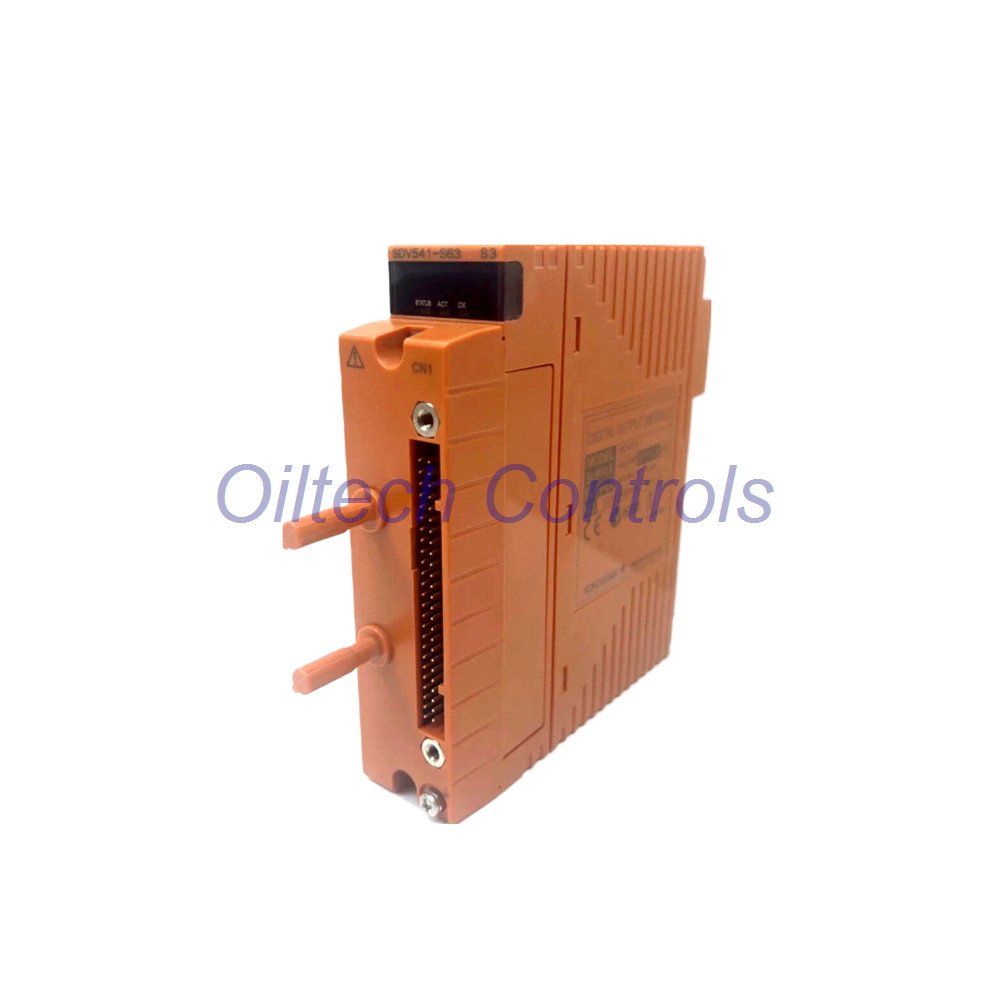

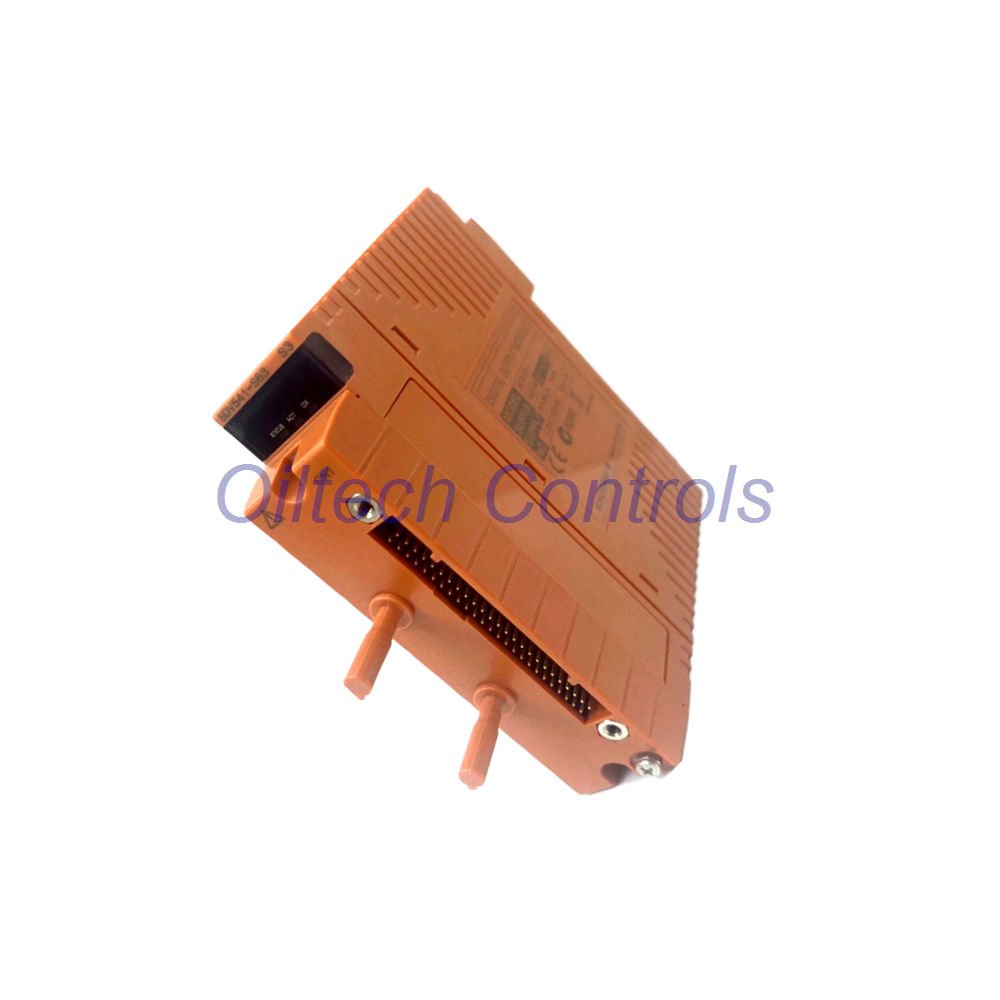

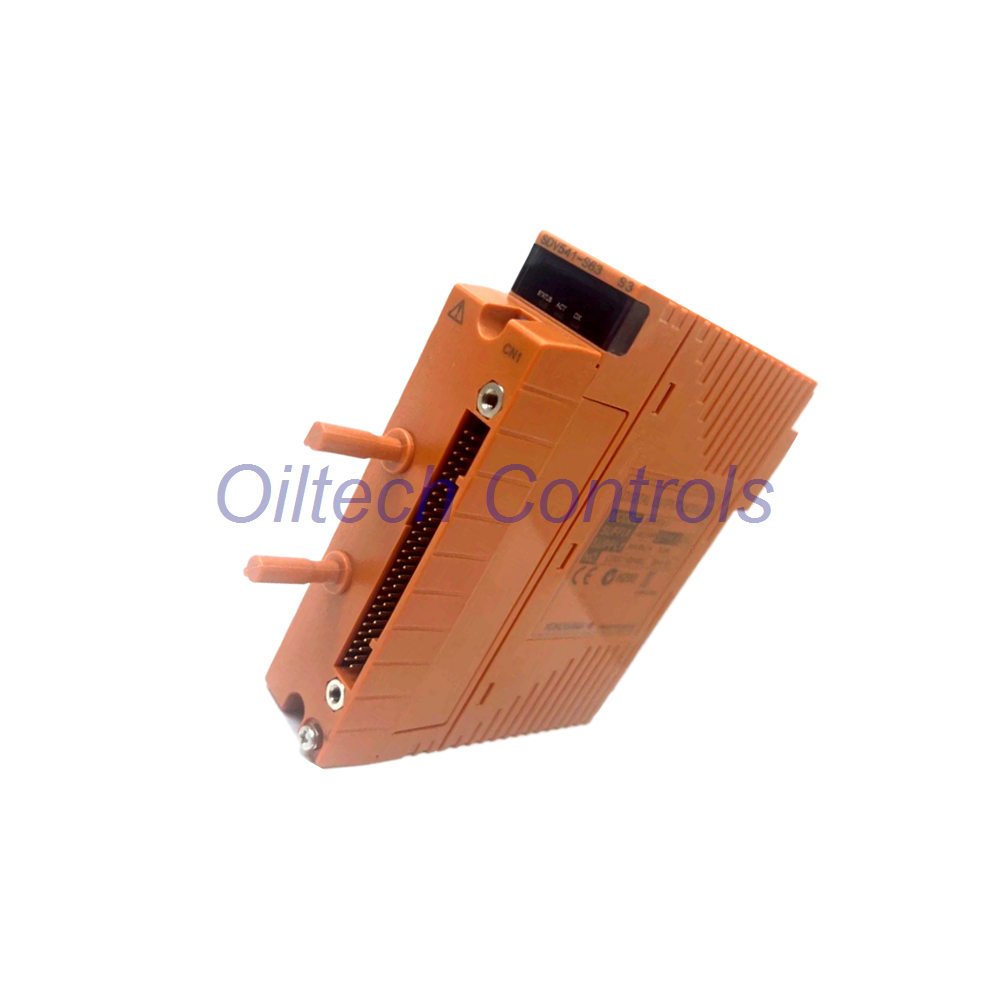

The SDV541-S63 is a high-performance 16-channel digital output module from Yokogawa. Engineered for critical DCS (Distributed Control System) tasks, this module offers module-level isolation, 24V DC operation, and ISA G3 temperature resistance, ensuring reliable signaling in demanding industrial environments.
Technical Data Profile
- Manufacturer: Yokogawa
- Model Number: SDV541-S63
- Type: Digital Output Module
- Output Configuration: 16-channel, module isolation
- Voltage Rating: 24 V DC (Output)
- ISA Standard: G3 compliant (-20 to 70 °C)
- Load Capacity: 0.2 A per output (3.2 A total)
- Response Time: 30 ms maximum
- Current Consumption: 300 mA (5 V DC) / 150 mA (24 V DC)
- Weight: Approx. 0.31 kg (depending on interface)
Oiltech Controls Insight
- Engineering Analysis: The SDV541-S63 is a cornerstone for CENTUM VP systems; the ISA G3 rating is critical for longevity in corrosive or high-temperature zones.
- System Compatibility: Ideally suited for DCS architectures where high-density digital signaling and isolation are required to prevent ground loop interference.
- Best Practice: Ensure external power supplies are rated for at least 3.4 A to accommodate peak load capacity without triggering voltage drops.
- Technical Support: Need expert advice on your integration? Email info@oiltechcontrols.com or message us on WhatsApp: +86 158 8020 0923.
Logistics & Reliability
- Fast Fulfillment: We prioritize your uptime with order dispatch completed within 24–28 hours.
- Global Shipping: Secure transit available via FedEx, UPS, and DHL.
- Quality Guarantee: Every SDV541-S63 unit is backed by a comprehensive 12-month quality warranty.
Professional FAQ
- Q: How do I select the right connection method for this module?
- A: Use the pressure clamp terminal block for standard wiring, or opt for MIL/AKB dedicated cables for high-density modern cabinet builds.
- Q: What is the benefit of the G3 rating on this model?
- A: The ISA G3 rating indicates superior corrosion resistance, essential for extending service life in harsh chemical or high-humidity process areas.
- Q: Can I use this in non-Yokogawa control systems?
- A: No, the SDV541-S63 is specifically engineered for Yokogawa DCS hardware; integration into other platforms will cause communication failure.
- Q: Why does the load resistance range (120-685 Ω) matter?
- A: Operating outside this range may lead to unstable current source behavior or trigger protective shutdown states within the logic controller.
- Q: What should I check if a channel indicates leak current?
- A: Verify the load impedance; if leakage exceeds 1.6 mA while the output is ‘OFF’, inspect your external cabling for potential short-to-ground paths.
