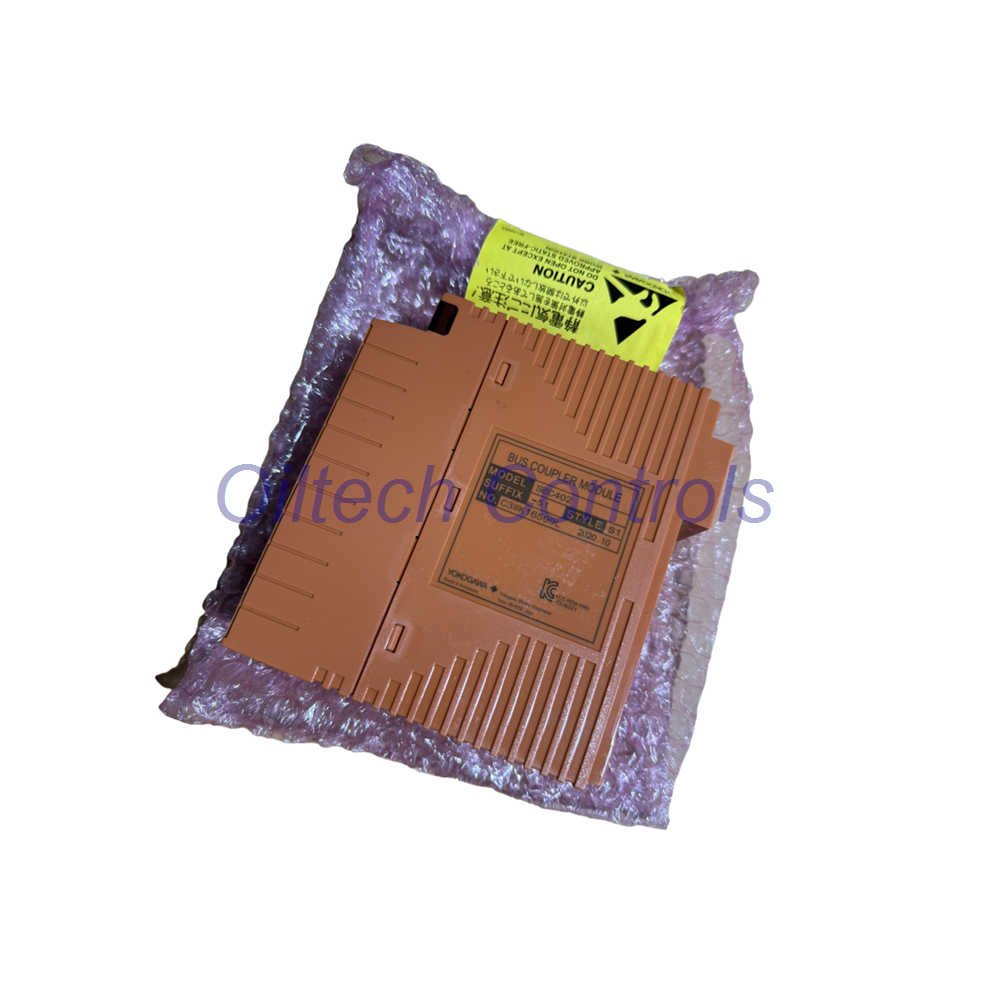

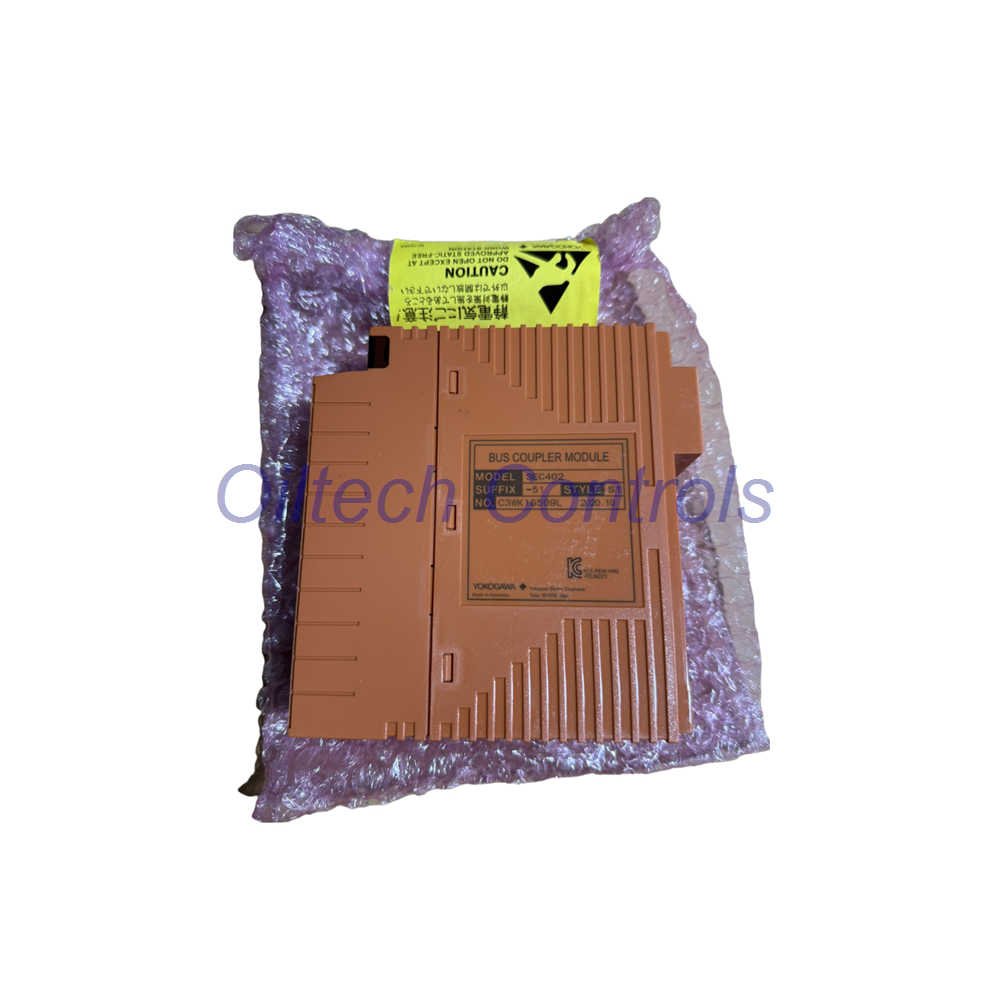

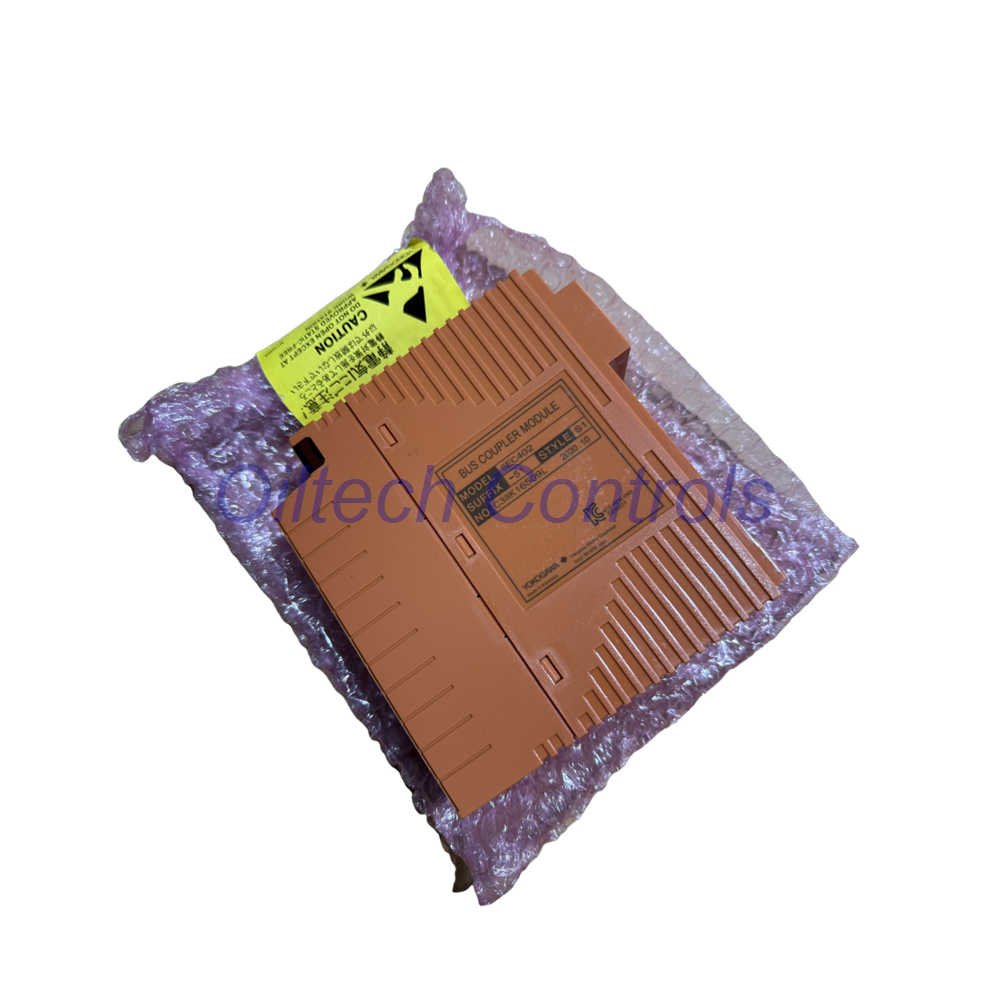

SEC402-51 Yokogawa ESB Bus Coupler Module
SEC402-51 enables high-speed communication between safety control units and I/O modules.
It ensures stable ESB bus integration with precise data transmission.
Download the official manual to explore full configuration and installation details.
Core Functional Structure
- Acts as ESB bus master interface for safety systems
- Supports high-speed data exchange at 128 Mbps
- Enables reliable communication across distributed modules
- Designed for installation in dedicated safety control slots
Performance & Capacity
- Supports up to 9 units on upper connection
- Supports up to 9 units on lower connection
- Maximum transmission distance of 10 meters per segment
- Stable communication under industrial load conditions
- Low current consumption at 0.5 A
Installation Positioning
- Mounted on slot 7 and 8 of safety control unit
- Ensures optimized signal routing within system architecture
- Compact design simplifies panel integration
- Lightweight structure enhances installation efficiency
Configuration Breakdown (Structured View)
- Model Series: SEC402
- Function: ESB Bus Coupler Module (2-Port)
- Role: Master interface for ESB communication
- Architecture:
- Upper ESB Bus → Up to 9 modules
- Lower ESB Bus → Up to 9 modules
- Suffix Code Tree
- -5
- Standard type
- No explosion protection
- 1
- ISA Standard G3 compliant
- Enhanced environmental resistance
- -5
Oiltech Controls Limited’s Insight
- Highly suitable for safety-critical automation systems
- Delivers stable high-speed communication across modules
- Optimized for modular expansion in control architectures
- Reliable choice for process industries and energy systems
Application Scenarios
- Safety instrumented systems (SIS)
- Oil and gas processing plants
- Power generation facilities
- Chemical process control systems
- Distributed industrial automation networks
Diagnostic Capabilities
- Real-time communication monitoring improves system visibility
- Quick fault isolation between connected modules
- Supports predictive maintenance strategies
- Ensures continuous system availability
Professional FAQ
- How to ensure stable ESB communication performance?
- Maintain proper cable length and avoid exceeding 10-meter limits.
- What is a common configuration mistake?
- Exceeding module limits on one bus side may cause instability.
- How to choose the correct suffix option?
- Select ISA G3 version for harsh environments with corrosion risks.
- What should be verified before installation?
- Check slot position, power availability, and system compatibility.
- What are the delivery and warranty terms?
- Includes 12-month warranty with shipping via DHL, UPS, or FedEx.
