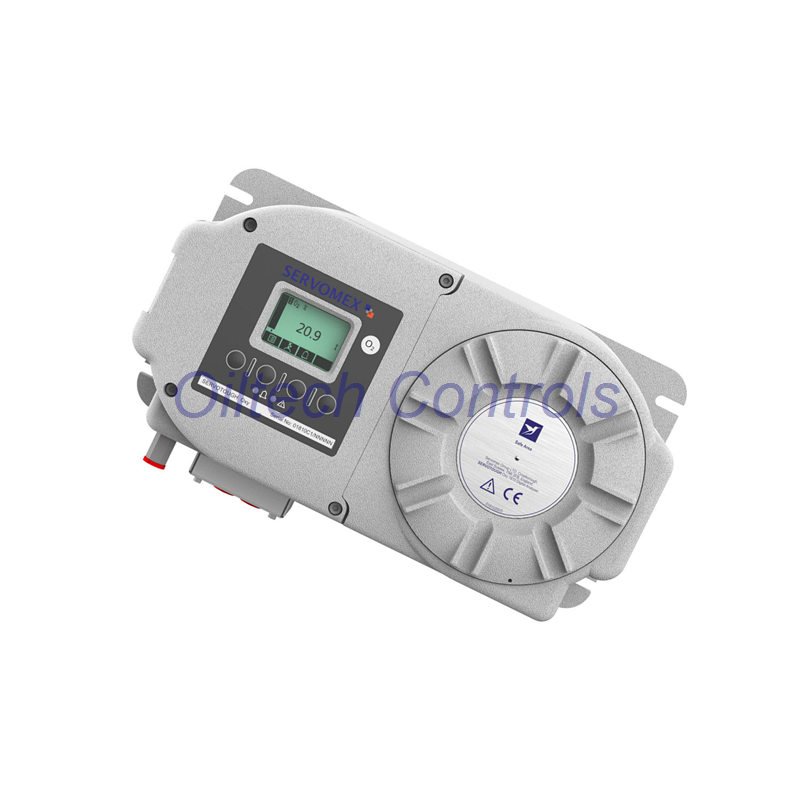

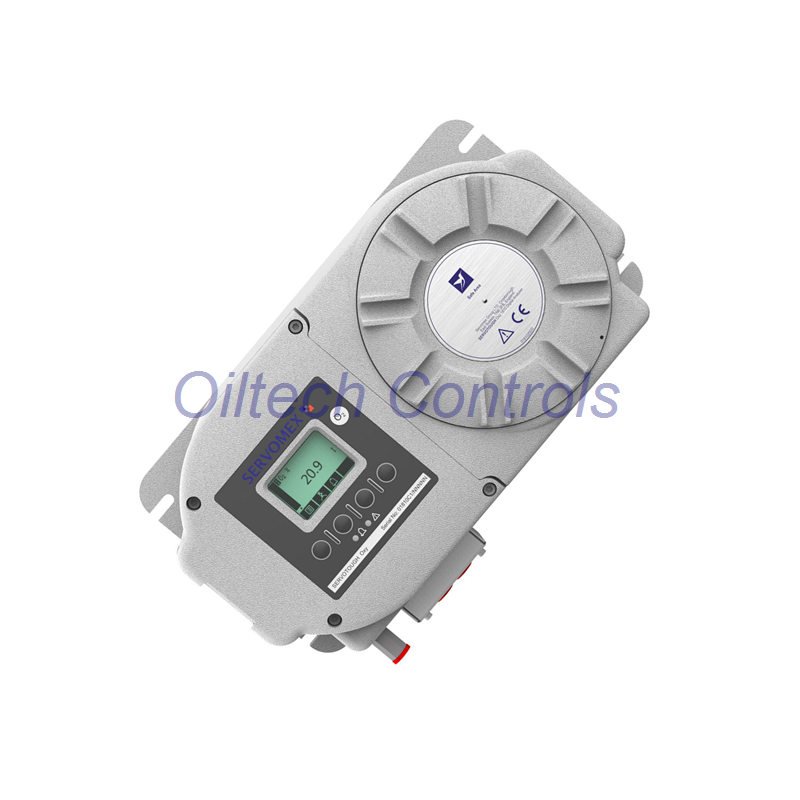

Servomex SERVOTOUGH Oxygen Analyzer – Product Overview
The Servomex SERVOTOUGH Oxygen Analyzer is built for fast and stable oxygen monitoring in harsh industrial sites. It offers strong protection, fast response, and simple operation. A 12-month warranty is included. Shipping options: FedEx, UPS, DHL.
Contact us:
Email: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
Key Advantages
- Quick setup and fast warm-up
- Stable O2 output with low drift
- Fast T90 time under 6 seconds
- Wide voltage support: 100–120 Vac / 220–240 Vac
- IP66 / NEMA 4X heavy-duty enclosure
- High accuracy ±0.05% oxygen
- Long calibration cycle: 6–12 months
- RS485 and mA output options
- Works well in harsh humidity and pressure conditions
Environment Ratings
- Operating temperature: -10 to 55°C
- Storage temperature: -20 to 60°C
- Pressure: 79–110 kPa
- Humidity: 0–95% RH, non-condensing
- Altitude: -500 to +2000 m
- Ingress: IP66 / NEMA 4X
Electrical Data
- Supply: 100–120 Vac or 220–240 Vac
- Frequency: 50/60 Hz
- Max power: 50 VA
- Fuse: 2.0 A (110 V) / 1.0 A (220 V)
- Relay rating: 30 Vdc, 1 A
- Output: 0–20 mA or 4–20 mA
- Load limit: 600 Ω
- Isolation: 500 V
- Inputs: 12–24 Vdc, 5–15 mA
- Flow rate: 40–60 ml/min
- Max purge pressure: 110 kPa
Oxygen Measurement
- Display: % volume oxygen
- Range: 0–1% to 0–21%
- Repeatability: ±0.02%
- Accuracy: ±0.05%
- Detection limit: < 50 ppm
- Weekly drift: < 0.05%
- Linearity: no measurable error
- Flow effect zero: < 0.1%
- Flow effect span: < 0.5%
- T90 response: < 6 seconds
Calibration Data
- High point: 0.5–20.95%
- Low point: 0% (zero N2)
- Minimum difference: 0.5%
- Gas tolerance: ±0.5% O2 (<5%), ±10% (≥5%)
- Interval: 6–12 months
Flowcube (F3) Sensor
- Error: ±5% FS
- Resolution: 1% FS
- Temp drift: ±2% per 10°C
- T90: < 15 seconds
Additional Selling Points
- Strong design for chemical and gas plants
- Low service cost due to stable sensor
- Clear and easy-to-read display
- Rugged enclosure for outdoor sites
- Fast response for process control
- Supports nitrogen, air, and inert gases
- Simple wiring with labeled terminals
Professional FAQs
What is the typical T90 response time?
The analyzer responds in under 6 seconds at standard flow rates.
How often should the unit be calibrated?
Calibration is typically needed every 6–12 months.
Can it operate in high humidity sites?
Yes. It works from 0–95% RH as long as moisture does not condense.
What output formats does the analyzer support?
It supports 0–20 mA, 4–20 mA, and RS485 communication.
Is the analyzer suitable for outdoor installation?
Yes. The IP66 / NEMA 4X rating allows use in outdoor and washdown areas.
