Overview

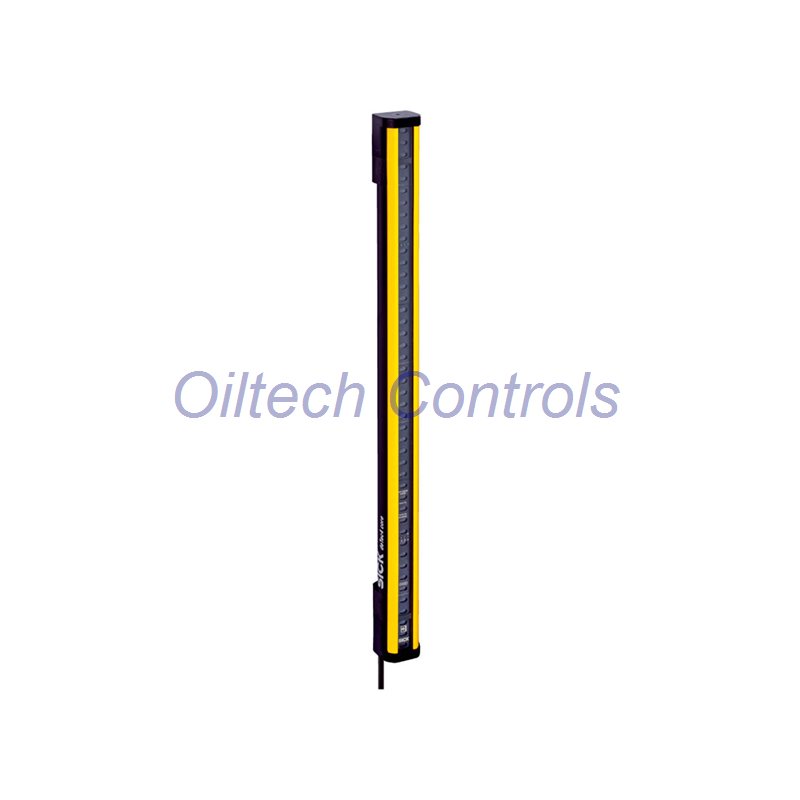

The SICK C4C-SA10530A10000 safety light curtain from the deTec4 Core series delivers reliable Type 4 protection for industrial machine safeguarding.
This model provides fast response, zero blind zones, and stable operation in harsh environments.
Author: Oiltech Controls
Key Safety Performance
- Type 4 safety light curtain with SIL3 and PL e certification.
- Designed for hand protection in standard industrial environments.
- No blind zones ensure continuous detection across the full protective field.
Optical and Detection Specifications
- Protective field height: 1,050 mm.
- Resolution: 30 mm.
- Scanning range up to 15 m with automatic field calibration.
- Fast response time of 11 ms.
Electrical and Interface Data
- Brand: SICK, Model: C4C-SA10530A10000.
- Supply voltage: 24 V DC (19.2–28.8 V DC).
- Two PNP OSSDs with cross-circuit monitoring, up to 300 mA.
- System connection via M12 male connector, 5-pin.
Environmental and Mechanical Features
- Aluminum extruded housing for industrial durability.
- Protection rating IP65 / IP67.
- Operating temperature range -30 °C to +55 °C.
- Shock resistance 10 g and vibration resistance 5 g.
Installation and Integration
- Flexible mounting with ±15° alignment using FlexFix brackets.
- Integrated LEDs support fast setup and diagnostics.
- Compatible with Flexi Soft and major industrial fieldbus networks.
Package Contents
- Sender and receiver pair from the deTec4 Core series.
- Test rod matched to the 30 mm resolution.
- Mounting and operating instructions.
