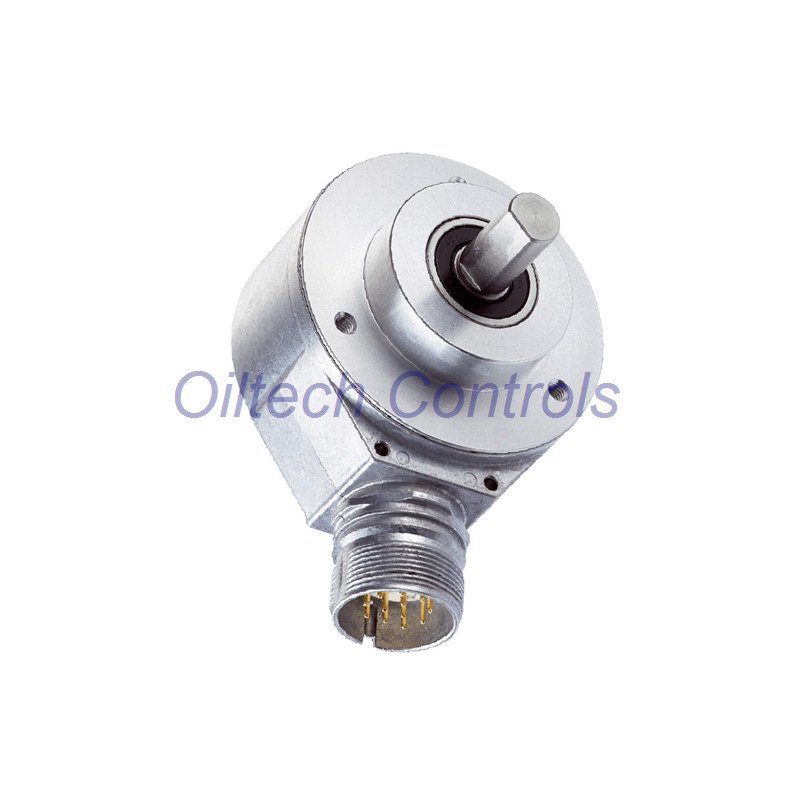

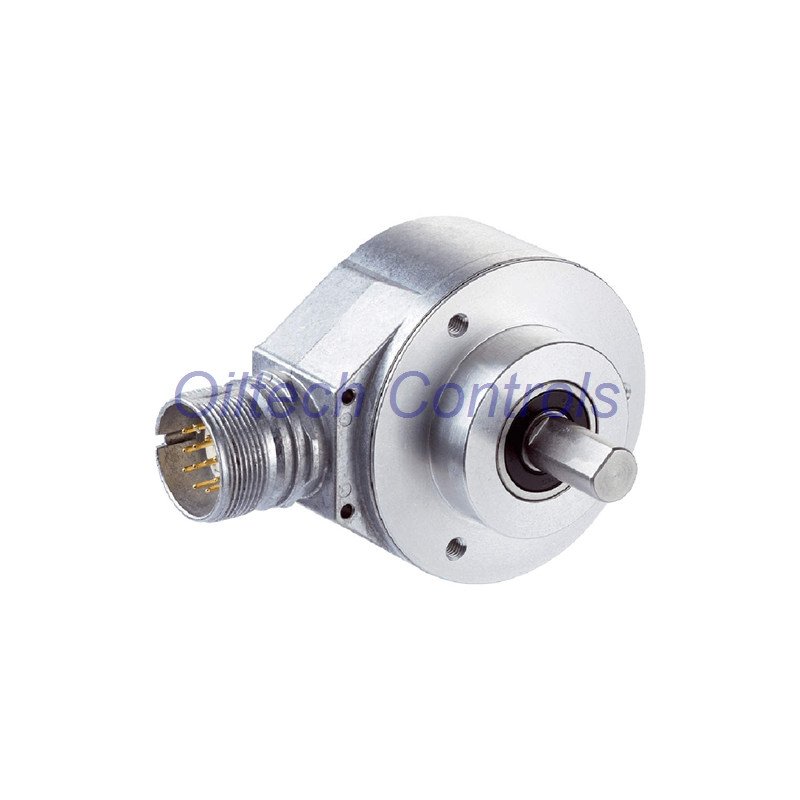

SICK DFS60B-S1MA10000 Incremental Encoder 10000 PPR Encoder

Product Positioning

• The SICK DFS60B-S1MA10000 targets high-precision motion feedback in industrial automation systems.
• This incremental encoder supports 10,000 pulses per revolution for detailed speed and position tracking.
• The DFS60 series focuses on flexibility, long life, and strong signal quality.

Key Selling Advantages

• High resolution improves motion control accuracy in servo and drive systems.
• Solid shaft design ensures stable rotation at speeds up to 9000 rpm.
• Programmable output settings adapt easily to different control architectures.
• Aluminum housing resists vibration, shock, and mechanical stress.

Electrical Performance

• Brand: SICK | Model: DFS60B-S1MA10000 | Series: DFS60
• Supply voltage ranges from 4.5 V to 32 V DC.
• Output frequency reaches up to 600 kHz for fast signal processing.
• Load current remains below 30 mA for efficient energy use.
• Power consumption stays under 0.7 W without external load.

Signal & Interface Design

• Incremental output supports TTL and HTL signal standards.
• Six signal channels improve synchronization and reference accuracy.
• Integrated zero pulse supports precise homing operations.
• Hardware-based 0-SET function enables quick system calibration.

Mechanical Structure

• Shaft size measures 6 mm diameter with 10 mm length.
• Stainless steel shaft resists wear in continuous operation.
• Operating torque stays low at 0.3 N·cm for smooth rotation.
• Servo flange mounting supports compact and rigid installation.

Environmental Resistance

• The housing reaches IP67 protection on the connector side.
• The shaft side meets IP65 for dust and splash resistance.
• Operating temperature ranges from –40 °C to +100 °C.
• The encoder withstands vibration up to 30 g and shock up to 70 g.

Installation Notes

• Align the shaft carefully to avoid radial and axial overload.
• Use shielded cables to maintain signal integrity at high speed.
• Secure the servo flange firmly to reduce mechanical resonance.

Package Contents

• 1 × SICK DFS60B-S1MA10000 Incremental Encoder
• 1 × Protective industrial packaging

Warranty & Shipping

• Warranty period covers 12 months under normal operating conditions.
• Shipping options include FedEx, UPS, and DHL.

Professional FAQ

• Which applications benefit most from 10,000 PPR resolution?
• High-resolution feedback improves servo drives, robotics, and precision conveyors.
• Does this encoder support long cable runs?
• Differential TTL and HTL outputs help reduce signal noise over distance.
• Can the encoder handle continuous high-speed rotation?
• The design supports stable operation at speeds up to 9000 rpm.
• Is the zero pulse position adjustable?
• Programmable zero pulse settings allow flexible homing configuration.
• Does the housing resist oil and dust?
• IP67 protection ensures reliable operation in dusty and oily environments.
