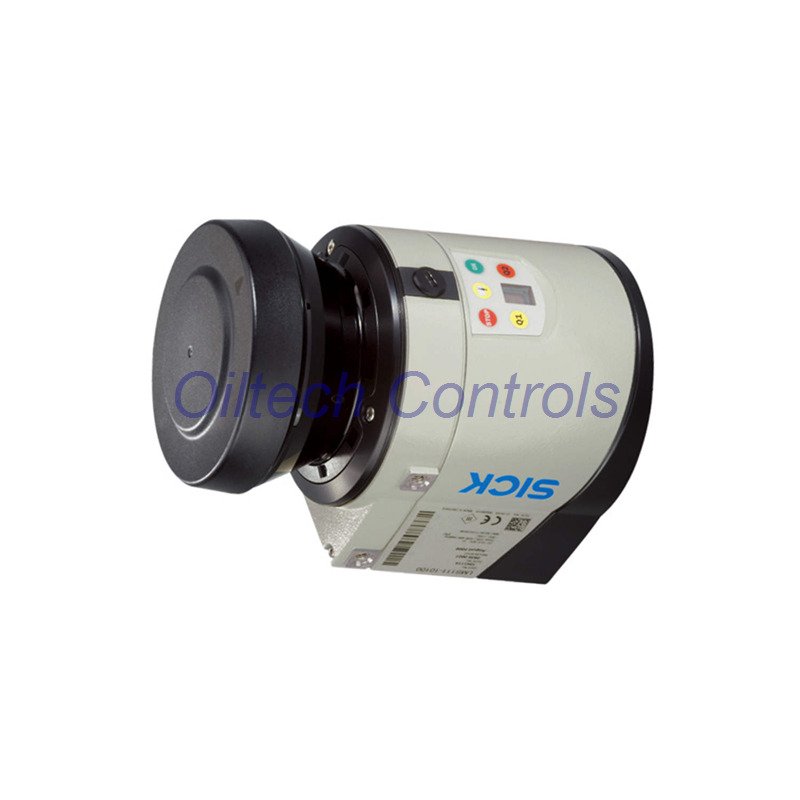

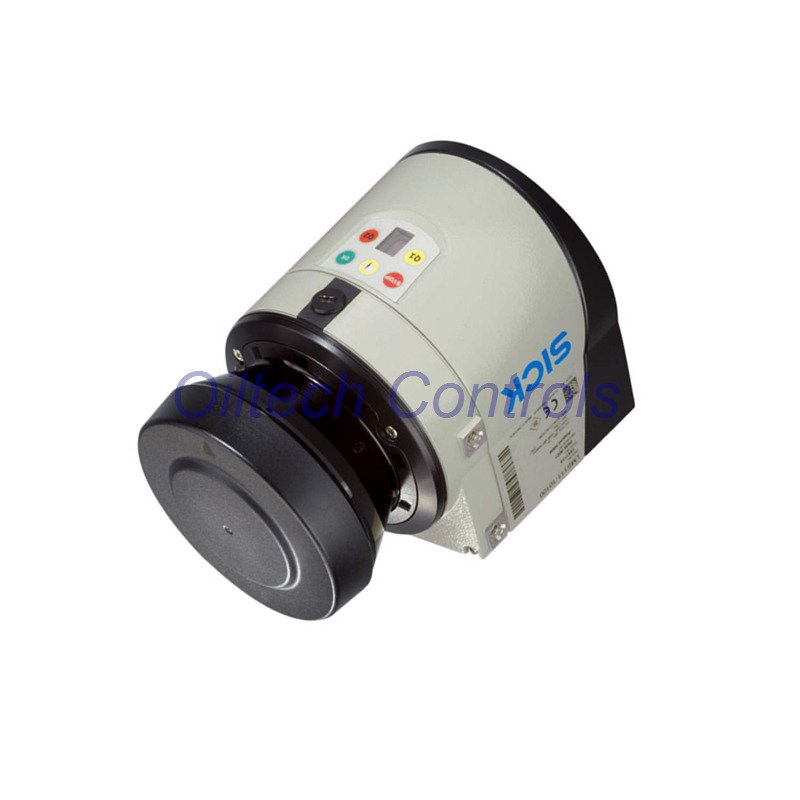

SICK LMS123-10000 2D LiDAR Security Sensor Overview

• The LMS123-10000 from SICK belongs to the LMS1xx LiDAR sensor family.
• This sensor supports indoor security, object protection, and area monitoring tasks.
• The device delivers stable distance data for localization and position detection.
• Oiltech Controls recommends this model for infrastructure and asset protection.

Core Selling Points

• Wide Coverage: A 270° horizontal scan reduces blind zones.
• High Accuracy: Systematic error stays within ±30 mm.
• Fast Output: Response time reaches 20 ms for real-time monitoring.
• Flexible Interfaces: Ethernet, RS-232, and CAN simplify system integration.

Optical and Scanning Performance

• Light Source: Infrared laser with 905 nm wavelength.
• Laser Class: Class 1 according to IEC 60825-1.
• Scanning Angle: 270 degrees horizontal coverage.
• Angular Resolution: 0.25° and 0.5° selectable.
• Scanning Frequency: 25 Hz or 50 Hz.
• Working Range: From 0.5 m up to 20 m.
• Echo Evaluation: Two echoes per scan cycle.

Distance Accuracy and Detection

• Detection Range: 18 m at 10% reflectivity.
• Maximum Range: 20 m at 90% reflectivity.
• Statistical Error: Typical value of 12 mm.
• Detectable Objects: Supports nearly all object shapes.
• Fog Correction: Built-in compensation improves reliability.

Electrical and Mechanical Specifications

• Supply Voltage: 9 VDC to 30 VDC.
• Power Consumption: Typical 8 W.
• Connection Type: System plug with screw terminal block.
• Housing Color: Signal white RAL 9003.
• Enclosure Rating: IP65 for dust and water resistance.
• Weight: Approximately 1.1 kg.
• Dimensions: 105 × 102 × 152 mm.

Interfaces and I/O Capabilities

• Ethernet: TCP/IP with 10/100 MBit/s data rate.
• Serial Interface: RS-232 for service access.
• CAN Interface: Supports output expansion.
• Digital Inputs: Four configurable inputs.
• Digital Outputs: Three outputs including two relays.

Environmental Resistance

• Operating Temperature: 0 °C to +50 °C.
• Storage Temperature: –30 °C to +70 °C.
• Ambient Light Immunity: Up to 40,000 lux.
• Vibration Resistance: Meets EN 60068-2-6.
• Shock Resistance: Meets EN 60068-2-27.

Reliability and Service Life

• MTBF: Exceeds 100 years under normal conditions.
• MTTFD: Greater than 100 years.
• Warranty: Includes a standard 12-month warranty.

Packaging and Shipping

• The package includes one LiDAR sensor and protective packing materials.
• Oiltech Controls ships worldwide using FedEx, UPS, or DHL.

Professional FAQ

• Does the LMS123-10000 support security field evaluation?
• The sensor includes integrated field evaluation with up to ten field sets.
• Can this LiDAR sensor work for indoor navigation?
• Yes, it supports localization and 2D position determination.
• Is the LMS123-10000 a certified safety scanner?
• No, the device does not qualify as a machine safety component.
• How many evaluation cases can run at the same time?
• The system supports up to ten simultaneous evaluation cases.
• Does the device provide visual status feedback?
• A seven-segment display and LEDs show status and contamination alerts.
