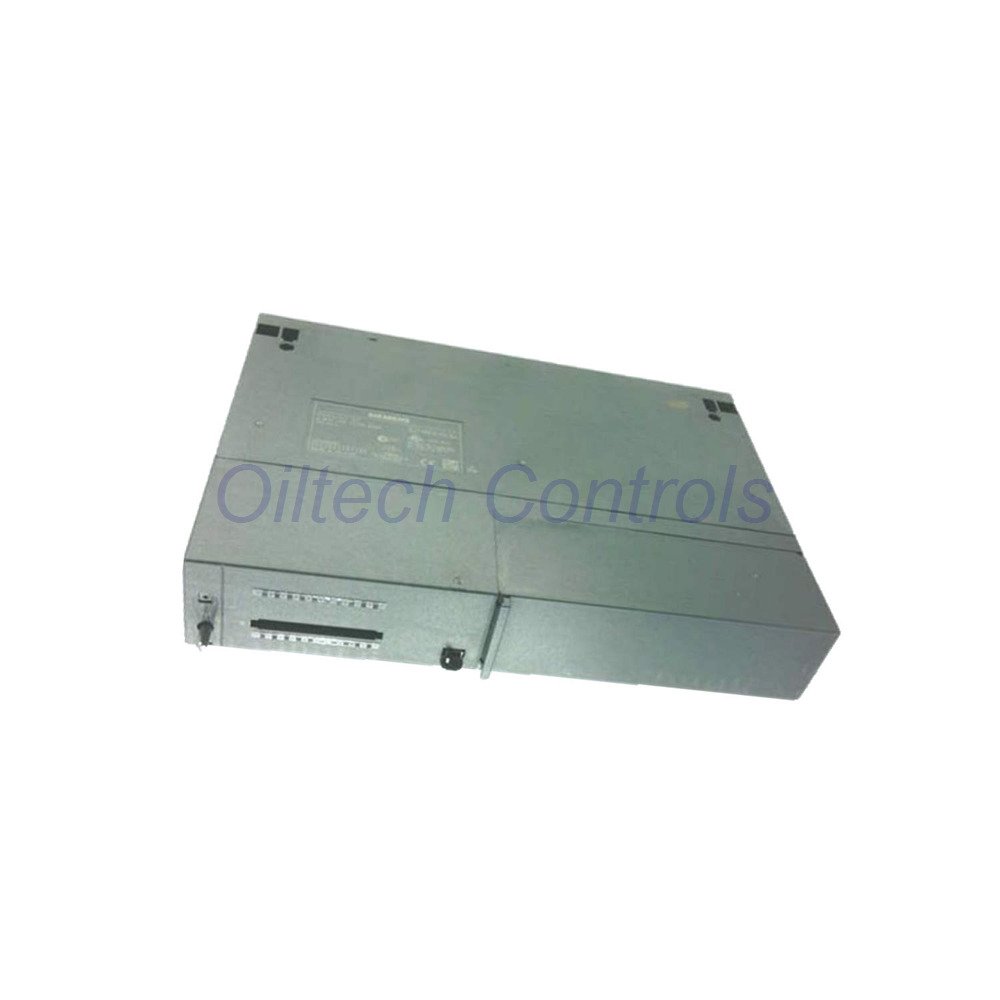

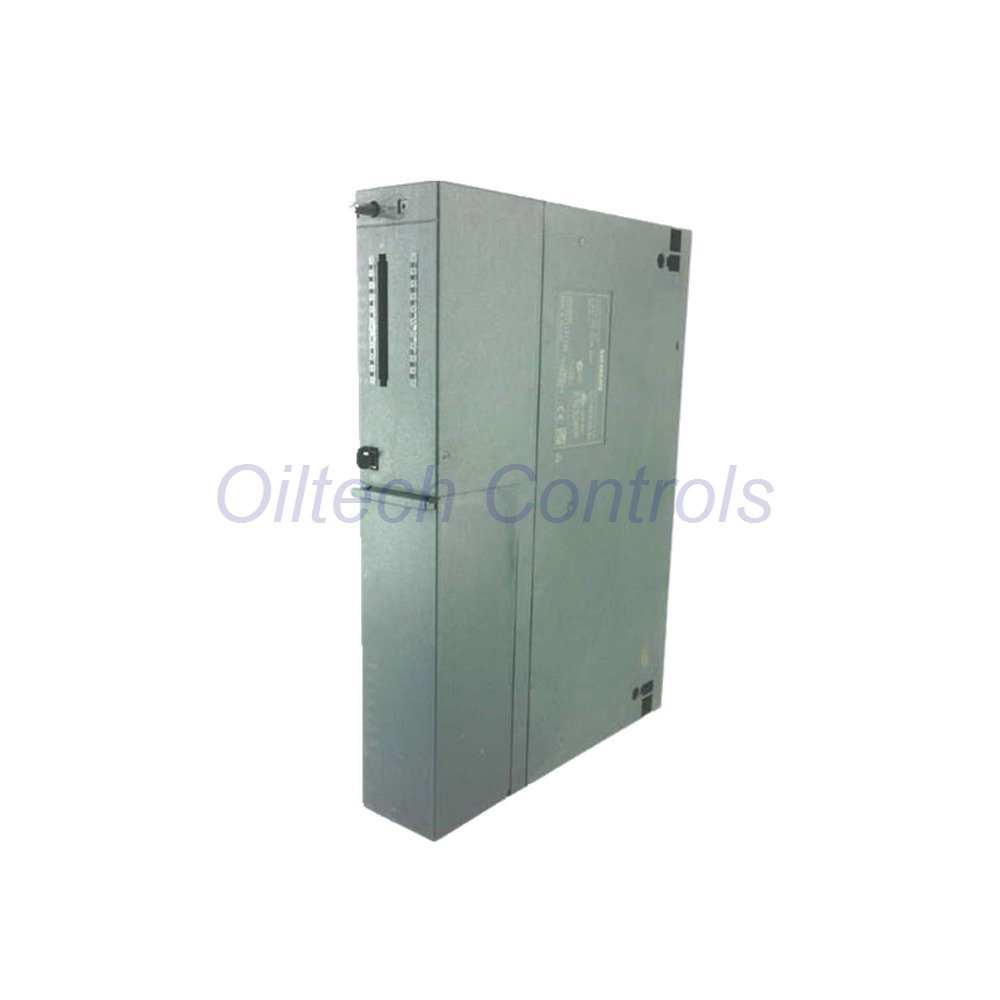

Siemens 6ES7417-4XT05-0AB0 CPU 417-4 High-Performance PLC

Overview: Siemens 6ES7417-4XT05-0AB0

The 6ES7417-4XT05-0AB0 is the definitive replacement CPU for complex SIMATIC S7-400 automation systems. This powerhouse module delivers 30 MB of work memory, split equally between code and data. It excels in high-speed environments requiring precise isochronous PROFIBUS DP communication and multicomputing capabilities. For technical inquiries, reach out via info@oiltechcontrols.com or +86 158 8020 0923.

Core Technical Specifications

• Processor Performance: 18 ns bit/word operation time.
• Memory Architecture: 30 MB integrated (15 MB code, 15 MB data).
• Expansion: Supports FEPROM/RAM cards up to 64 MB.
• Connectivity: 1x MPI/DP interface, 1x PROFIBUS DP, 2x optional plug-in IFM ports.
• Network Capacity: Supports up to 125 DP slaves per interface.
• System Scale: Manage up to 131,072 digital and 8,192 analog channels.
• Power Efficiency: Typical power loss of 7.5 W.

Oiltech Controls’s Insight

• The 6ES7417-4XT05-0AB0 provides unmatched stability for legacy-to-modern migrations.
• It is the preferred choice for large-scale process control systems (DCS) where uptime is critical.
• The modular interface design allows for custom fieldbus expansions, reducing hardware overhead.
• Optimized for motion control tasks requiring 1 ms isochronous cycle times.

Typical Industrial Applications

• Large-scale manufacturing assembly lines.
• Automated logistics and high-speed sorting centers.
• Chemical processing plants.
• Power generation control and grid management systems.
• Complex packaging machinery with multi-axis synchronization.

Logistics and Quality Guarantee

• Shipping Lead Time: Orders are dispatched within 24-28 hours.
• Global Carriers: Reliable delivery via FedEx, UPS, and DHL.
• Warranty Policy: Includes a comprehensive 12-month quality guarantee.
• Support: Our team at Oiltech Controls ensures all units are rigorously inspected.

Professional FAQ

• Q: Can I use this CPU in a 4-CPU multicomputing rack?
• A: Yes, the unit supports up to 4 CPUs within an UR1 or UR2 rack configuration.
• Q: Is the 3rd interface plug-and-play?
• A: It requires the installation of the IF 964-DP interface module (6ES7964-2AA04-0AB0).
• Q: How do I ensure data retentivity without a battery?
• A: This model relies on the backup battery for full data retention. Always monitor battery status in your diagnostic buffer.
• Q: What is the benefit of the isochronous mode?
• A: It provides deterministic timing for sensors and actuators, critical for high-speed motion and precision robotics.
• Q: Can I replace an older V4 CPU with this V5.3 unit?
• A: Yes, it serves as a robust replacement, but ensure your STEP 7 project is updated to V5.3 SP2 or higher.
