Product Introduction

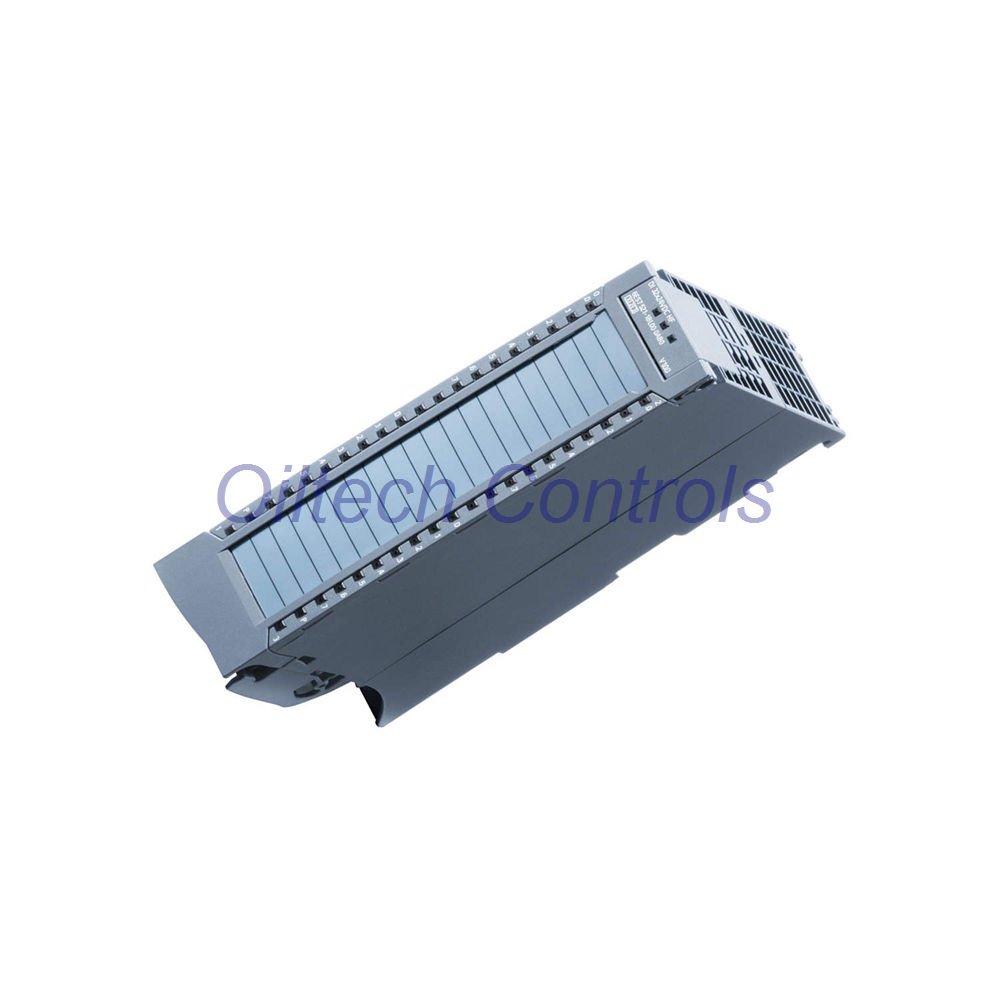

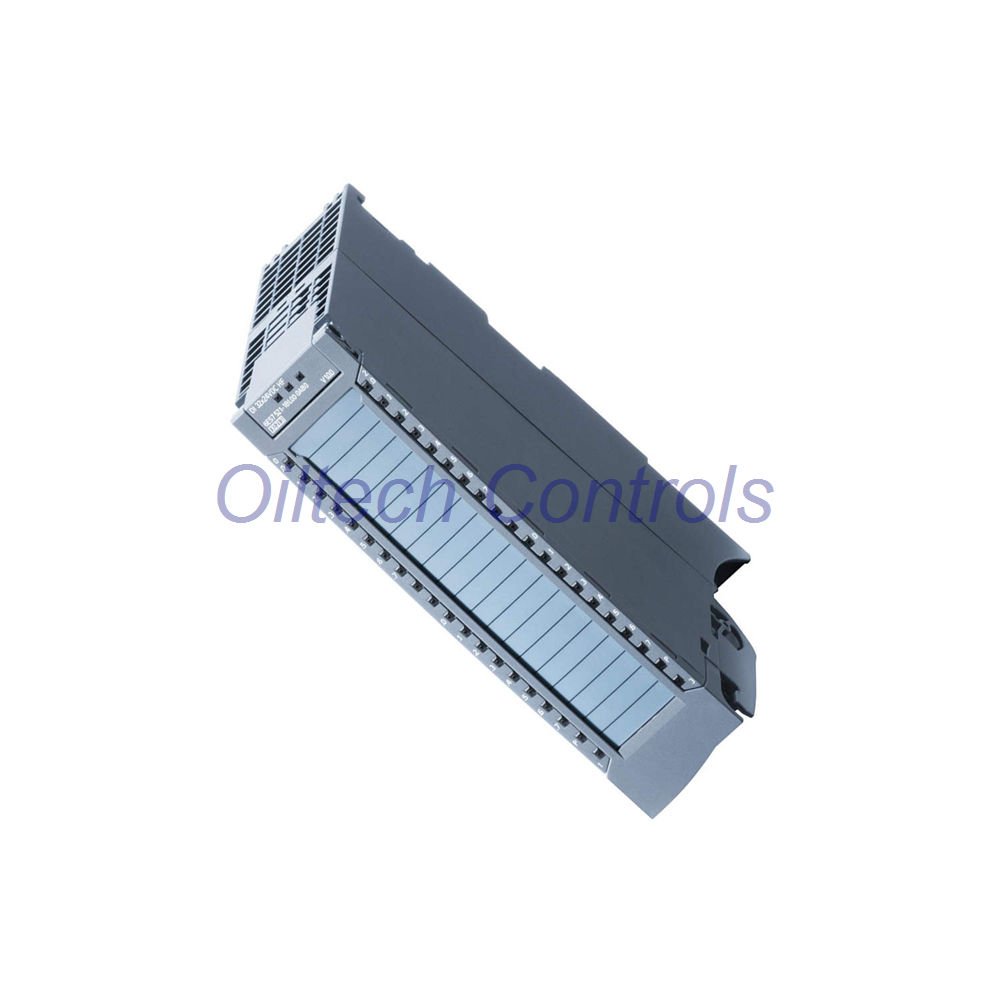

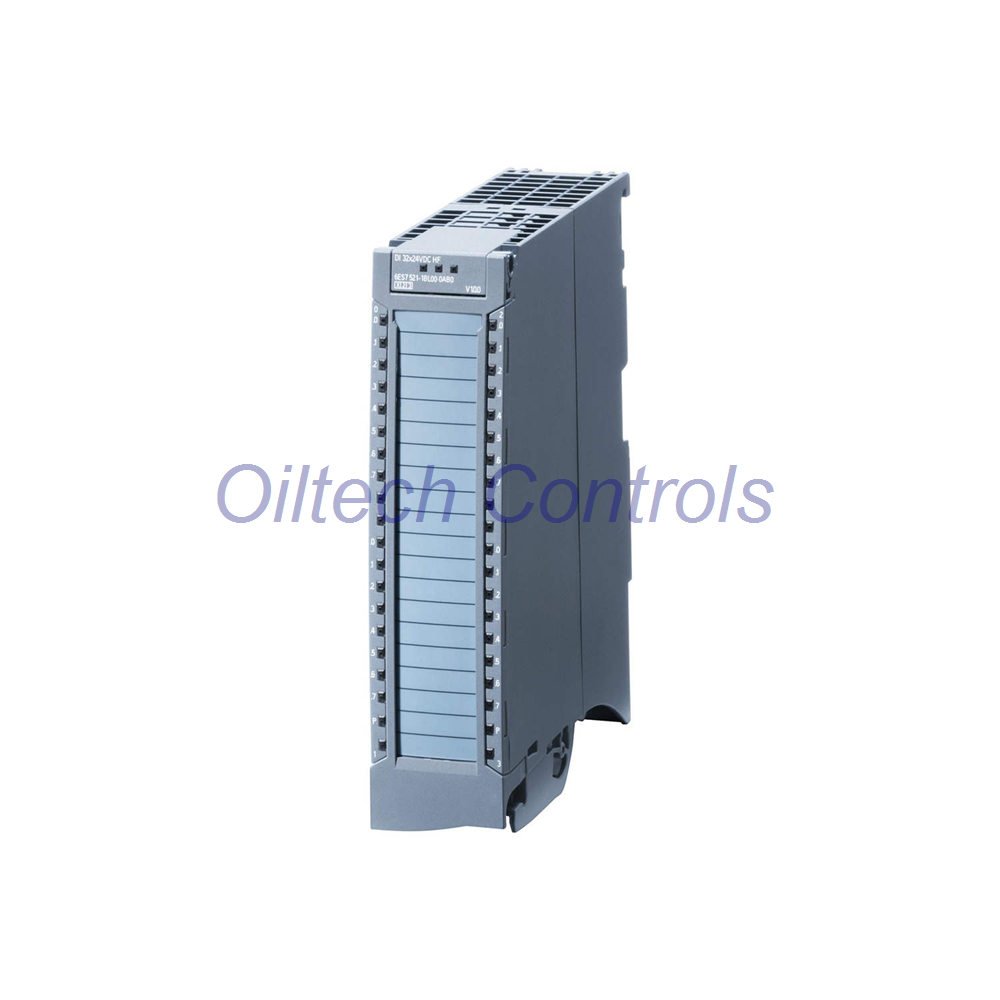

6ES7521-1BL00-0AB0 is a SIMATIC S7-1500 digital input module. It offers 32 channels for 24 V DC signals. Two inputs work as counters (up to 6 kHz). This HF version supports isochronous mode and prioritized startup. Use it for high-performance automation tasks.
Technical Specifications
| Brand | Siemens |
| Model | 6ES7521-1BL00-0AB0 |
| Series | SIMATIC S7-1500 |
| Module Type | DI 32x24VDC HF |
| Inputs | 32 digital (type 3 per IEC 61131) |
| Counter Inputs | 2 (max. 6 kHz, 32-bit) |
| Rated Voltage | 24 V DC (19.2 .. 28.8 V) |
| Input Delay | 0.05 .. 20 ms (adjustable) |
| Signal “1” | +11 to 30 V (typ. 2.5 mA) |
| Signal “0” | -30 to +5 V |
| Power Loss | typ. 4.2 W |
| Backplane Bus Power | 1.1 W |
| Max Cable Length | shielded 1000 m / unshielded 600 m |
| Ambient Temp (horiz.) | -30 .. 60 °C |
| Vertical Install | -30 .. 40 °C |
| Altitude | max. 5000 m (see manual for >2000 m) |
| Dimensions (WxHxD) | 35 x 147 x 129 mm |
| Weight | approx. 260 g |
Key Features & Diagnostics
- Diagnostics – supply voltage monitoring, wire-break (I < 350 µA), and channel status LEDs.
- Interrupts – hardware interrupt and diagnostic alarm.
- Isochronous mode – min. filtering time 80 µs (50 µs filter), bus cycle 250 µs.
- Protection – reverse polarity protection, 707 V DC isolation test.
- Firmware – V2.2.1, upgradeable, HW status from FS04.
- I&M data – I&M0 to I&M3 supported.
Installation & Commissioning
- Front connector (screw or push-in) – order separately.
- Horizontal / vertical installation with wide temperature range.
- Easy wiring – 2-wire sensors with quiescent current ≤1.5 mA.
- Parameterization via STEP 7 TIA Portal V13 SP1 or higher.
- GSD support – PROFIBUS V1.0 / V5.1, PROFINET V2.3.
- LED diagnostics – RUN, ERROR, PWR, channel status, and module diagnostics.
Compatibility & Certifications
- Engineering – TIA Portal V13 SP1 / STEP 7 V5.5 SP3.
- Safety – not suitable for safety functions.
- Standards – IEC 61131 type 3, UL, CE (refer to manual).
- Ambient – -30 °C operation, altitude up to 5000 m.
Typical Applications
- High-speed digital input capture in factory automation.
- Counting and monitoring in conveyor systems.
- Integration in S7-1500 PLC systems for process control.
- Retrofit or upgrade of existing 24 V DC I/O panels.
Diagnostic Capabilities
- Channel-specific red LED for fault indication.
- Wire-break detection at I < 350 µA.
- Supply voltage monitoring with green PWR-LED.
- Module diagnostics via red ERROR LED.
- Hardware interrupt for time-critical events.
FAQ – Quick Answers
- Q: Counter max frequency? A: 6 kHz (FS04, FW V2.2.1+).
- Q: Can I use unshielded cable? A: Yes, up to 600 m.
- Q: Does it support oversampling? A: No.
- Q: Is front connector included? A: No, order separately.
- Q: Firmware upgradable? A: Yes.
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spares.
- Global shipment via FedEx, UPS, DHL.
- Tested industrial surplus and refurbished options.
- 12-month warranty on all products.
- Technical verification before shipment.
- Support for obsolete control systems.
- Fast response and reliable after-sales.
Contact us: info@oiltechcontrols.com | +86 158 8020 0923 (WhatsApp)
Packaging: Anti-static bag, industrial carton. Includes module only (connector sold separately).
Delivery: Shipped via FedEx, UPS, or DHL – tracking provided.
Warranty: 12 months against defects in material or workmanship.
