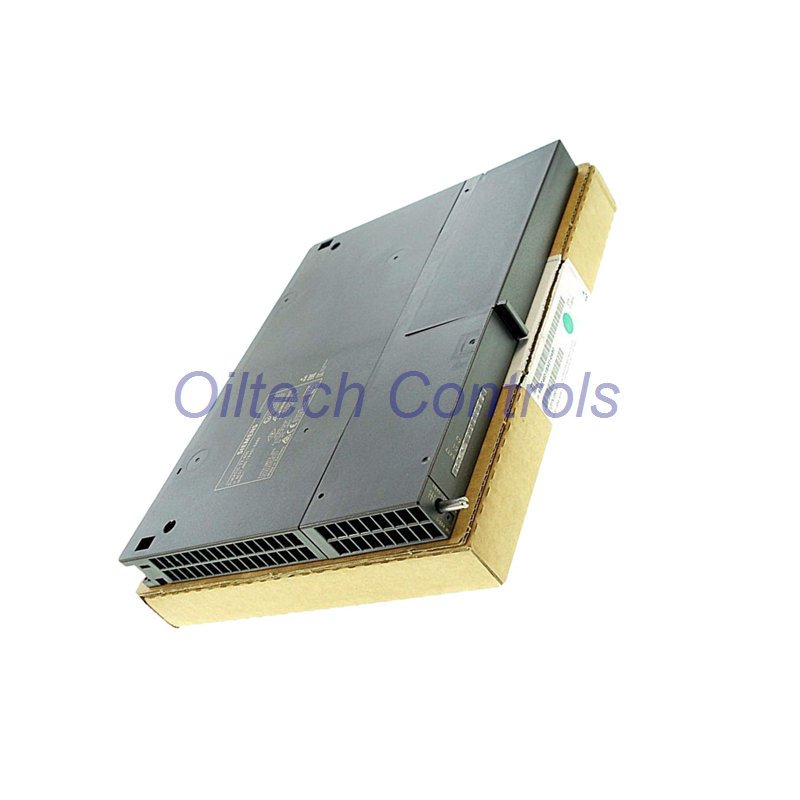

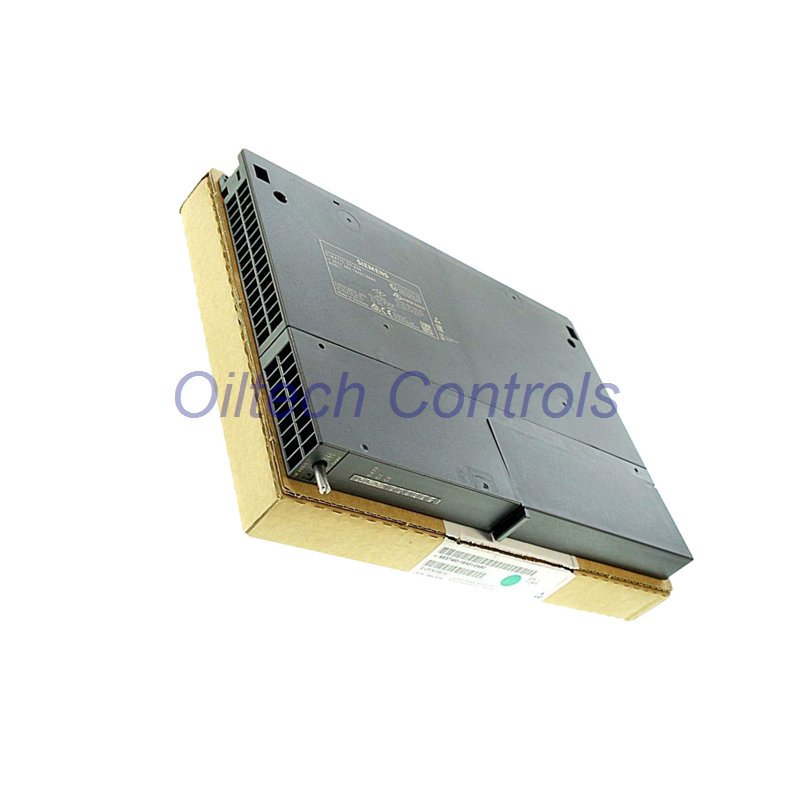

6ES7460-1BA01-0AB0 SIMATIC S7-400 Interface Module
The Siemens 6ES7460-1BA01-0AB0 Send IM 460-1 interface module is designed for central coupling with PS transfer and works without C bus. It supports stable rack-to-rack communication in S7-400 systems. Comes with a 12-month warranty and fast worldwide courier options (FedEx / UPS / DHL). For support: info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
Key Technical Highlights
- Backplane current: 85 mA max at 5 V DC
- Power loss: up to 425 mW
- Cable distance between modules: 1.5 m max
- Width: 25 mm for tight control cabinets
- Height: 290 mm | Depth: 280 mm
- Approximate weight: 600 g
- Optimized for stable PS transfer communication
Extended Operating Details
- Low heat design for long operation cycles
- Stable signal routing between rack sections
- Suited for industrial automation lines and process areas
- Compatible with multiple S7-400 layout strategies
- Simple installation steps for field technicians
Core Benefits & Selling Points
- Compact footprint reduces panel space usage
- Low power draw helps reduce electrical load
- Works well in 24/7 runtime environments
- Reliable signal handling for controller communication
- Designed for direct rack integration without C bus
Warranty & Shipping
- 12 months warranty standard
- Courier options: FedEx, UPS, DHL worldwide
- Secure packing for sensitive automation hardware
- Support line: info@oiltechcontrols.com
- WhatsApp help: +86 158 8020 0923
Experience-Based FAQ
How to confirm if this module is correct for my rack?
Check if your system requires PS transfer without C bus and confirm the 5 V DC backplane compatibility.
Can it support long-distance rack links?
It works up to 1.5 m between interface modules. Longer distances may require design adjustments.
Where is this model used most?
Mainly in S7-400 control cabinets for rack communication in plant, utility, and automation systems.
What should installers watch for?
Mount vertically, confirm power rails, and route cables cleanly to avoid signal interference.
What should I check before purchasing?
Verify part number, cabinet width clearance (25 mm), and confirm no C bus requirement.
