Product Introduction

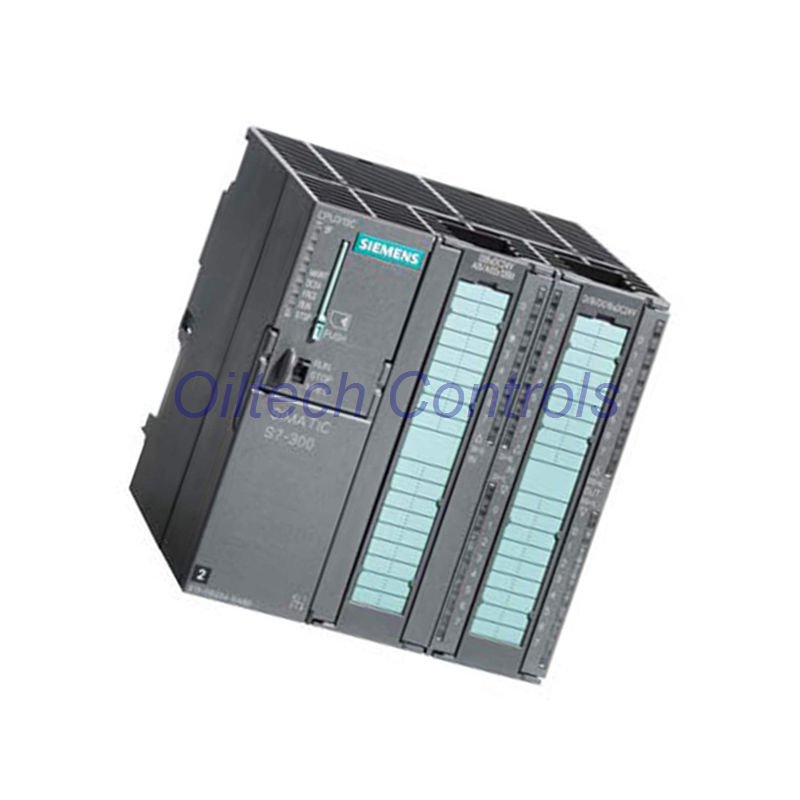

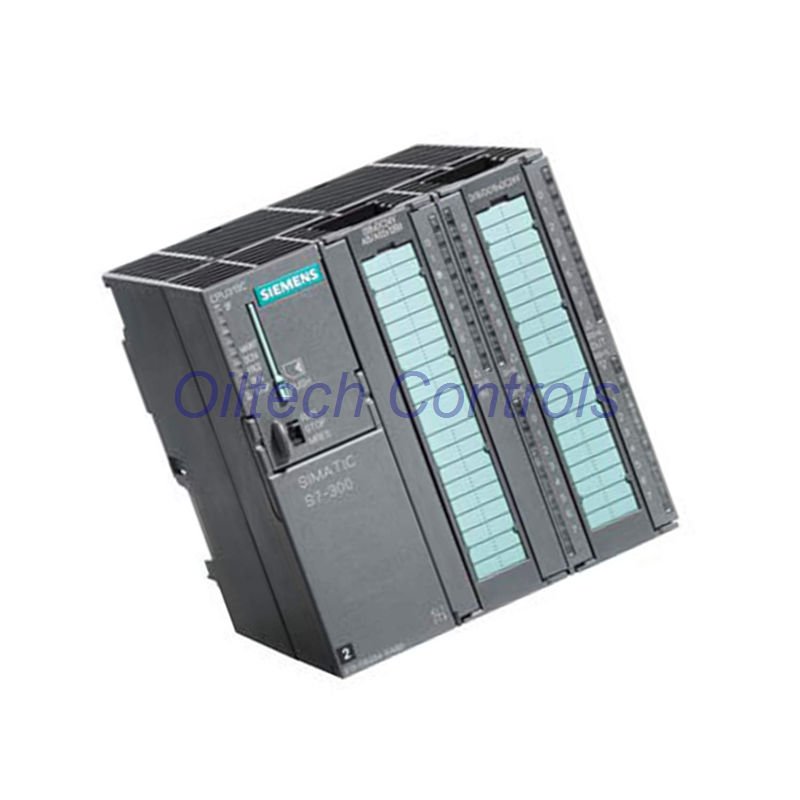

Siemens 6ES7313-5BE01-0AB0 is a compact CPU from the SIMATIC S7-300 series.
It combines control, I/O, and power supply in one unit.
This CPU is ideal for small and mid-size automation systems.
Basic Product Data
- Manufacturer: Siemens
- Series: SIMATIC S7-300
- CPU Type: 313C Compact
- Model Number: 6ES7313-5BE01-0AB0
- Interface: MPI (RS485)
Power Supply & Electrical Values
- Rated supply voltage 24 V DC
- Voltage range 20.4 to 28.8 V DC
- Rated current consumption 700 mA
- No-load current about 150 mA
- Typical power loss 14 W
Memory & Data Handling
- Integrated work memory 32 KB
- Program and data stored together
- Micro Memory Card required
- MMC size up to 8 MB
- Data retention up to 10 years
Processing Performance
- Bit operation time 0.1 µs typical
- Word operation time 0.2 µs typical
- Fixed point math about 2 µs
- Floating point math about 3 µs
- Fast response for control tasks
Integrated Digital I/O
- 24 digital inputs, 24 V DC
- 16 digital outputs, transistor type
- Max output current 500 mA per channel
- Electronic short-circuit protection
- Suitable for sensors and actuators
Integrated Analog I/O
- 4 analog inputs for voltage or current
- 2 analog outputs
- Supports 0–10 V and 4–20 mA
- Pt100 temperature input supported
- 12-bit resolution
High-Speed Functions
- 3 fast counters up to 30 kHz
- 3 frequency measurement channels
- Pulse outputs up to 2.5 kHz
- Integrated PID control function
- Good for motion and speed tasks
Communication Capabilities
- Integrated MPI interface
- Transmission speed up to 187.5 kbit/s
- Up to 8 communication connections
- Supports PG and OP communication
- Easy system diagnostics
Mechanical Information
- Width 120 mm
- Height 125 mm
- Depth 130 mm
- Weight about 660 g
- Fits standard S7-300 racks
Main Product Advantages
- All-in-one compact design
- Reduces cabinet space
- Fast setup and wiring
- Stable Siemens quality
- Long service life
Warranty & Delivery
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
- Worldwide express delivery
Professional FAQ
- Is this CPU good for small machines?
- Yes. It combines CPU, I/O, and power in one unit.
- Do I need extra I/O modules?
- Not for basic tasks. Built-in I/O is often enough.
- Is the memory expandable?
- Work memory is fixed. Load memory uses MMC.
- Can it handle fast signals?
- Yes. The fast counters support up to 30 kHz.
- How do I choose between CPU 313 models?
- Choose compact versions when space is limited.
