Product Overview
The Honeywell TC-FOD161 is a protected 24 Vdc source digital output module. It offers 16 non-isolated channels in one group. The module fits DIN-rail mounting. It suits industrial control cabinets and legacy Honeywell systems. Each channel drives up to 500 mA. ON-state voltage ranges from 10 Vdc to 31.2 Vdc. Response is fast: 0.5 ms OFF to ON and 1.0 ms ON to OFF. The module is 100% dielectric tested at 850 Vdc for 1 s. It supports demanding switching loads with 1.5 A surge for 50 ms every 2 s. Use it for reliable discrete output control in process and factory automation.
Technical Specifications
| Brand | Honeywell |
| Model | TC-FOD161 |
| Series | TC Series Digital Output Module |
| Module Type | 24 Vdc Source Digital Output, Protected |
| Number of Channels | 16 (1 group of 16, non-isolated) |
| Module Location | DIN-rail mounted |
| ON-State Voltage | 10 Vdc min, 24 Vdc nominal, 31.2 Vdc max |
| ON-State Current | 1 mA min per channel, 500 mA max per channel |
| OFF-State Voltage Drop | 0.5 Vdc max |
| OFF-State Leakage | 0.5 mA max |
| Surge Current | 1.5 A for 50 ms, repeatable every 2 s |
| Dielectric Withstand | 100% tested at 850 Vdc for 1 s, user to system |
| Isolation | No isolation between individual channels |
| Response Time | OFF to ON 0.5 ms max; ON to OFF 1.0 ms max |
| Flexbus Current | 80 mA max |
| Power Dissipation | 5 W @ 31.2 Vdc |
| Thermal Dissipation | 17 BTU/hr @ 31.2 Vdc |
| Indicators | 16 yellow channel status indicators |
| External dc Power | 19.2 to 31.2 Vdc (5% ac ripple), 80 mA |
| Dimensions | 69 mm x 94 mm x 80 mm (2.72 in x 3.7 in x 3.20 in) |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Operating | 30 g peak, 11 ±1 ms pulse width |
| Shock Non-operating | 50 g peak, 11 ±1 ms pulse width |
| Vibration | 5 g @ 10 to 500 Hz per IEC 68-2-6 |
| Wire Size | 12 gauge (4 mm2) stranded max |
| Insulation Rating | 1.2 mm max, 90 C minimum |
| Terminal Screw Torque | 4 to 7 inch-pounds |
Key Performance Highlights
- Fast switching: 0.5 ms OFF to ON and 1.0 ms ON to OFF support quick discrete control loops.
- Strong drive capability: 500 mA per channel handles relays, solenoids and lamps.
- Surge tolerance: 1.5 A for 50 ms every 2 s absorbs inrush current.
- Protected output stage: 850 Vdc dielectric test ensures user-to-system safety.
- Clear status view: 16 yellow indicators show channel state at a glance.
- Wide dc input range: 19.2 to 31.2 Vdc with 5% ac ripple tolerance.
- Rugged environment rating: 30 g shock and 5 g vibration per IEC 68-2-6.
- Compact DIN-rail form: 69 mm x 94 mm x 80 mm saves panel space.
Installation Guide
- Mount the TC-FOD161 on a standard DIN rail inside the control cabinet.
- Use 12 gauge stranded wire maximum. Keep insulation at 1.2 mm max and 90 C rated.
- Tighten terminal screws to 4 to 7 inch-pounds. Do not over-torque.
- Connect external dc power in the 19.2 to 31.2 Vdc range. Keep ripple below 5% ac.
- Confirm the Flexbus current draw stays at or below 80 mA.
- Check all 16 yellow indicators after power-up to verify channel state.
Commissioning and Maintenance
- Verify OFF-state leakage stays at or below 0.5 mA before connecting sensitive loads.
- Measure OFF-state voltage drop. Keep it at or below 0.5 Vdc.
- Watch power dissipation. It reaches 5 W at 31.2 Vdc. Provide adequate cabinet airflow.
- Keep ambient temperature between 0 and 55 C during operation.
- Inspect terminal torque and wire insulation during scheduled maintenance.
- Use the channel indicators to isolate faults quickly during troubleshooting.
Compatibility Notes
- Designed for Honeywell TC series control systems with Flexbus backplane support.
- Non-isolated channel group suits common return architectures. Plan grounding carefully.
- Works with 24 Vdc nominal loads. Confirm load current stays under 500 mA per channel.
- External dc supply must stay within 19.2 to 31.2 Vdc for stable output behavior.
- Contact our team to confirm compatibility with your existing Honeywell rack and CPU.
Certifications
- Agency Certification Groups A, B, C, D certified.
- Class I Division 2 certified.
- Class I Zone 2 Group IIC certified.
- Dielectric withstand tested 100% at 850 Vdc for 1 s.
- Vibration tested to IEC 68-2-6.
Typical Applications
- Discrete output control in process plants and factory automation cells.
- Driving relays, contactors, solenoids and indicator lamps at 24 Vdc.
- Legacy Honeywell system expansion and obsolete control system support.
- Class I Division 2 and Zone 2 Group IIC hazardous area installations.
- Panel builds that need compact 16-channel output density on DIN rail.
Diagnostic Capabilities
- 16 yellow channel status indicators give fast visual fault location.
- Low OFF-state leakage of 0.5 mA max helps detect false load triggering.
- Defined OFF-state voltage drop of 0.5 Vdc max supports clean signal checks.
- Fast 0.5 ms and 1.0 ms response helps trace timing faults in control loops.
- Surge repeatability of every 2 s supports controlled inrush testing.
Why Buy From Oiltech Controls?
- Over 15 years of industrial automation spare parts experience.
- Global shipment support through FedEx, UPS and DHL.
- Tested industrial surplus and refurbished options available.
- 12-month warranty on every order.
- Technical verification before shipment on each unit.
- Support for obsolete control systems and hard-to-find modules.
Packing List and Warranty

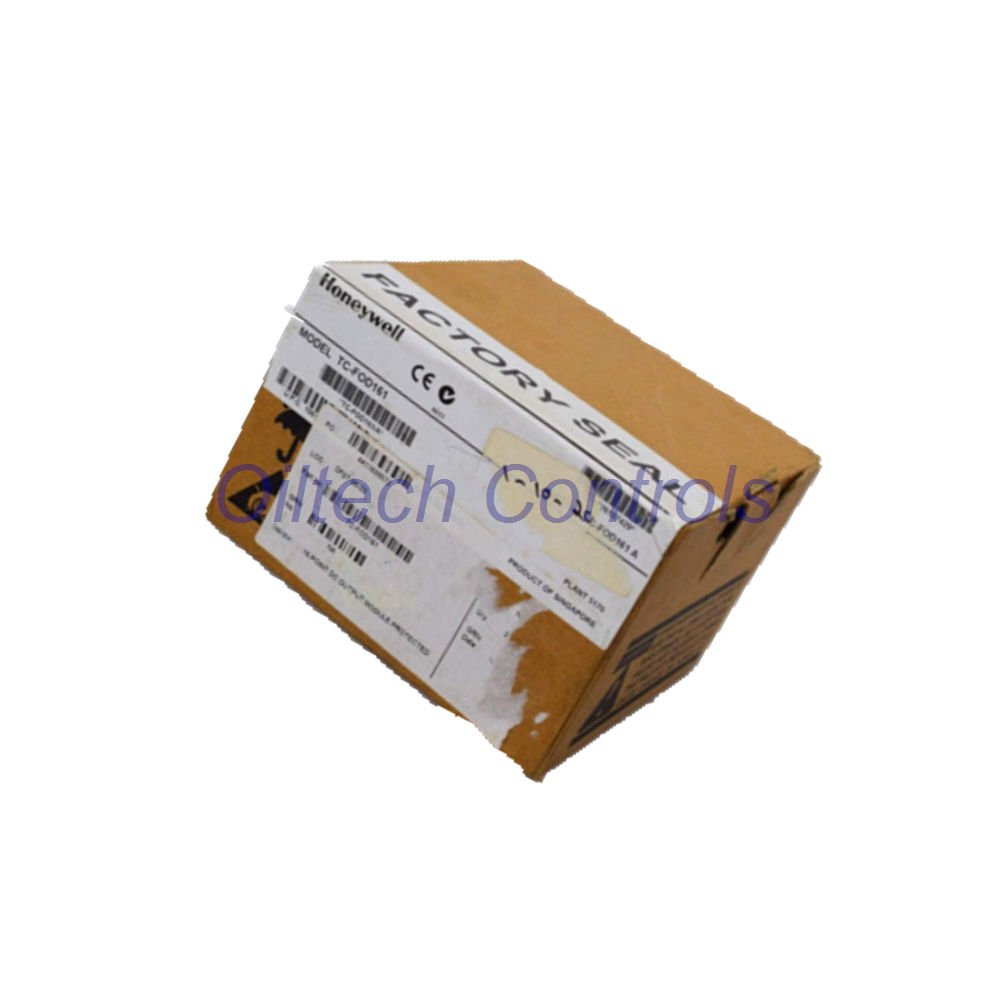

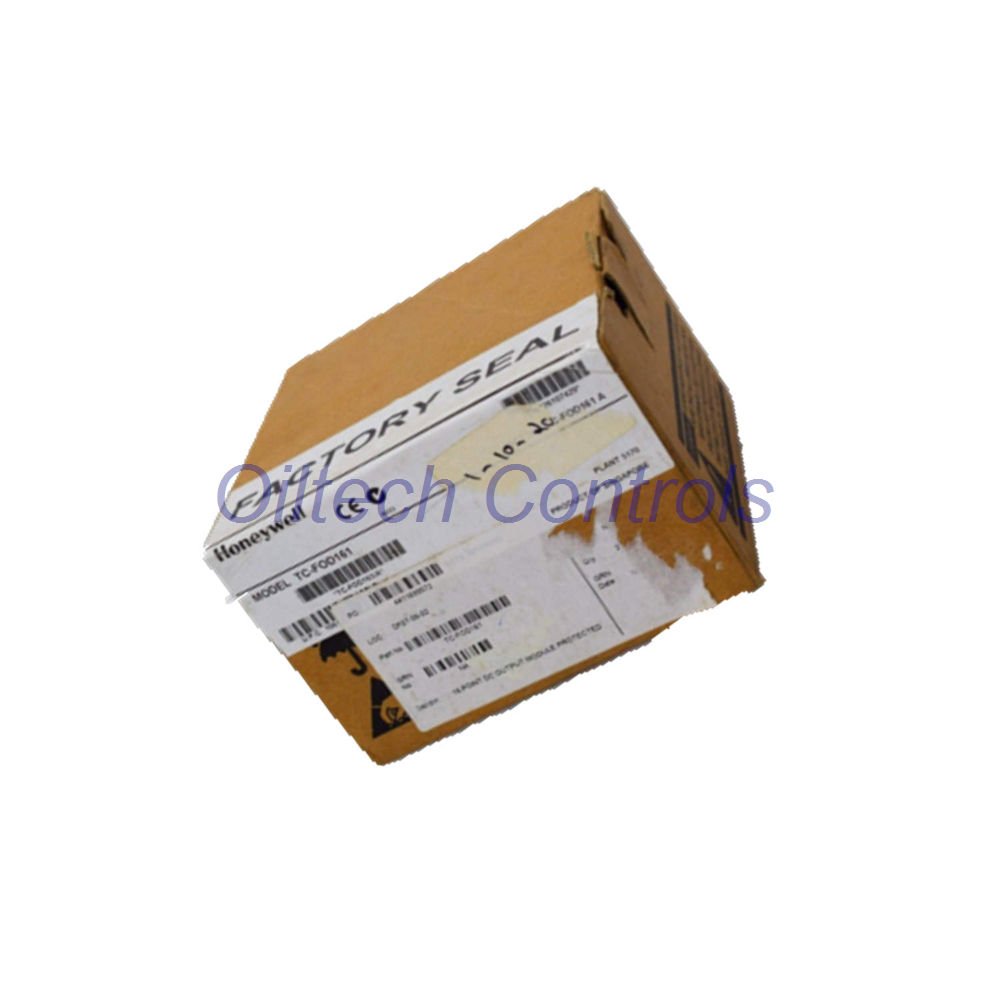

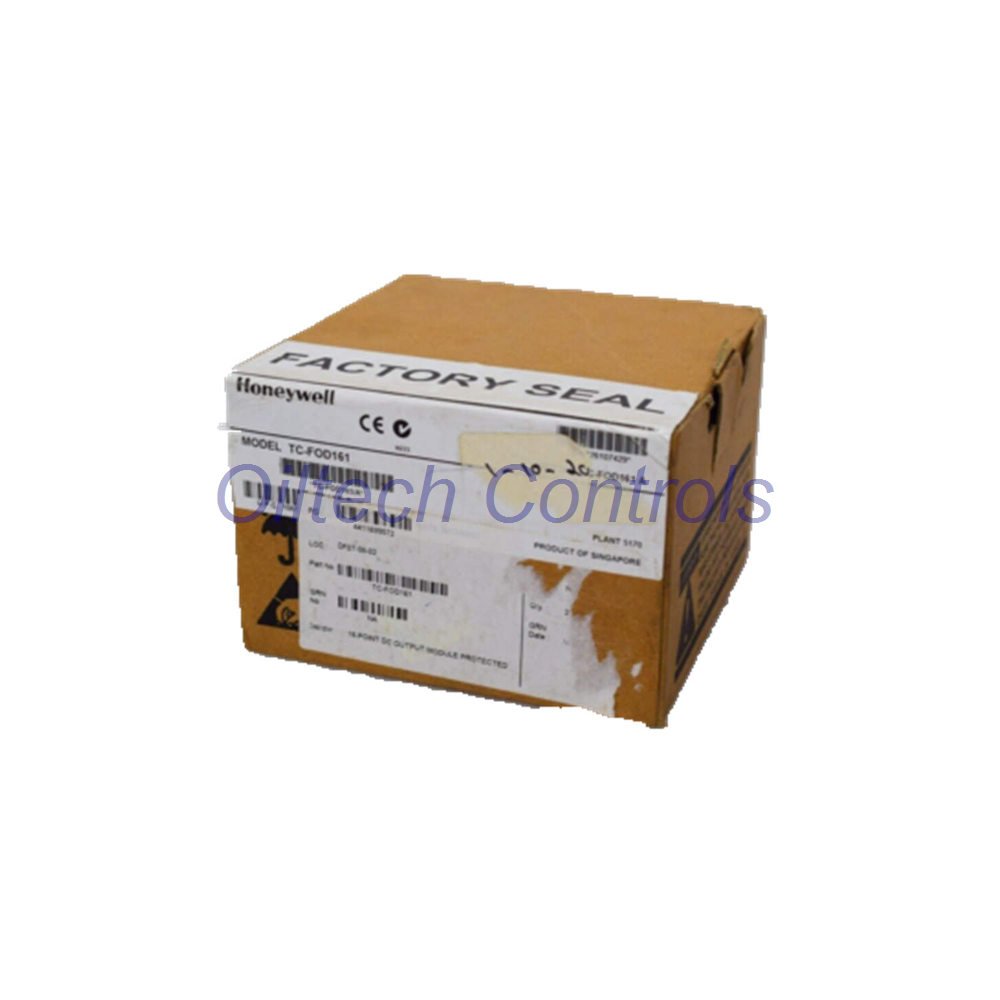

- 1 x Honeywell TC-FOD161 24 Vdc Source Digital Output Module.
- Protective packaging for safe transport.
- Shipping by FedEx, UPS or DHL.
- 12-month warranty included.
FAQ
- Q: How many channels does the TC-FOD161 offer?
A: It offers 16 non-isolated channels in one group. - Q: What is the maximum current per channel?
A: 500 mA per channel. - Q: Are the channels isolated from each other?
A: No. There is no isolation between individual channels. - Q: What is the response time?
A: 0.5 ms max OFF to ON and 1.0 ms max ON to OFF. - Q: What power supply range does it need?
A: 19.2 to 31.2 Vdc with 5% ac ripple. - Q: Is a warranty included?
A: Yes. A 12-month warranty covers each order.
