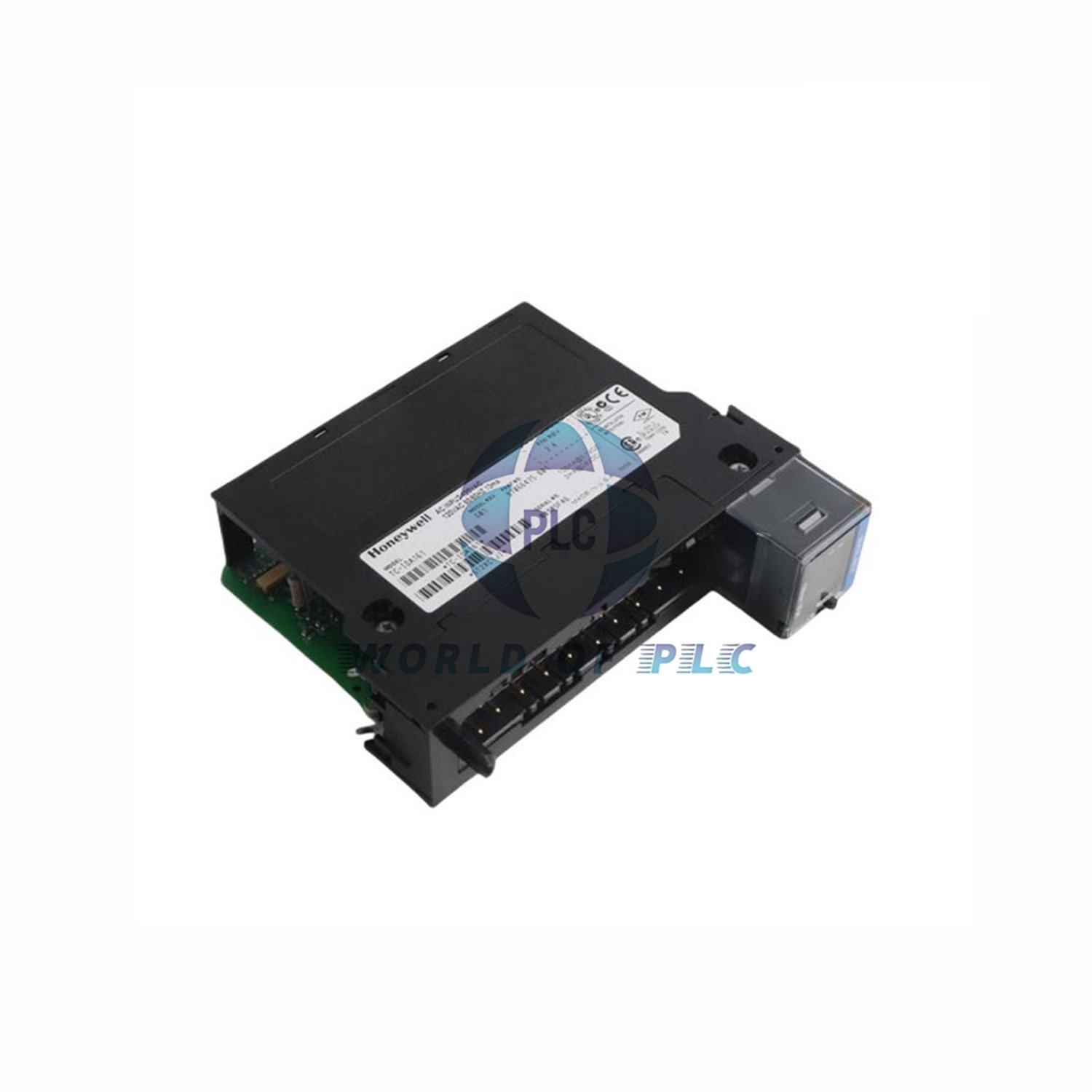

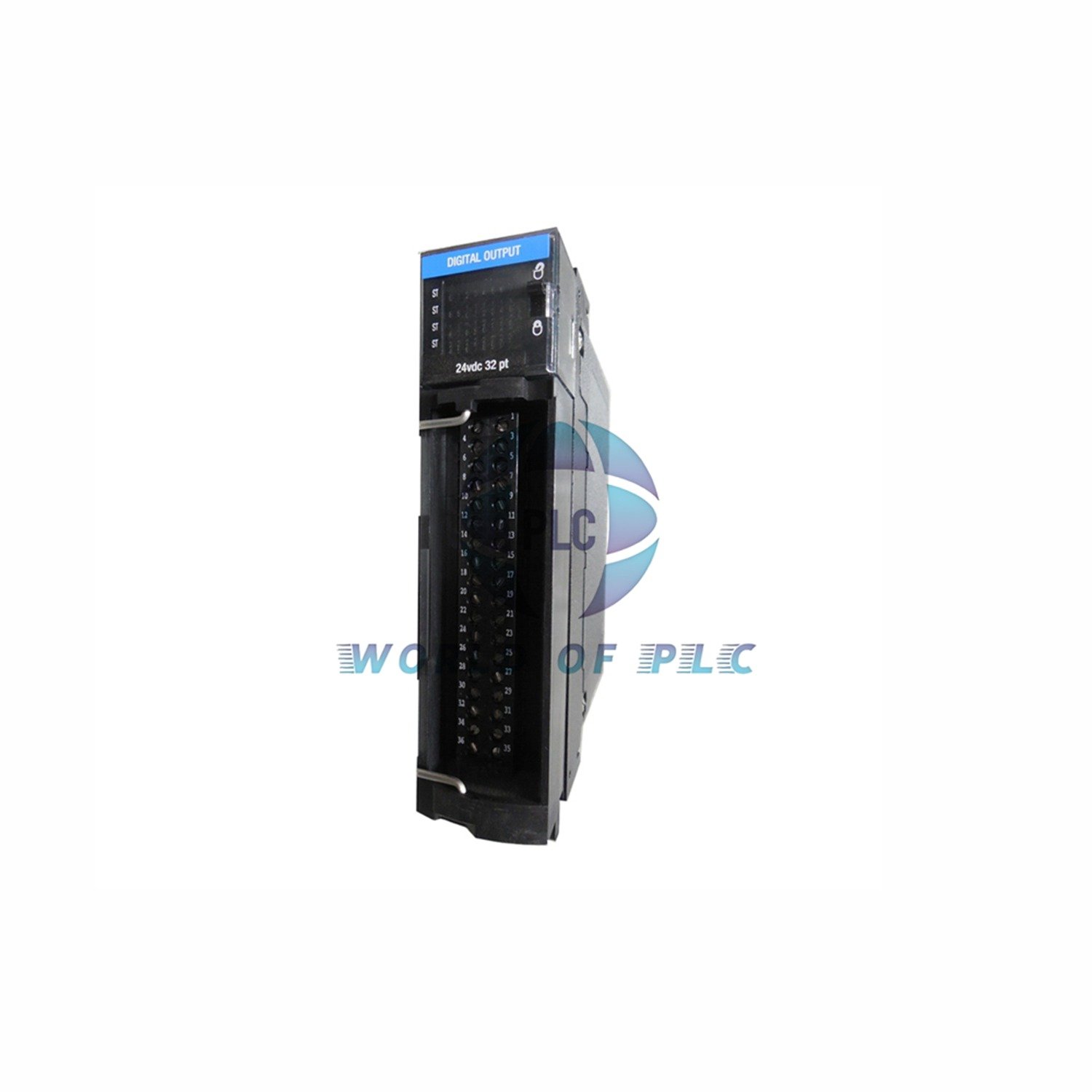

TC-ODD321 24VDC 32-Point Discrete Output Module – Series C I/O
The TC-ODD321 is a 32-point discrete output module for Honeywell Series C I/O. It switches 10–31.2VDC field loads from a 24VDC rail. Outputs split into 16 points per common. Each point sinks or sources up to 0.5A at 50°C. Module current reaches 16A at 50°C with linear derating. Fault states are configurable per point. Group-to-group and user-to-system isolation are 100% tested at 2546VDC for 1s. The module pairs with the TC-TBCH 36-position terminal block.
Why Buy From Oiltech Controls?
- 15+ years of hands-on automation spares supply
- Worldwide dispatch with full tracking
- Tested surplus and refurbished modules in stock
- 12-month warranty on every order
- Technical verification before shipment
- Long-term support for obsolete control systems
Technical Data
- Brand: Honeywell
- Model: TC-ODD321
- Outputs: 32 points, 16 per common
- Voltage range: 10–31.2VDC @ 50°C, 10–28VDC @ 60°C
- Per-point current: 0.5A @ 50°C, 0.35A @ 60°C
- Module current: 16A @ 50°C, 10A @ 60°C
- Surge current: 1A for 10ms, every 2s @ 60°C
- Flash on time: 100µs target, 150µs max
- Minimum load: 3.0mA per output
- On-state drop: 1VDC max at rated current
- Off-state leakage: 0.5mA max per point
- Output delay: 1.0ms max, both directions
- Power dissipation: 6.1W
- Isolation: 2546VDC tested, 250VAC max continuous between groups
- Terminal block: TC-TBCH, 36-position
Oiltech Controls Review
- Each TC-ODD321 runs a point-by-point output check
- On-state drop and leakage measured against datasheet limits
- Isolation verified at rated test voltage
- Fault-state configuration confirmed in program mode
- Terminal block seating and latch condition inspected
Oiltech Controls’s Insight
- Add a fused IFM — the module has no output fusing
- Wrong polarity can damage outputs. Check wiring twice
- Derate current above 50°C or plan cabinet cooling
- Keep loads above 3.0mA to avoid unreliable switching
- Set fault state to OFF unless the process needs hold-last
Compatible Equipment
- Honeywell Series C I/O chassis
- TC-TBCH 36-position terminal blocks
- 24VDC solenoid, relay, and indicator loads
- Systems using 16-point common grouping
- Retrofit and spare-parts programs for installed Series C racks
Shipping, Warranty and Support
- Dispatch in 24–28 hours after confirmation
- Carriers: FedEx, UPS, DHL
- 12-month warranty on functional faults
- Test record available on request
- Reach us at info@oiltechcontrols.com or +86 158 8020 0923 via WhatsApp
FAQ
Q: Can I drive a 0.5A solenoid on every point at once?
A: Not at 60°C. Per-point current derates to 0.35A and module total to 10A. Add up your simultaneous loads before you commit.
Q: What happens if I wire the field supply backwards?
A: The module has no reverse polarity protection. Outputs may be damaged. Verify polarity before first power-up.
Q: Do I need external fusing?
A: Yes. The TC-ODD321 is not fused. We recommend a fused IFM to protect outputs and field wiring.
Q: Which terminal block fits this module?
A: Use the TC-TBCH 36-position terminal block. Confirm the block is fully latched before you apply field power.
Q: How do I pick between surplus and refurbished TC-ODD321?
A: Surplus suits like-new requirements. Refurbished suits budget and lead-time needs. Both carry our 12-month warranty. Share your load profile and we advise.
