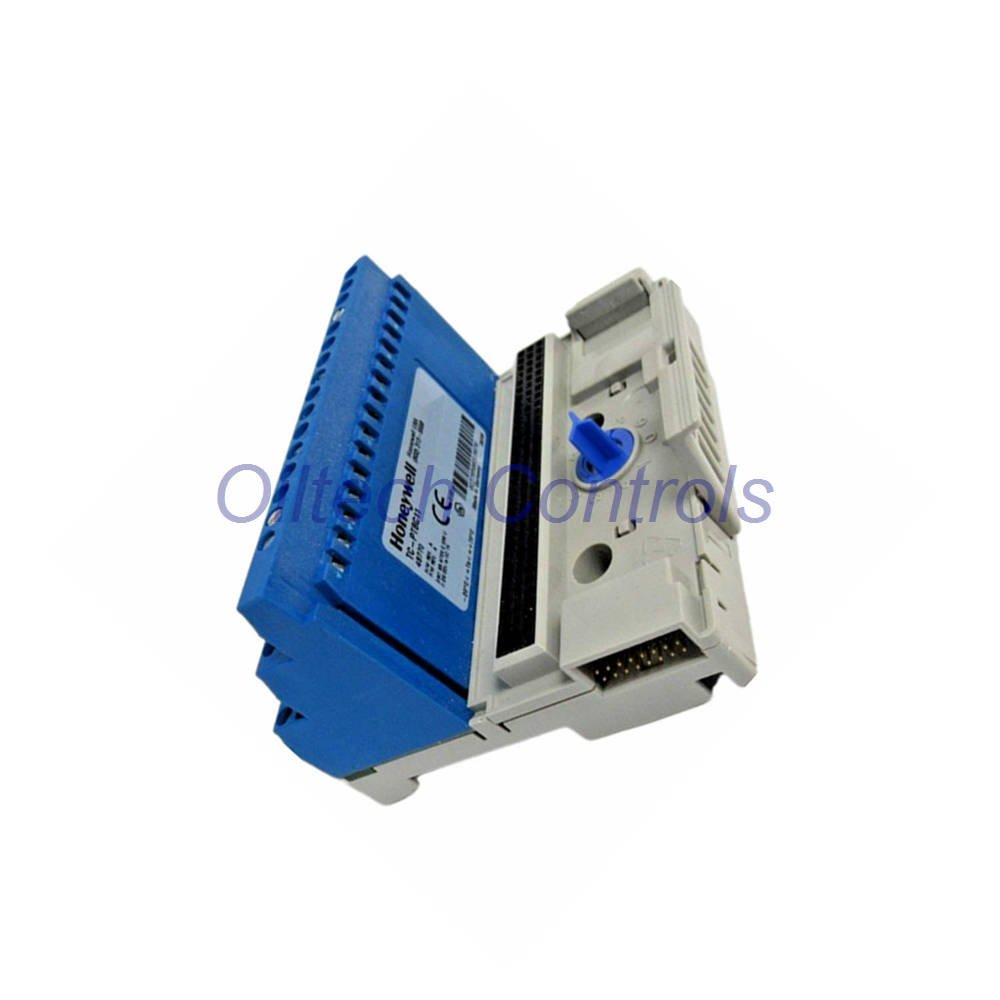

TC-PTBC11 Honeywell Terminal Base with Screw Clamps
Description
The TC-PTBC11 is a Honeywell terminal base for Series 9000 I/O modules. It carries 52 screw terminals in three rows. One row has 16 terminals. Two rows have 18 terminals each. The base is mechanically keyed before wiring. This prevents wrong module insertion. It supports intrinsically safe power supply channels and daisy chain power distribution. The unit fits field wiring in process automation cabinets. It also supports obsolete control systems that still run on Honeywell backplanes.
Key technical strengths
- Input voltage rating (IS channel): Ui 10Vdc
- Input current: Ii 2.5A
- Internal capacitance: Ci 1nF
- Inductance: Li negligible
- Terminals: 52 screw terminals
- Power terminals: +34, -35, +50, -51
- No connection terminals: 36 and 49
- Backplane bus: 16-pole plug SL2 and 16-pole socket BL2
- Isolation: determined by the I/O module used
Technical Specifications
| Brand | Honeywell |
| Model | TC-PTBC11 |
| Series | Terminal Base with Screw Clamps |
| Module type | I/O terminal base |
| I/O capacity | 1 module per terminal base |
| Input voltage (IS channel) | Ui 10Vdc |
| Input current (IS channel) | Ii 2.5A |
| Internal capacitance | Ci 1nF |
| Input/output rating | Ui ≤ 30Vdc, Ii ≤ 100mA, Ci ≤ 1nF |
| Internal bus rating | Ui ≤ 10Vdc, Ii ≤ 400mA, Ci ≤ 1nF |
| Temperature range | -20°C to 70°C operating |
| Storage temperature | -20°C to 100°C |
| Humidity | 95% max, non-condensing |
| Pollution gas test | G3 per ISA-S71.04-1985 |
| Shock test | 15g peak, 11ms |
| Vibration test | 2g at 10Hz to 500Hz per IEC 68-2-6 |
| Protection class | IP20 |
| Weight | 0.228 kg (0.50 lb) |
| Dimensions (H x W x D) | 92 x 94 x 94 mm with module |
| Wire cross section | 0.2 to 2.5 mm², max 2 x 1.5 mm² per terminal |
| Terminal screws | M3, screwdriver 3.5mm x 0.5mm |
| Resolution | module dependent |
| Linearity | module dependent |
| Sensitivity | module dependent |
| Frequency response | module dependent |
| Measurement range | module dependent |
| Interference immunity | EMC per DIN EN 50081-2 and DIN EN 50082-2 |
Installation Guide
- Mount the base in a cabinet with IP54 or better protection for field use.
- Use a copper seal cabinet to reach EMC protection class.
- Install ferrites on power supply and ControlNet coax cables.
- Key the terminal base before wiring the module.
- Use terminals +50 and -51 to daisy chain power to another base.
- Do not connect terminals 36 and 49.
- Use a 3.5mm x 0.5mm screwdriver on M3 terminal screws.
Commissioning and Maintenance
Commissioning is fast. The keyed base stops module mismatch before power up. Screw clamps accept two 1.5 mm² cables per terminal. This speeds field wiring and reduces loose strands. Maintenance teams can swap one I/O module without removing the base. The backplane plug SL2 and socket BL2 keep bus contact stable. Check terminal torque and cabinet seal during scheduled service. The IP20 rating suits clean control rooms. Field installs need a separate IP54 housing.
Compatibility
The TC-PTBC11 works with Honeywell Series 9000 I/O modules. It uses a vendor-specific 16-pole backplane bus. Isolation voltage depends on the I/O module used. Confirm module keying before ordering. This base supports obsolete Honeywell control systems that still run in process plants. It also fits mixed spare-part inventories for legacy DCS and safety loops.
Certifications
- CENELEC Europe: II 2G EEx ia IIC T4
- DIN EN 50014: 1992
- DIN EN 50020: 1997
- DIN EN 50284: 1997
- Climatic conditions: DIN IEC 721
- EMC: DIN EN 50081-2, DIN EN 50082-2, NAMUR NE 21
- ATEX: DMT 98 ATEX E 036 U
- CE conformity: marked for all applicable directives
Packing List and Warranty
- 1 x Honeywell TC-PTBC11 terminal base
- Protective packing for screw terminals
- 12-month warranty
- Shipping by FedEx, UPS, or DHL
Typical Applications
- Process automation cabinets
- Intrinsically safe power supply loops
- Legacy Honeywell DCS upgrades
- Spare-part programs for obsolete control systems
- Field wiring terminals in IP54 housings
Diagnostic Capability
The base is passive. Diagnostics come from the installed I/O module. The keyed design prevents wrong module fit. Stable backplane contacts reduce intermittent bus faults. Clear terminal markings speed fault tracing. The daisy chain power terminals simplify loop checks. Maintenance staff can isolate one base without full cabinet rewiring.
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts
- Worldwide shipment support
- Tested surplus and refurbished options
- 12-month warranty on every unit
- Technical check before dispatch
- Support for obsolete control systems
Contact us at info@oiltechcontrols.com or +86 158 8020 0923. We reply fast and confirm compatibility before you buy.
FAQ
Q: Does the base include an I/O module?
No. One I/O module fits per base and is ordered separately.
Q: Can I use terminals 36 and 49?
No. Leave them unconnected.
Q: What is the protection class?
IP20. Field use needs an IP54 or better housing.
Q: How many terminals does it have?
52 screw terminals in three rows.
Q: Which couriers do you use?
FedEx, UPS, and DHL.
Q: What warranty do you offer?
12 months from delivery.
