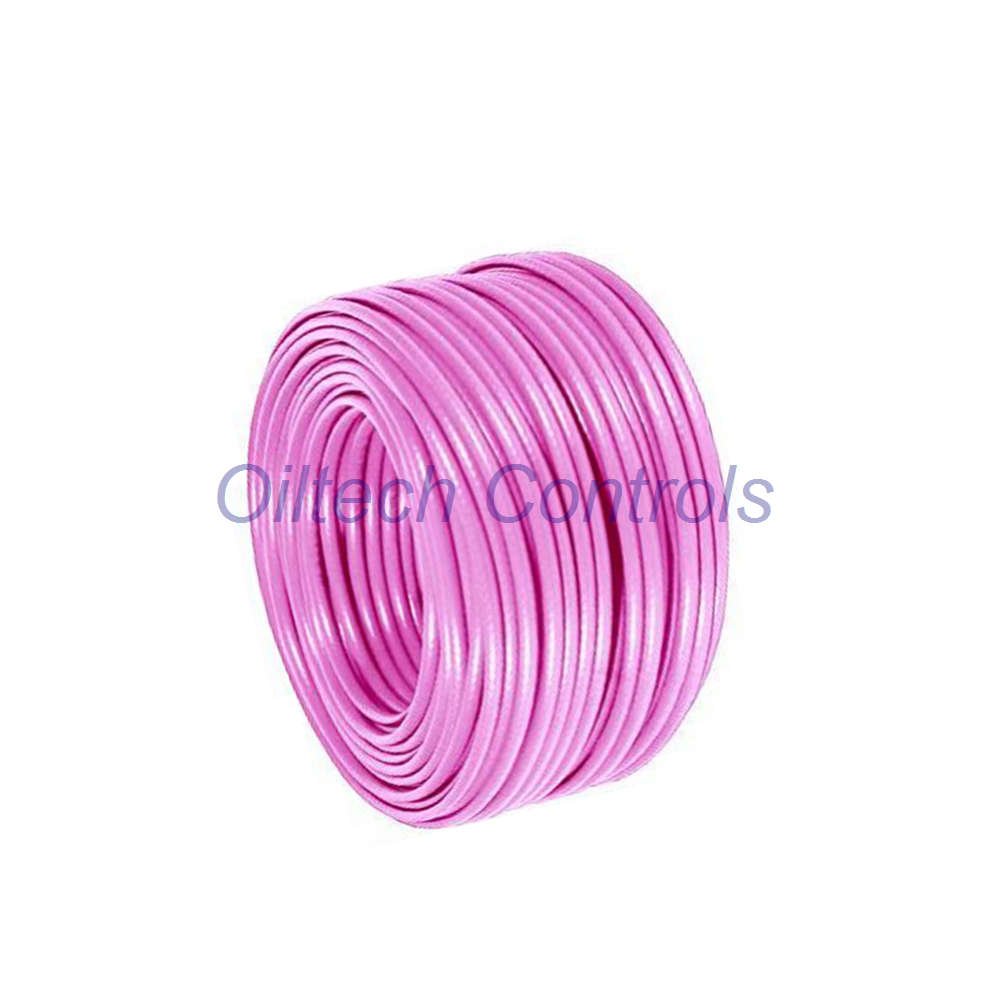

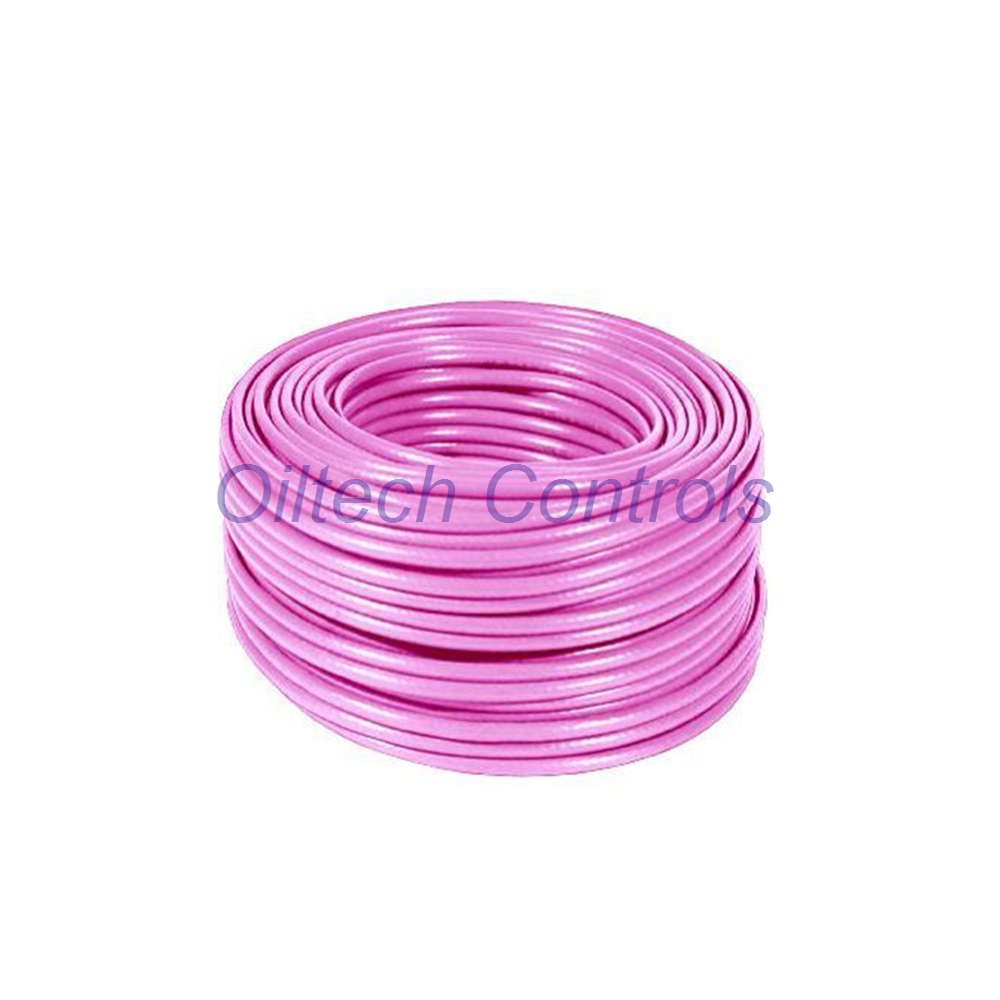

TSXCANCA300 Schneider CANopen Standard Automation Bus Cable 300m
Product Overview
- The TSXCANCA300 cable provides stable data transmission for industrial automation networks.
- This heavy-duty communication medium ensures low-latency signal deployment across long distances.
- It connects distributed control devices over a maximum length of 300 meters.
- The premium copper pairs maintain clean data flow in complex factory conditions.
- It meets strict safety requirements for control room and field tray wiring.
Technical Specifications
- Brand: Schneider Electric
- Model: TSXCANCA300
- Bus Type: CANopen standard architecture
- Cable Length: 300 meters (984.3 feet)
- Net Weight: 24.56 kg (54.15 lbs)
- Flame Resistance: IEC 60332-1 compliant rating
- Environmental Protection: IP20 rating for dry locations
- Ant-Interference Capacity: High-density shielding protects signals against electromagnetic interference
- Temperature Range: -20 to +60 degrees Celsius standard operating limit
- Frequency Response: Optimized for high-speed transmission up to 1 Mbps bandwidth
- Sensitivity and Linearity: Premium copper conductors prevent signal degradation over long runs
- Measurement and Resolution: Precise physical spacing maintains characteristic impedance across the spool
- Certification: CE marked for safety compliance
- Country of Origin: Italy
System Compatibility and Applications
- Perfect for Modicon programmable logic controllers and variable speed drives.
- Integrates seamlessly with multi-vendor industrial networks using the CANopen protocol.
- Connects remote input and output modules to central processing units.
- Ideal for automotive assembly lines and automated material handling systems.
- Works reliably in high-speed packaging machinery and sorting systems.
Installation, Diagnostics and Maintenance
- Maintain the minimum bending radius during conduit pull operations.
- Keep bus communication wires separate from high-voltage power lines.
- Install proper termination resistors at both physical ends of the trunk line.
- Test total loop resistance before you commission the industrial network.
- Inspect the external jacket annually for physical wear or chemical exposure.
- Built-in diagnostic support allows quick troubleshooting with standard network analyzers.
Shipping, Package List and Warranty
- Package Contents: One full spool of TSXCANCA300 cable.
- Shipping Methods: Express delivery via FedEx, UPS, and DHL carriers.
- Package Weight: 24.560 kg packaged weight.
- Package Dimensions: 33.500 cm Height by 39.500 cm Width by 39.500 cm Length.
- Warranty Term: Includes a comprehensive 12-month quality assurance warranty.
Frequently Asked Questions
- Can I cut this cable into shorter segments? Yes, engineers can cut the 300m spool into custom drop lines.
- Does this cable require specific connectors? It fits standard SUB-D 9-pin links and terminal blocks.
- Is this cable suitable for wet environments? No, the IP20 rating requires dry containment or protective panels.
Documentation and Technical Support
- Please access our technical library to verify wiring diagrams and layout rules.
- Download the official installation manual and technical datasheet here.
- Send your bulk order inquiries to info@oiltechcontrols.com today.
- Contact our engineering team via WhatsApp at +86 158 8020 0923 for instant support.
