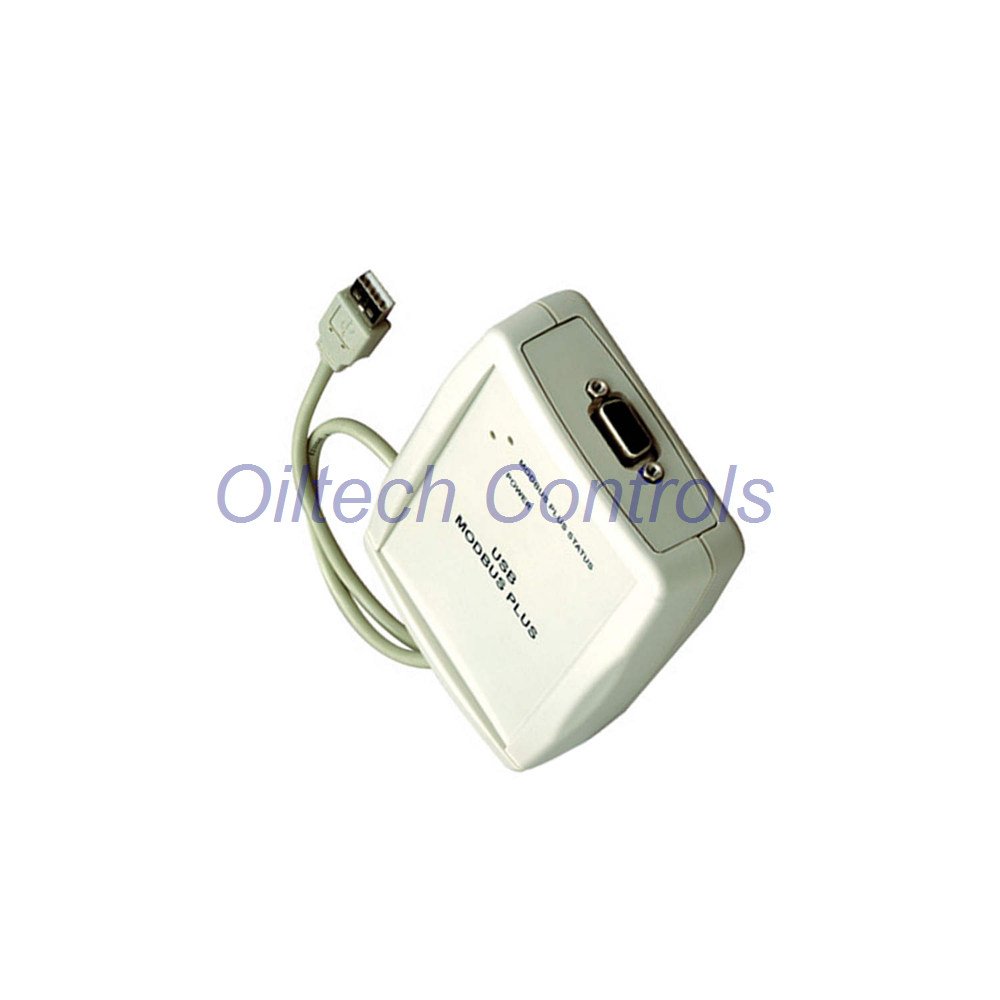

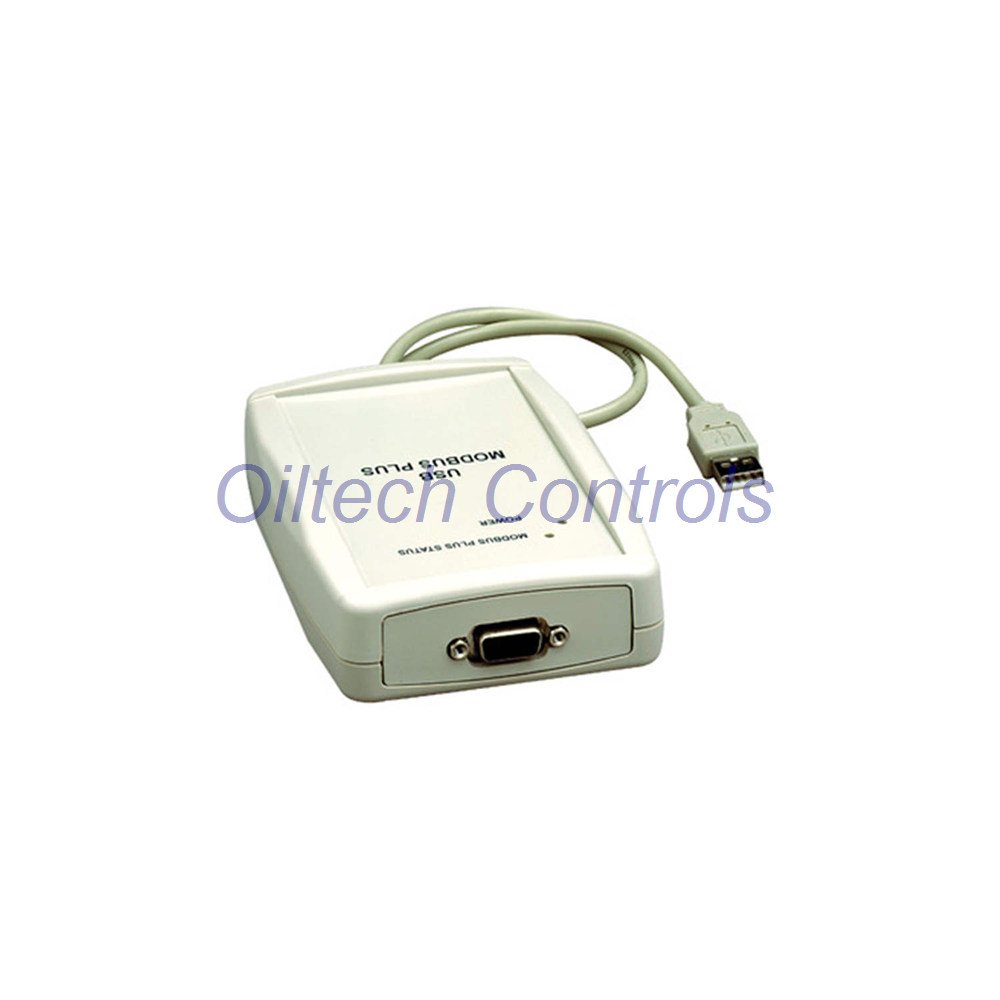

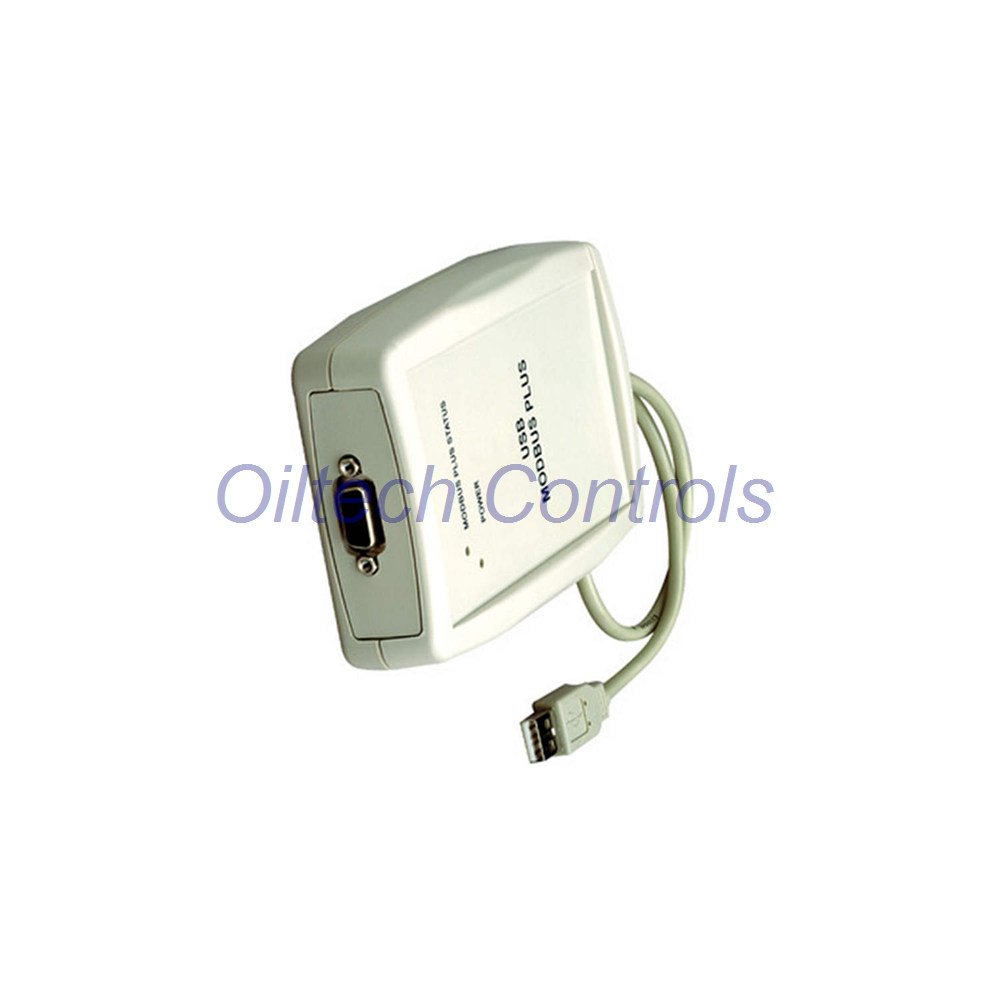

TSXCUSBMBP Schneider Electric USB Gateway Overview
TSXCUSBMBP is a compact USB gateway for TSX Micro PLC systems.
It connects PLCs to Modbus Plus networks with ease.
Lightweight design ensures simple installation.
Compliant with Green Premium and RoHS standards.
LED indicators provide quick operational feedback.
Perfect for industrial automation and control applications.
Key Features and Advantages
- Model: TSXCUSBMBP
- Manufacturer: Schneider Electric
- USB to Modbus Plus gateway accessory
- Supports XBTGK, XBTGTW, and XBTGT terminals
- Drivers included for fast PC integration
- Compact size: 2.17 × 5.591 × 8.86 in
- Lightweight: 12.134 oz (344 g)
- Environmentally friendly Green Premium design
- RoHS compliant since 2001
Technical Specifications
- Bus type: Modbus Plus
- Transmission rate: Up to 1 Mbps
- Connection: USB port interface
- Operating temperature: 0°C to 60°C
- Storage temperature: −25°C to 70°C
- LED indicators: operation, communication, error diagnostics
- Power supplied through USB
- Compact housing for tight PLC cabinets
- Low power consumption and efficient operation
Installation and Usage
- Plug USB directly into computer or PLC interface
- Install provided drivers for full communication support
- Ensure PLC terminal compatibility (XBTGK, XBTGTW, XBTGT)
- Position in ventilated area for heat dissipation
- Verify LED indicators during initial operation
Performance and Reliability
- Compact and durable for industrial use
- Supports up to 1 Mbps data transmission reliably
- Continuous monitoring through LEDs
- Lightweight and easy to move or replace
- Meets strict environmental and safety standards
Professional FAQ
- Which PLC models work with TSXCUSBMBP?
- Compatible with XBTGK, XBTGTW, and XBTGT terminals.
- Can it work in high-temperature control panels?
- Yes, it operates safely up to 60°C in normal ventilation.
- How fast can data transfer occur?
- Up to 1 Mbps for Modbus Plus networks.
- What makes TSXCUSBMBP suitable for industrial automation?
- LED diagnostics, USB plug-and-play, and Green Premium compliance ensure reliable operations.
- How should users extend device lifespan?
- Keep it ventilated, avoid USB power fluctuations, and use correct drivers.
Packaging and Shipping
- 1 × TSXCUSBMBP USB gateway module
- Factory-sealed protective packaging
- Supports worldwide shipping via FedEx, UPS, DHL
- 12-month warranty included
- Quick and safe delivery with tracking
Contact and Support
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
- Supports Modicon Quantum integration
