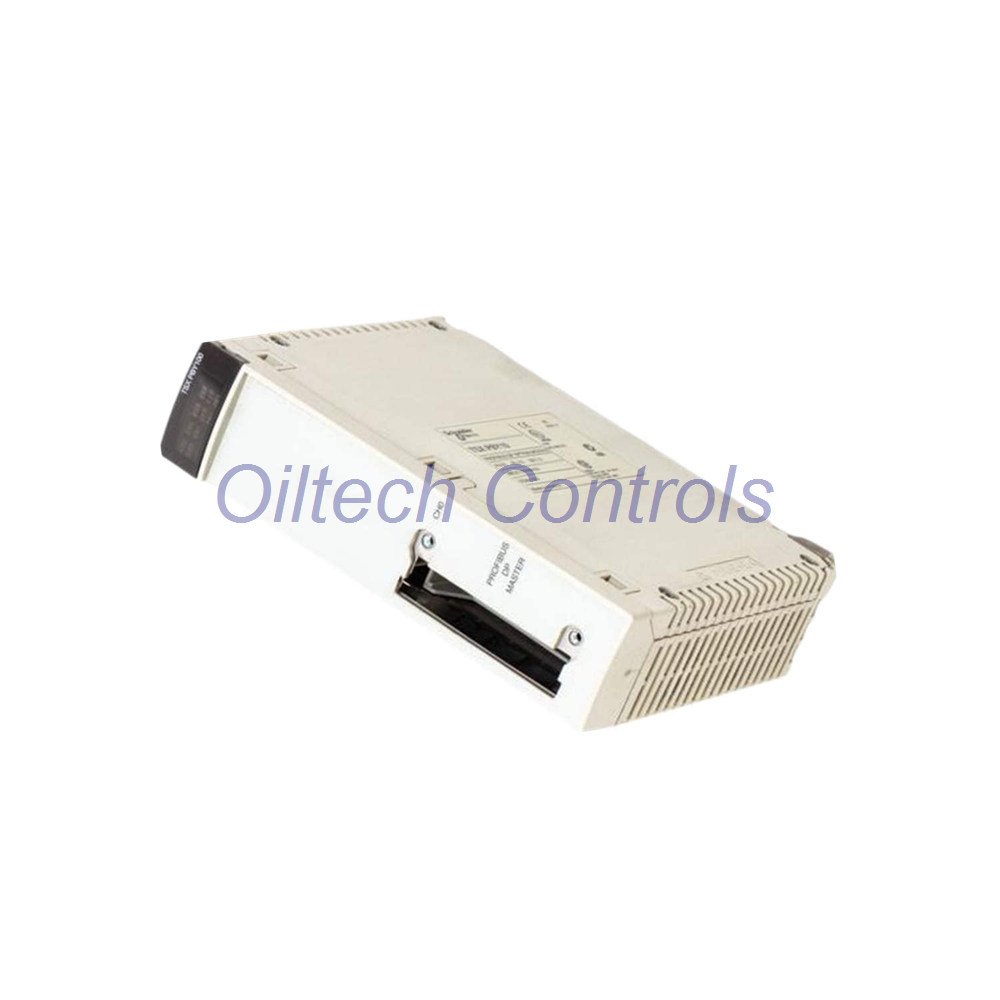

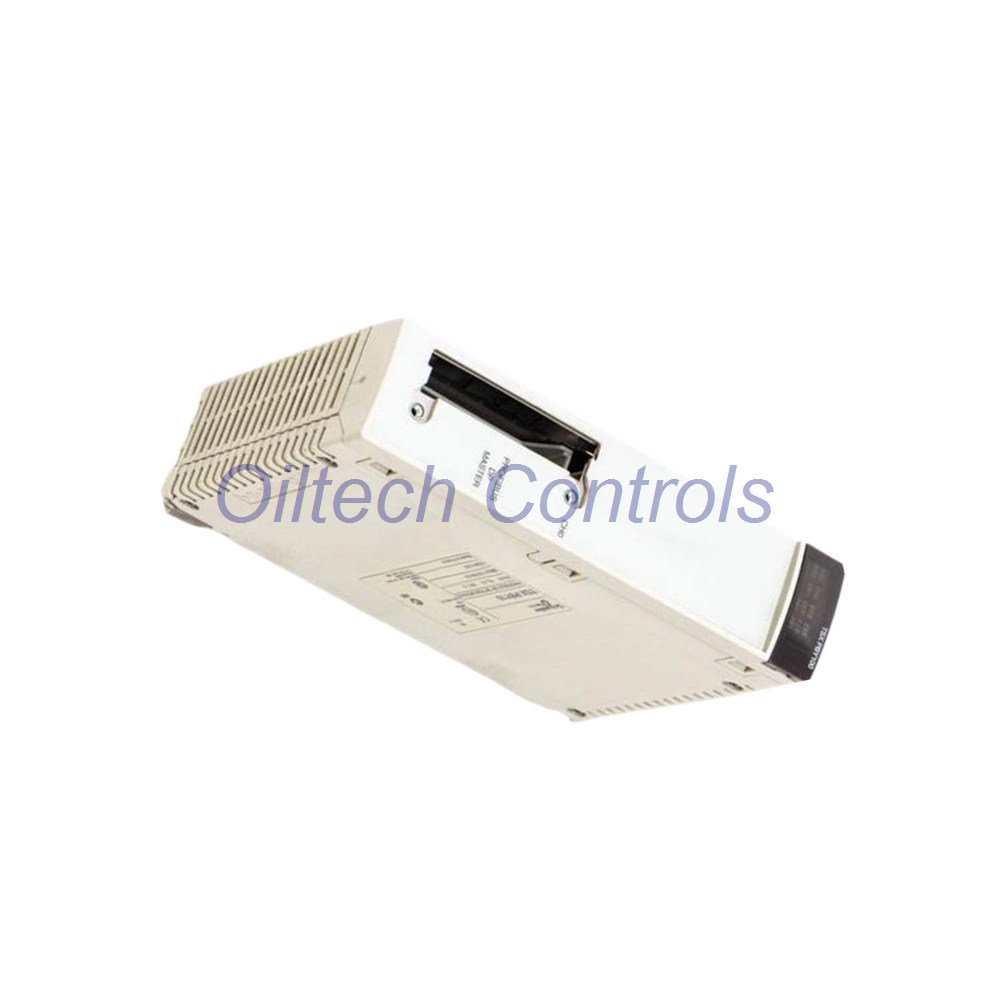

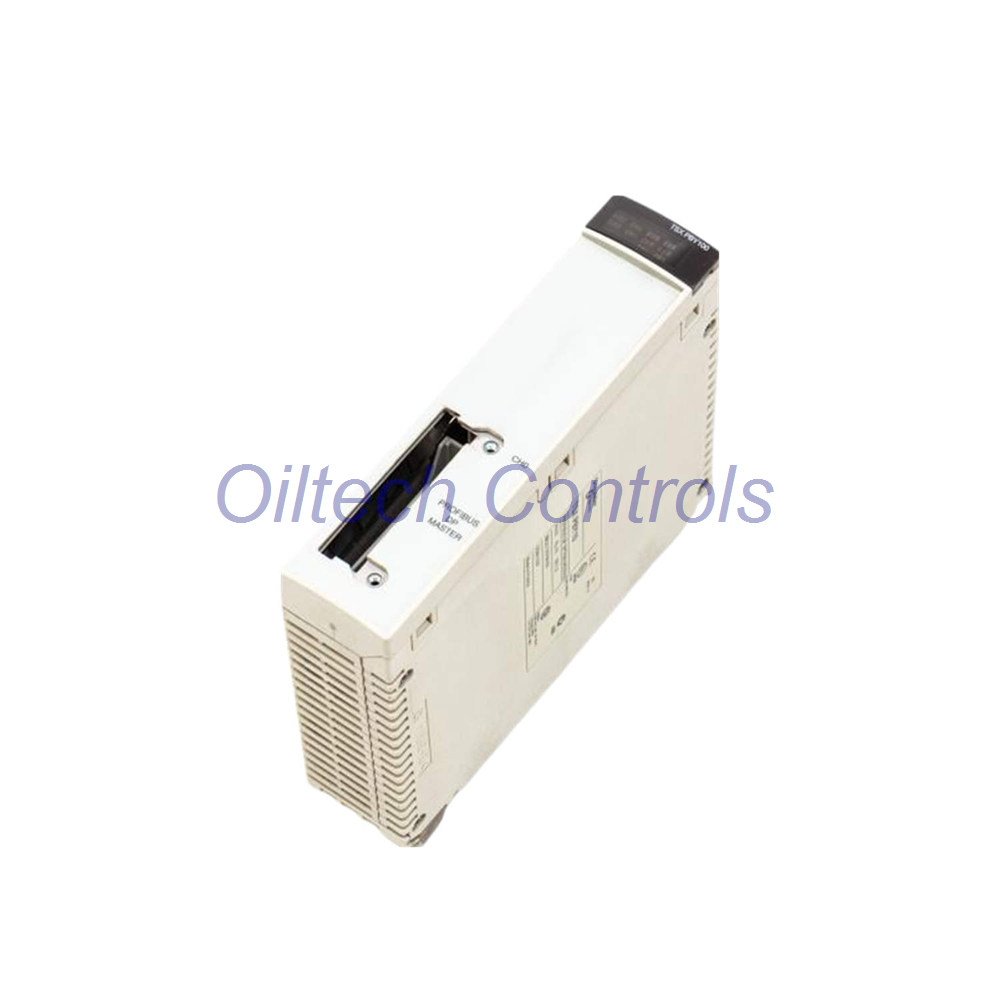

TSXPBY10 Profibus Communication Module Overview
TSXPBY10 is a Profibus-DP communication module from Schneider Electric.
It connects PLC controllers to industrial Profibus networks.
The module supports stable data exchange and high network speed.
TSXPBY10 improves control system communication reliability.
It fits demanding automation systems and large industrial plants.
Key Communication Capabilities
- Profibus-DP communication interface for PLC systems
- Transmission speed from 9.6 Kbit/s to 12 Mbit/s
- Reliable data transfer across long industrial networks
- Supports up to 124 slave devices with repeaters
- Maximum segment distance up to 1200 meters
- Optimized communication cycle for real-time control
- Designed for high-speed industrial fieldbus communication
- Stable operation in complex automation networks
Technical Specifications
- Manufacturer: Schneider Electric
- Model: TSXPBY10
- Product Type: Profibus-DP option module
- Compatible Platform: Modicon Premium PLC systems
- Product Family: TSX Micro / Premium automation
- Data Capacity: 4096 input words
- Output Data Capacity: 4096 output words
- Communication Standard: Profibus-DP protocol
- Transmission Speed: 9.6 Kbit/s to 12 Mbit/s
- Segment Length: Up to 1200 m at 9.6 Kbit/s
- Power Supply: 5 V DC from PLC rack
- Current Consumption: 400 mA typical
- Weight: 0.45 kg (1.0 lb)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Humidity Range: 30% to 95% non-condensing
- Installation Altitude: up to 2000 meters
- Vibration Resistance: IEC 68-2-6 compliant
- Shock Resistance: IEC 68-2-27 compliant
- ESD Protection: IEC 1000-4-2 compliant
Industrial Performance Advantages
- Stable communication in large automation systems
- High network bandwidth for fast PLC response
- Supports distributed field devices and remote I/O
- Designed for long cable runs in factories
- Strong electrical noise immunity
- Reliable performance in industrial environments
- Easy integration with existing PLC racks
Installation and Integration
- Install the module directly into the PLC rack slot
- Power comes from the rack backplane
- Configure node address through PLC configuration software
- Connect to the Profibus network using standard connectors
- Verify communication status during system startup
- Use repeaters when long networks require signal boost
System Compatibility
- Designed for Schneider Electric automation platforms
- Compatible with Modicon Premium PLC controllers
- Works with distributed I/O systems
- Supports integration with industrial SCADA systems
- Compatible with Modicon Quantum communication networks
Package Contents
- 1 × Schneider Electric TSXPBY10 Profibus module
- Protective industrial packaging
- Factory identification label
- Quality inspection verification
Warranty and Shipping
- 12-month product warranty
- Careful industrial packaging before shipment
- Worldwide delivery service
- Express shipping via FedEx, UPS, DHL
Typical Automation Applications
- Factory automation networks
- Distributed PLC control systems
- Manufacturing production lines
- Process control systems
- Energy and utility monitoring systems
Frequently Asked Questions (FAQ)
- How do I confirm that TSXPBY10 works with my PLC?
- Check if your system uses Schneider Premium or TSX Micro PLC platforms.
- What is the main advantage of this module?
- It enables fast and reliable Profibus communication between PLC and field devices.
- What is a common installation mistake?
- Incorrect node address settings often cause communication failure.
- How can I extend the network distance?
- Use Profibus repeaters to extend the network and support more slave devices.
- What should buyers consider before ordering?
- Confirm PLC model compatibility, network speed, and required slave device count.
