Product Overview

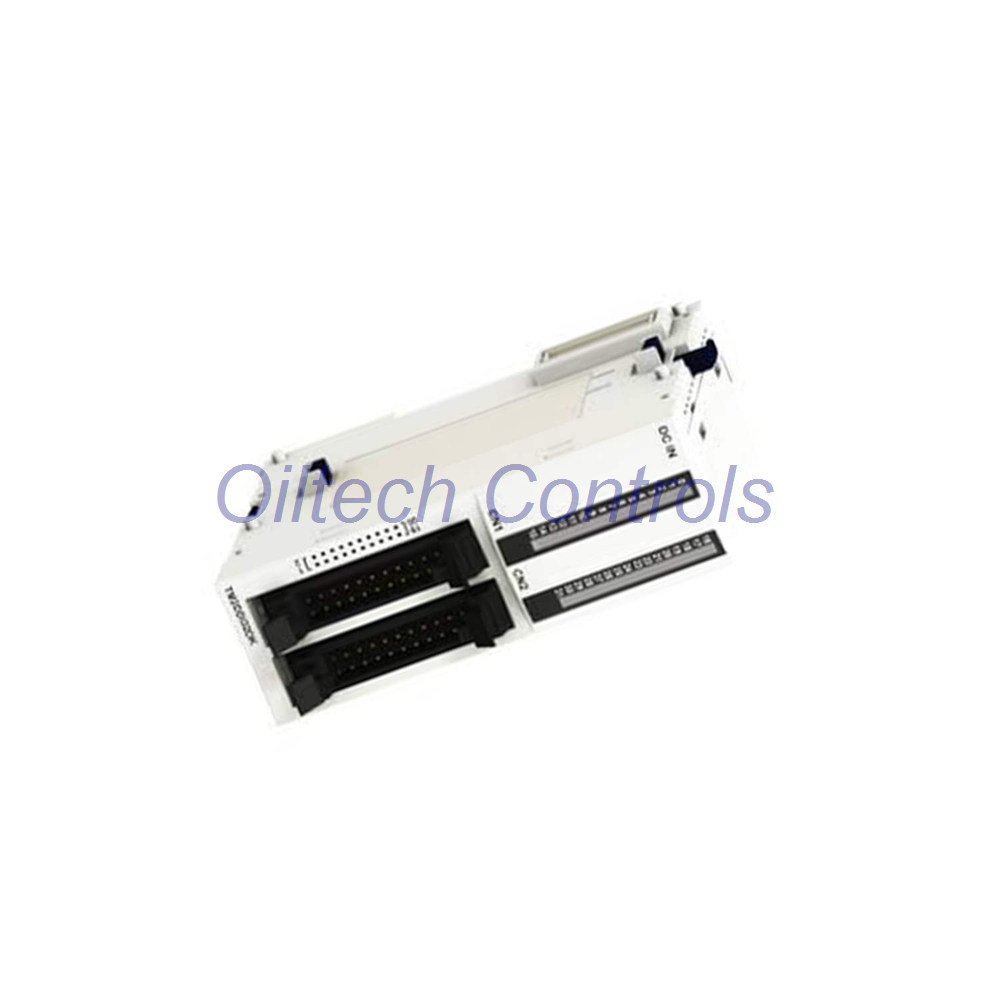

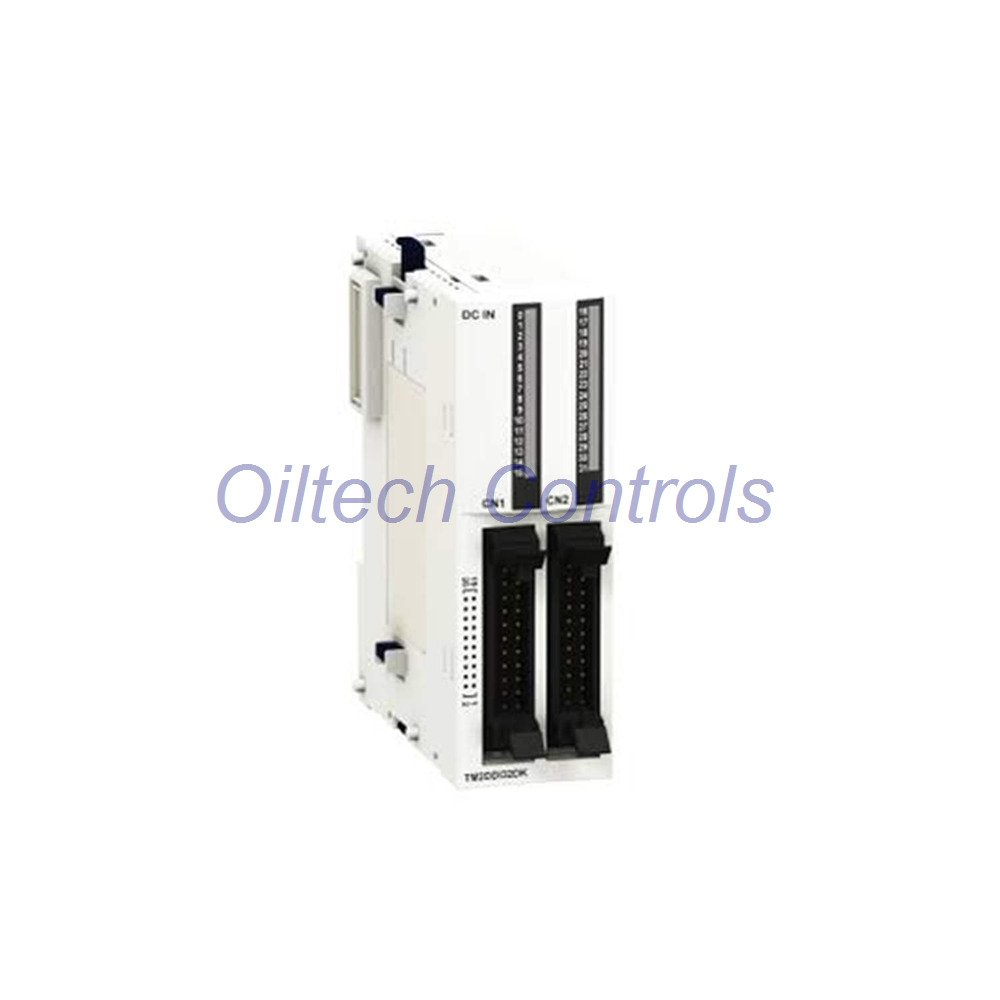

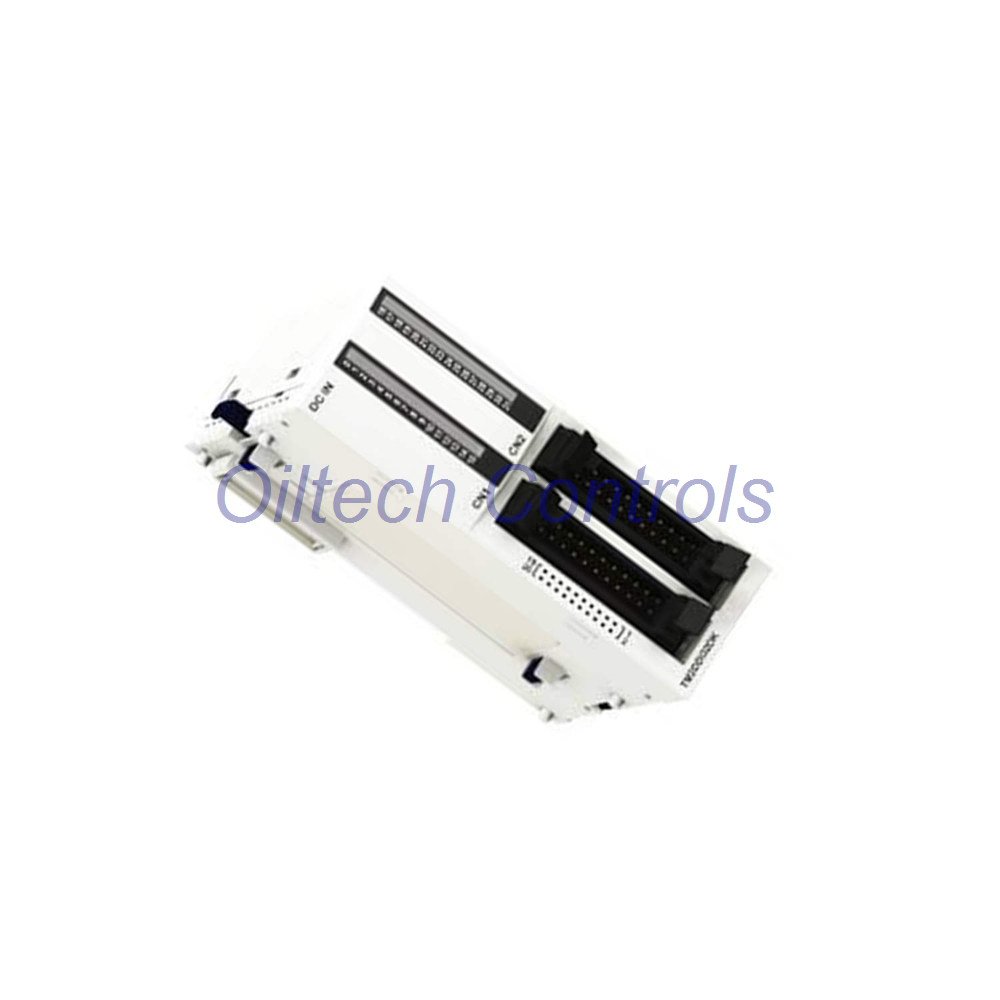

TWDDDO32TK is a discrete output module from the Twido series by Schneider Electric. It provides 32 solid-state transistor outputs. Each channel delivers 24V DC at 500mA. The module uses a source logic configuration. It connects via a HE-10 connector. This module suits high-density output applications in automation systems.
Technical Specifications
- Part Number: TWDDDO32TK
- Brand: Schneider Electric
- Series: Twido
- Output Type: Transistor (solid state)
- Output Voltage: 24V DC
- Output Logic: Source
- Number of Outputs: 32
- Connection: HE-10 connector
- Common Points: 4
- Voltage Limits: 20.4…28.8V
- Current per Channel: 500mA
- Current per Common: 2A
- Response Time (ON): 300µs
- Response Time (OFF): 450µs
- Residual Voltage: ≤0.2V at state 1
- Inductive Load: ≤2000mH
- Tungsten Load: 16W
- Insulation: 1500Vrms (photocoupler)
- Current Consumption (5V): 10mA (OFF) / 20mA (ON)
- Current Consumption (24V): 70mA (ON all outputs)
- Operating Temp: 0…55°C
- Storage Temp: -25…70°C
- Protection: Overload, short-circuit
- Certifications: CSA, UL, CE
- IP Rating: IP20
- Weight: 0.105kg
Protection & Diagnostics
- Built-in overload protection prevents damage from excessive current.
- Short-circuit protection shuts down faulty channels automatically.
- Photocoupler isolation provides 1500Vrms insulation between field and logic.
- CE marking confirms compliance with EU safety standards.
- UL and CSA certifications ensure reliability in industrial environments.
Installation & Wiring
- Connects via a 34-pin HE-10 ribbon cable connector.
- Four common points allow flexible grouping of outputs.
- Supports source logic wiring for 24V DC loads.
- Compact design fits Twido base units and expansion racks.
- IP20 protection suitable for control cabinet installation.
Environmental & Compliance
- Operating temperature range: 0 to 55°C.
- Storage temperature range: -25 to 70°C.
- RoHS compliant (EU directive 2011/65/EU).
- CE, CSA, and UL certified for global use.
Oiltech Controls’s Insight
This TWDDDO32TK module offers reliable solid-state switching for Twido PLC systems. The 500mA per channel capacity handles most solenoid and indicator loads. Response times under 450µs support fast logic sequences. The module’s short-circuit protection prevents downtime in critical applications. For high-density output needs, this module provides a cost-effective solution without compromising performance.
Suitable Equipment
- Schneider Twido series PLC base units
- Twido expansion racks (TWDX… models)
- Industrial control panels with 24V DC outputs
- Automation systems requiring 32 discrete outputs
- Machine control systems with solenoid and indicator loads
Frequently Asked Questions (FAQ)
What is the maximum output current per channel?
Each channel handles 500mA continuous. The total current per common point is limited to 2A.
Can this module drive inductive loads like relays?
Yes. It supports inductive loads up to 2000mH. For larger coils, use an external suppression diode.
What connector does this module use?
It uses a 34-pin HE-10 connector. This ribbon cable connector is standard for Twido output modules.
How do I protect outputs from short circuits?
The module includes internal short-circuit protection. It will automatically shut down the affected channel. Reset by cycling power or correcting the fault.
What is the response time for high-speed applications?
Turn-on time is 300µs, turn-off is 450µs. This is suitable for most general-purpose logic. For faster applications, consider dedicated high-speed modules.
