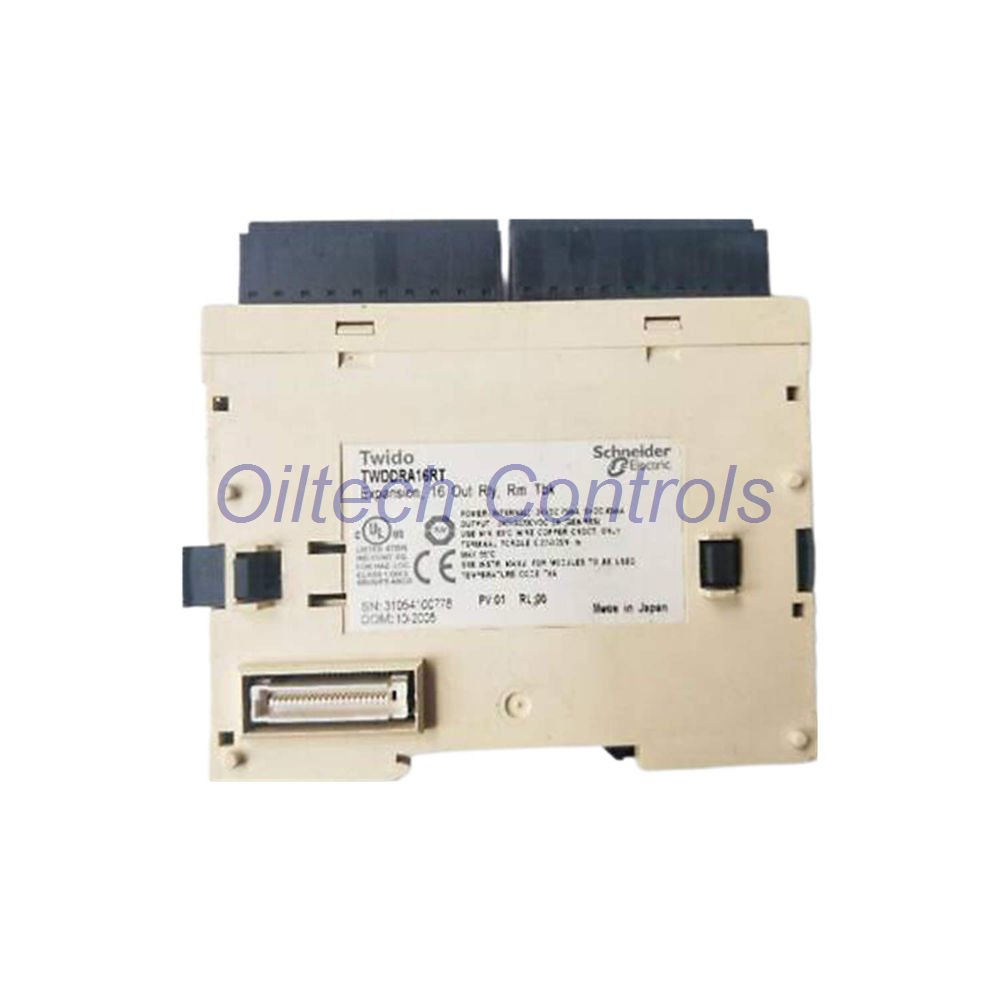

TWDDRA16RT – Twido 16-Channel Discrete Relay Output Module
TWDDRA16RT is a discrete output module from Schneider Electric for the Twido series. It provides 16 relay outputs with 2A per channel and 8A per common point. Response time ≤7 ms. Ideal for industrial automation and PLC control.
Oiltech Controls Insight
- This module offers robust relay switching for Twido PLC systems.
- Each channel supports 2A continuous, with common rating up to 8A.
- Fast 7ms response ensures precise output control.
- CE, UL, CSA certified for global industrial use.
- Ideal for OEM and retrofit applications requiring 16 discrete outputs.
Technical Specifications
| Product Type | Discrete Output Module – Relay |
| Number of Outputs | 16 (Form A, NO) |
| Output Type | Relay |
| Current per Channel | 2 A |
| Current per Common | 8 A |
| Response Time | ≤ 7 ms |
| Insulation (channel to logic) | 1500 Vrms (1 min) |
| Contact Resistance | ≤ 40000 µOhm |
| Current Consumption (5V DC) | 45 mA (ON) / 5 mA (OFF) |
| Current Consumption (24V DC) | 75 mA (ON) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -25 °C to 70 °C |
| Protection Class | IP20 |
| Weight | 0.145 kg |
| Certifications | CE, UL, CSA |
Compatibility & Suitable Devices
- Designed for Schneider Electric Twido PLC systems (TWDL series).
- Works with Twido base units and expansion racks.
- Suitable for Modicon M221/M241 via adapters (check compatibility).
- Ideal for discrete output control in conveyor, packaging, and HVAC.
- Replaces TWDDRA16RT direct or equivalent relay output modules.
Package, Warranty & Shipping
- Package: 1 x TWDDRA16RT module, screw terminal block, user manual.
- Warranty: 12-month warranty against defects.
- Shipping: Dispatched within 24–28 hours via FedEx, UPS, or DHL.
- Global tracking provided for all shipments.
Frequently Asked Questions (Expert & Buying Guide)
- Q1: Can this module drive inductive loads directly?
Yes, but we recommend external suppression (diode or RC snubber) for inductive loads to protect relay contacts, especially with DC coils. - Q2: What is the maximum switching frequency?
For relay outputs, keep switching below 10 Hz to ensure long contact life. For high-speed applications, consider transistor outputs. - Q3: How do I connect the common terminals?
There are two commons: COM0 (outputs 0-7) and COM1 (outputs 8-15). Each supports up to 8A total. - Q4: Is this module compatible with Twido Extreme?
Yes, TWDDRA16RT works with Twido Compact and Extreme base units. Check your base model for expansion capacity. - Q5: What is the best replacement for this module?
The direct replacement is TWDDRA16RT. For newer systems, consider Modicon TM3 series with adapter.
