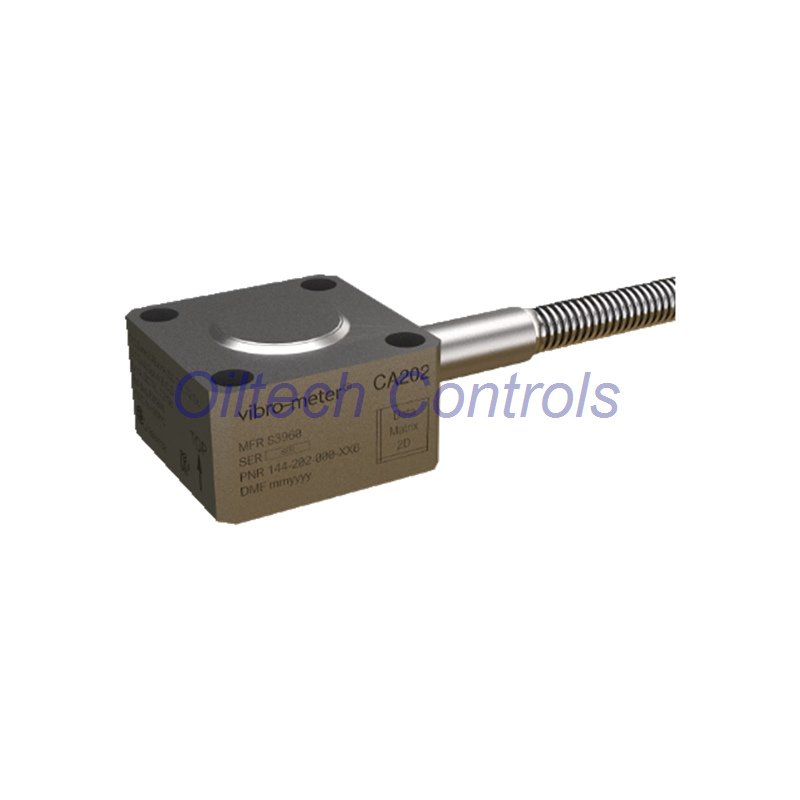

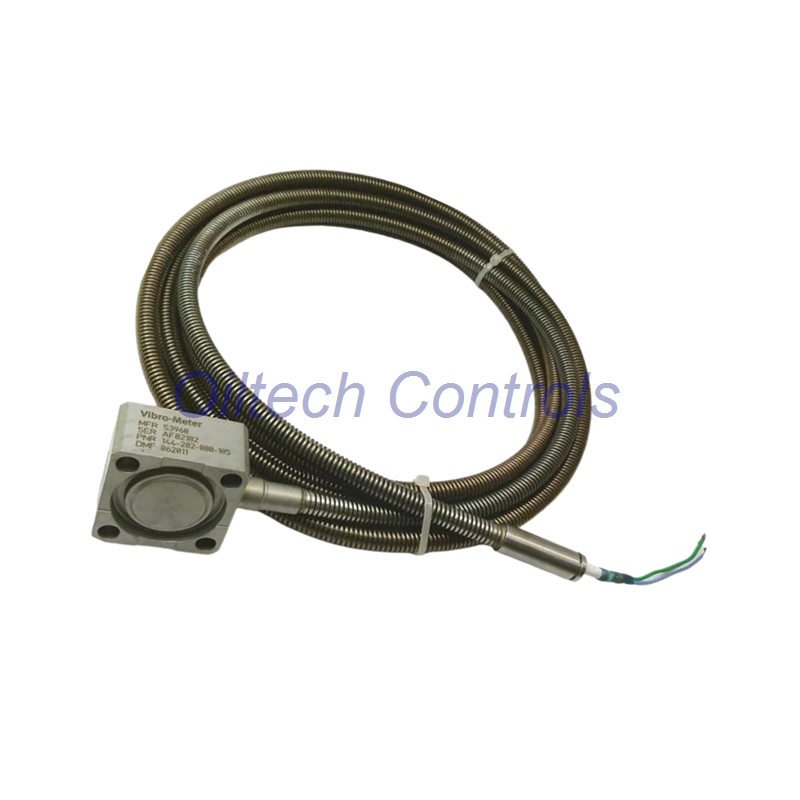

Vibro Meter CA202 Heavy-Duty Industrial Accelerometer
- Built for extreme industrial environments
- Explosion-proof versions available
- Works in very high temperatures
- Completely sealed against moisture and dust
- Includes full 12-month protection
Product Overview
The Vibro Meter CA202 is a tough vibration sensor for heavy industry. It measures vibration in dangerous and harsh conditions. This CA202 accelerometer features a sealed design that keeps out water, oil, and chemicals. Perfect for long-term monitoring in factories and plants.
Technical Specifications
Brand: Vibro Meter
Model: CA202 144-202-000-203
Sensitivity: 100 pC/g ±5%
Frequency Response: 0.5 Hz to 6000 Hz
Temperature Limit: -55°C to +260°C
Measurement Range: 0.01 g to 400 g
Shock Survival: 1000 g peak
Resonant Frequency: 22 kHz
Housing Material: Stainless Steel 1.4441
Weight: 250 grams
Output Type: Charge output
Installation & Mounting
Use four M6 x 35mm Allen screws
Apply 15 Nm tightening torque
Install four spring lock washers
Flat mounting surface required
No insulation needed between sensor and machine
Environmental Protection
Fully welded stainless steel construction
Waterproof and steam proof
Resists oil, chemicals, and salt air
Works in 100% humidity conditions
Protected against dust and sand
Safety & Certifications
Available in explosion-proof versions
Certified for hazardous areas
Intrinsically safe options
Suitable for explosive atmospheres
Industrial safety compliant
Package Contents
1x CA202 Vibration Sensor
4x M6 mounting screws
4x Spring lock washers
Installation instructions
12-month warranty certificate
Shipping Service
Fast global delivery via FedEx, UPS, DHL
Express options available
Online tracking included
Professional packaging
Expert Questions & Answers
What is the main advantage of the hermetic sealing?
The complete welding prevents any moisture or chemicals from entering the sensor, ensuring reliable operation in wet or corrosive environments for years.
How does temperature affect accuracy?
The sensor maintains excellent stability with only 0.1% per °C temperature error above room temperature, making it suitable for high-temperature applications.
Can this sensor withstand mechanical impacts?
Yes, it survives shock levels up to 1000 g, which protects it from accidental impacts during installation or operation.
What cable length is recommended for best performance?
The integral cable design ensures optimal signal quality. For most applications, standard cable lengths between 3-10 meters work perfectly.
How often should this sensor be recalibrated?
Factory calibration is typically stable for several years. Most users recalibrate every 24-36 months depending on application criticality.
