Bently Nevada 330908-00-18-05-02-00 Proximity Probe
Product Overview

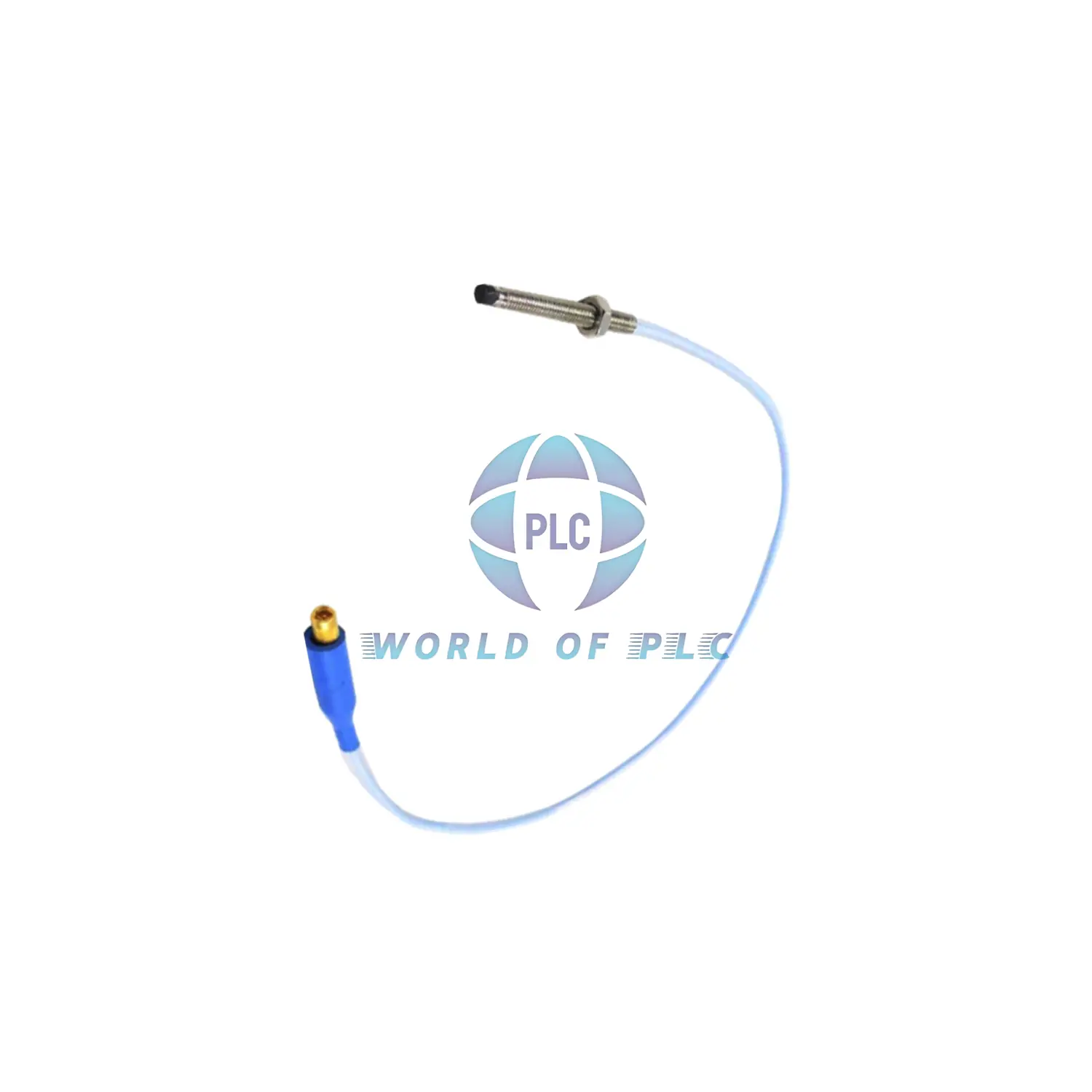

The 330908-00-18-05-02-00 is a 3300 NSv proximity probe with a 3/8-24 UNF thread and a compact design. It is used for small machinery and tight spaces. This version includes a 0.5 meter standard cable and a miniature ClickLoc connector.
Key Technical Specifications
- Thread Type: 3/8-24 UNF
- Unthreaded Section: 0.0 in
- Overall Case Length: 1.8 in
- Total Cable Length: 0.5 meter (20 in)
- Connector: Miniature ClickLoc, standard cable
- Approval Option: 00 = Not required
- Case Material: AISI304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Cable Type: 75 Ω coaxial, FEP insulated
- DC Resistance (0.5 m): 4.0 ± 0.5 ohms
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Recommended Torque: 11.3 N·m (100 in·lb)
- Max Thread Engagement: 0.563 in
- Weight: 14 to 150 g
- Seal Type: Viton O-ring, pressure-sealed
Model Breakdown
- 330908: NSv probe, 3/8-24 UNF thread
- 00: 0.0 in unthreaded section
- 18: 1.8 in overall case length
- 05: 0.5 meter cable
- 02: Miniature ClickLoc, standard cable
- 00: No approval needed
Installation Guidelines
- Do not exceed 0.563 in thread engagement
- Tighten using 11.3 N·m torque
- Do not store below -34°C for long periods
Compatibility
- Works with 3300 NSv extension cables
- Compatible with NSv Proximitor sensors
- Suited for tight machinery, fans, pumps, and mini motors
