Without Armor | 330908-00-18-70-02-00 3300 NSv Proximity Probes

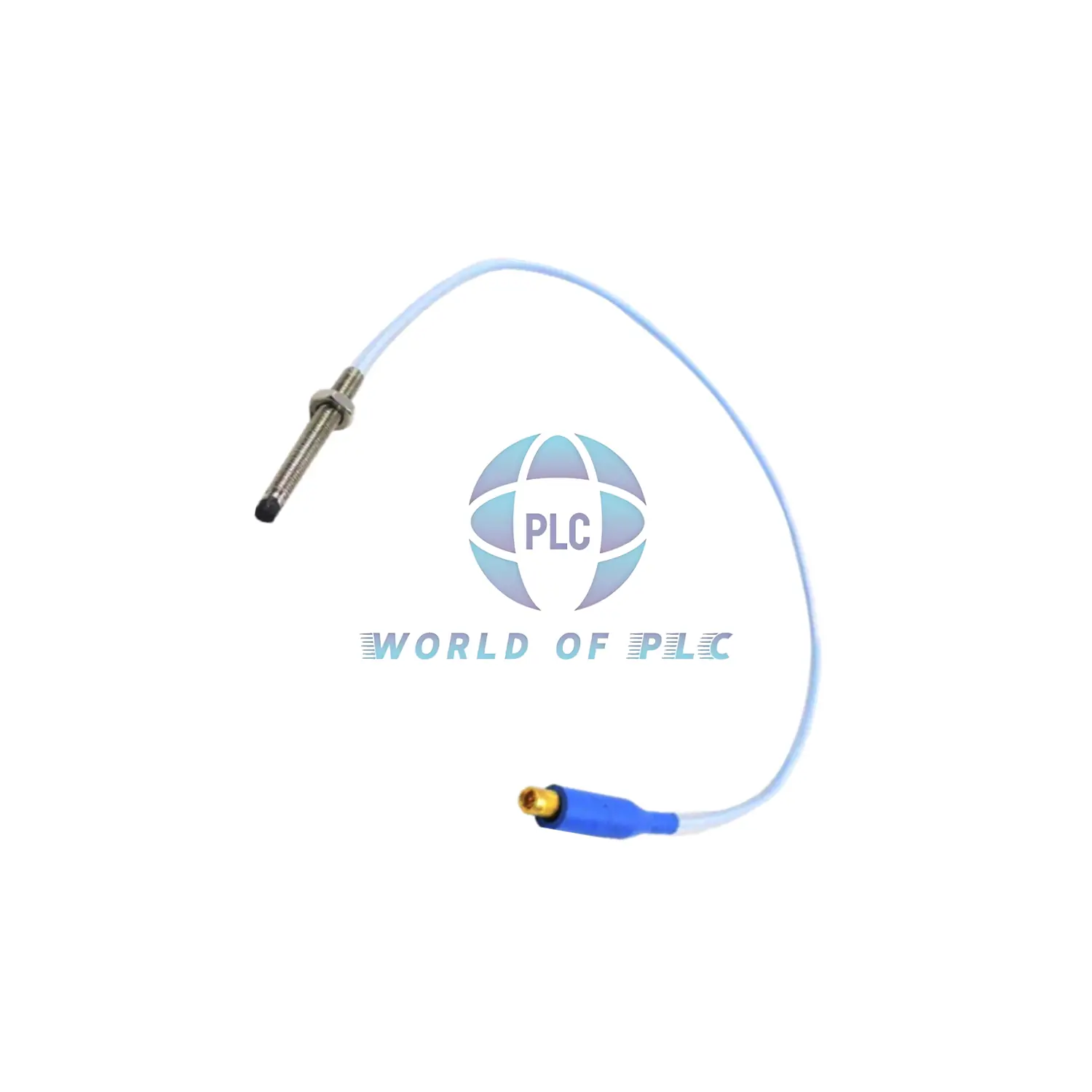

3300 NSv Proximity Probe: 7m Cable with 1.8 Inch Case

330908-00-18-70-02-00 Highlights

• Extra-long 7 meter cable for distant installations
• Compact 1.8 inch stainless steel case
• Fully threaded body for flexible mounting
• Industrial-grade temperature resistance
• Made in USA quality assurance

Complete Product Identification

• Base Code: 330908 (Standard probe)
• Position 1-2 (00): No unthreaded section
• Position 3-4 (18): 1.8 inch case length
• Position 5-6 (70): 7.0 meter cable
• Position 7-8 (02): ClickLoc connector
• Position 9-10 (00): No agency approvals

Key Specifications

• Electrical Resistance: 5.9Ω ± 0.9Ω
• Cable Type: 75Ω coaxial with FEP insulation
• Weight Range: 14-150g (0.5-5.3oz)
• Thread Type: 3/8-24 UNF (fully threaded)
• Max Thread Depth: 0.563 inch
• Temp Range: -52°C to +177°C

Critical Installation Info

• Recommended torque: 100 in•lb (11.3 N•m)
• Maximum torque: 300 in•lb (33.9 N•m)
• Avoid sustained temperatures below -34°C
• Check O-ring before installation
• Ensure proper thread engagement depth

Professional Questions

• Q: What’s the advantage of a 1.8 inch case?
  A: Ideal for space-constrained installations
• Q: Can I use this probe with different monitoring systems?
  A: Compatible with all 3300 NSv systems
• Q: How does cable length affect installation?
  A: Allows routing around obstacles to monitoring equipment
• Q: Is the probe tip replaceable?
  A: No, tip is permanently integrated with probe
• Q: What’s the shelf life when stored properly?
  A: 5+ years in controlled environments

Download Technical Documents

• Compact Probe Installation Guide
