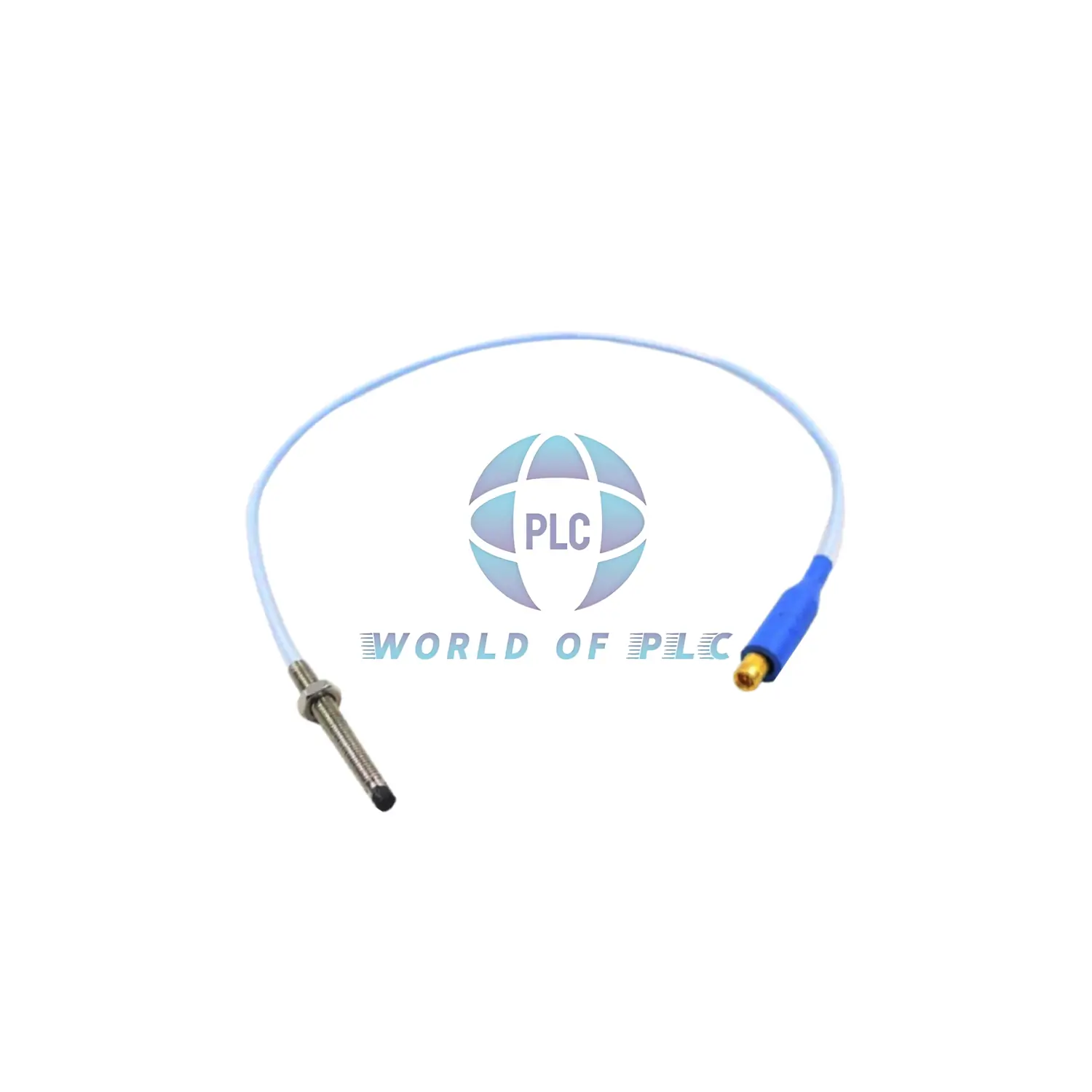

Without Armor | 330908-00-31-10-02-00 3300 NSv Proximity Probes

Standard Unarmored Vibration Probe: Industrial Precision Monitoring

Bently Nevada 3300 NSv probe with 3.1-inch case and no armor. Features 1m cable and wide temperature range. Made in USA for reliable machinery vibration analysis.

Product Identification

• Complete Model: 330908-00-31-10-02-00
• Armor Type: Without armor
• Case Length: 3.1 inches
• Cable Length: 1.0 meter (39 inches)
• Connection: ClickLoc coaxial connector
• Certifications: No approvals required

Technical Specifications

• Electrical Resistance: 4.2Ω ±0.5Ω (1m cable)
• Operating Temperature: -52°C to +177°C
• Thread Specification: 3/8-24 UNF
• Case Material: AISI304 Stainless Steel
• Tip Material: PPS (Polyphenylene Sulfide)
• Weight Range: 0.5-5.3 oz (14-150g)
• Cable Type: 75Ω coaxial with FEP insulation

Installation Guide

• Recommended Torque: 11.3 N•m (100 in•lb)
• Maximum Torque: 33.9 N•m (300 in•lb)
• Thread Engagement: Max 0.563 inches
• Seal Material: Viton O-ring
• Cold Weather Warning: Avoid below -34°C sustained exposure

Package Contents

• 1x Vibration probe (3.1-inch case)
• 1-meter FEP-insulated cable
• Pre-installed ClickLoc connector
• 12-month warranty

Technical Questions

• Q: What is the advantage of 3.1-inch case?
  A: Balanced size for most applications – not too short or long
• Q: Can I use this in explosive environments?
  A: No ATEX certification – standard industrial use only
• Q: Difference between FEP and standard cable?
  A: FEP offers better heat and chemical resistance
• Q: Minimum bend radius for cable?
  A: Minimum 25mm radius to prevent damage
• Q: Suitable for marine environments?
  A: Stainless steel resists corrosion but not fully waterproof

For detailed specifications: Download Product Manual & Datasheet
