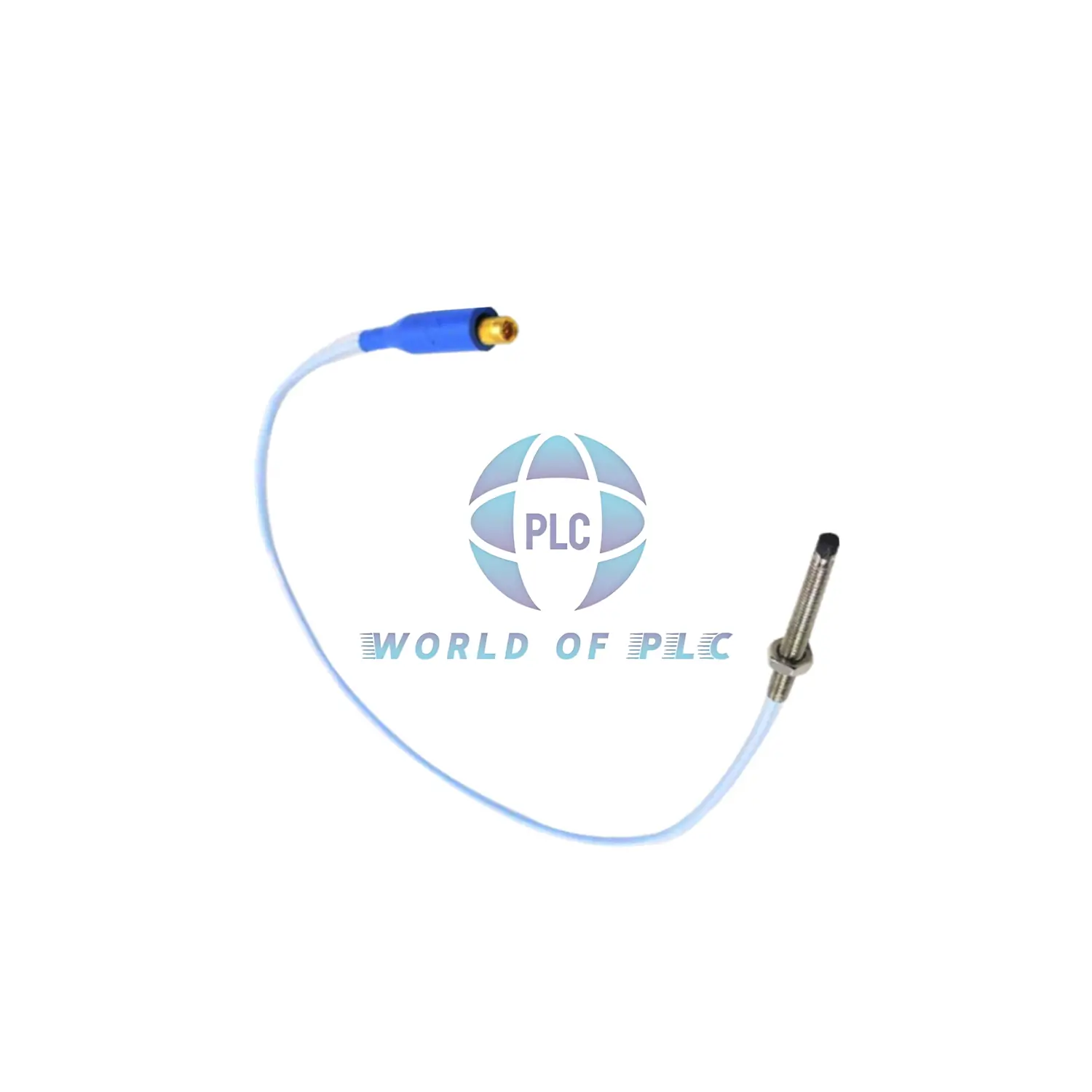

3300 NSv Compact Proximity Probe with Multi-Certification
1.6-inch industrial vibration sensor with global approvals for critical machinery monitoring. Made in USA.
Model Configuration
- Product Number: 330908-12-16-10-02-05
- Unthreaded: 12 = 1.2 inch
- Case Length: 16 = 1.6 inch
- Cable: 10 = 1.0 meter
- Connector: 02 = ClickLoc
- Approvals: 05 = Multi-Certified
Key Specifications
- Thread: 3/8-24 UNF
- Resistance: 4.2 Ω (±0.5)
- Temperature Range: -52°C to +177°C
- Seal Material: Viton O-ring
- Weight: 0.5-5.3 oz
Technical Parameters
- Cable Type: 75Ω FEP coaxial
- Max Torque: 300 in-lb (33.9 N•m)
- Thread Limit: 0.563 inch engagement
- Min Safe Temp: -34°C sustained
- Tip Material: PPS polymer
Compare Similar Models
Installation Guide
- Use 11.3 N•m (100 in-lb) torque
- Max 0.563 inch thread insertion
- Keep above -34°C for optimal seal life
- Do not pressure test before use
Professional FAQs
Q: What certifications does this model have?
A: Multiple global approvals (Option 05) for international use
Q: Is the 1.6-inch case suitable for tight spaces?
A: Yes, compact design ideal for confined machinery areas
Q: How often should I replace the O-ring?
A: Inspect every 6 months; replace if compressed or damaged
Q: Can I use this probe in food processing plants?
A: Stainless steel case and PPS tip meet sanitary requirements
Q: What’s the cable’s bend radius limit?
A: Minimum 25mm radius to prevent insulation damage
Get Complete Documentation
- Installation diagrams
- Certification documents
- Temperature guidelines
- Compatibility charts
