Bently Nevada 330908-12-46-05-02-00 3300 NSv Proximity Probe
Product Overview

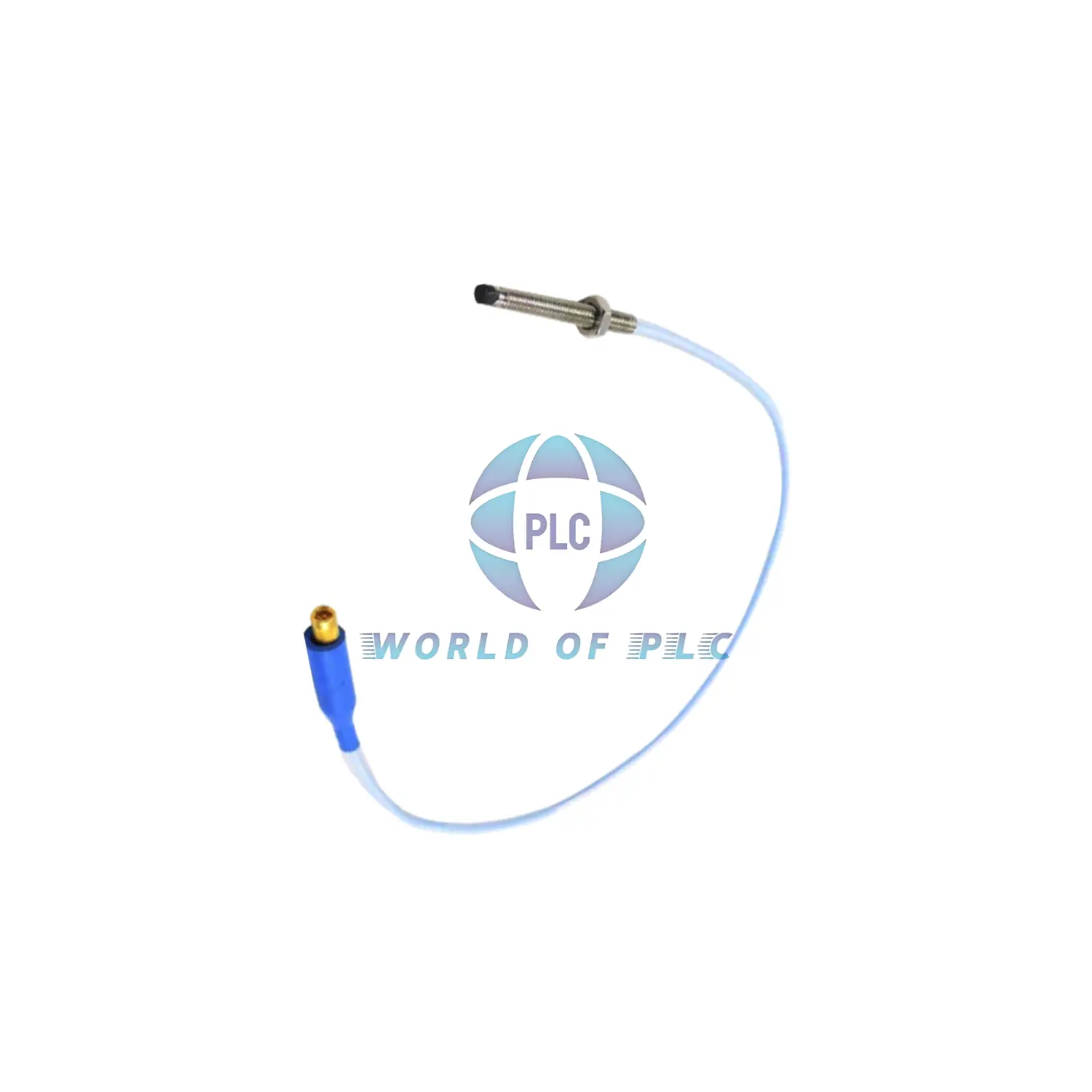

The 330908-12-46-05-02-00 is a 3300 NSv proximity probe. It features a 3/8-24 UNF thread and no armor. The probe comes with a 0.5-meter standard cable and a miniature coaxial ClickLoc connector. No agency approvals are required for this model.
Technical Specifications
- Measurement Range: ±0.5 mm
- Linear Range: 0.25 to 1.25 mm
- Sensitivity: -7.87 mV/μm
- Accuracy: ±0.07 mm typical
- Probe Tip: Polyphenylene sulfide (PPS)
- Probe Case: AISI 304 stainless steel
- Cable: 75 Ω coaxial with FEP insulation
- Resistance (0.5 m cable): 4.0 ± 0.5 Ω
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Sealing: Viton O-ring differential pressure seal
- Weight: 14 to 150 grams (0.5 to 5.3 oz)
Installation Guide
- Thread Size: 3/8-24 UNF
- Max Thread Engagement: 0.563 in
- Recommended Torque: 11.3 N·m (100 in·lb)
- Maximum Torque: 33.9 N·m (300 in·lb)
- Mounting: Thread probe into clean, matching port
- Important: Avoid exposing to temperatures below -34°C for long periods
Model Number Breakdown
- 330908 – 3300 NSv probe, 3/8-24 UNF thread, no armor
- 12 – Unthreaded length: 1.2 in
- 46 – Case length: 4.6 in
- 05 – Cable length: 0.5 meter (20 in)
- 02 – Miniature coaxial ClickLoc connector
- 00 – No agency approval required
Compatibility
- Compatible with 3300 NSv Proximitor sensor systems
- Works with extension cables up to 7 meters
- Suitable for compact machines and tight spaces
Warranty & Shipping
- 12-month warranty
- Shipping via FedEx, UPS, DHL
- Ships within 1-2 business days
