X-AI 32 01 HIMA Analog Input Safety Module 32-Channel PES

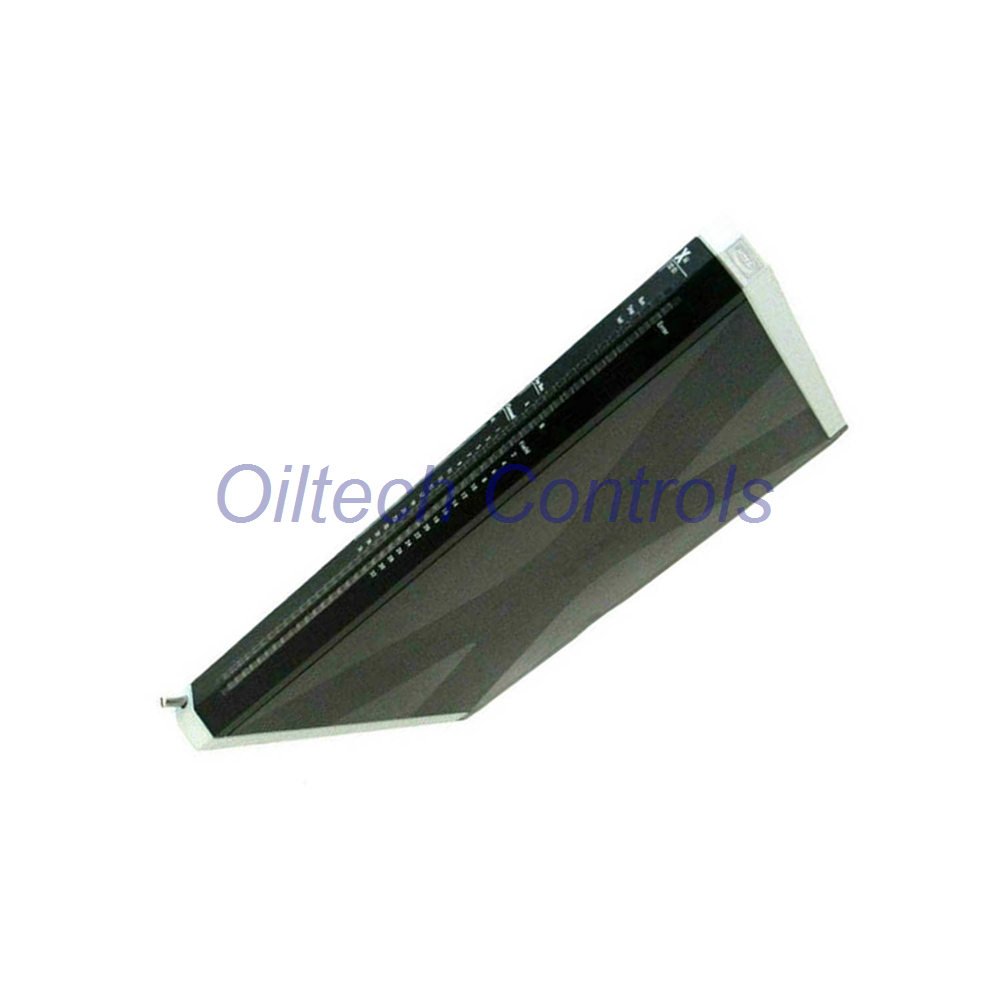

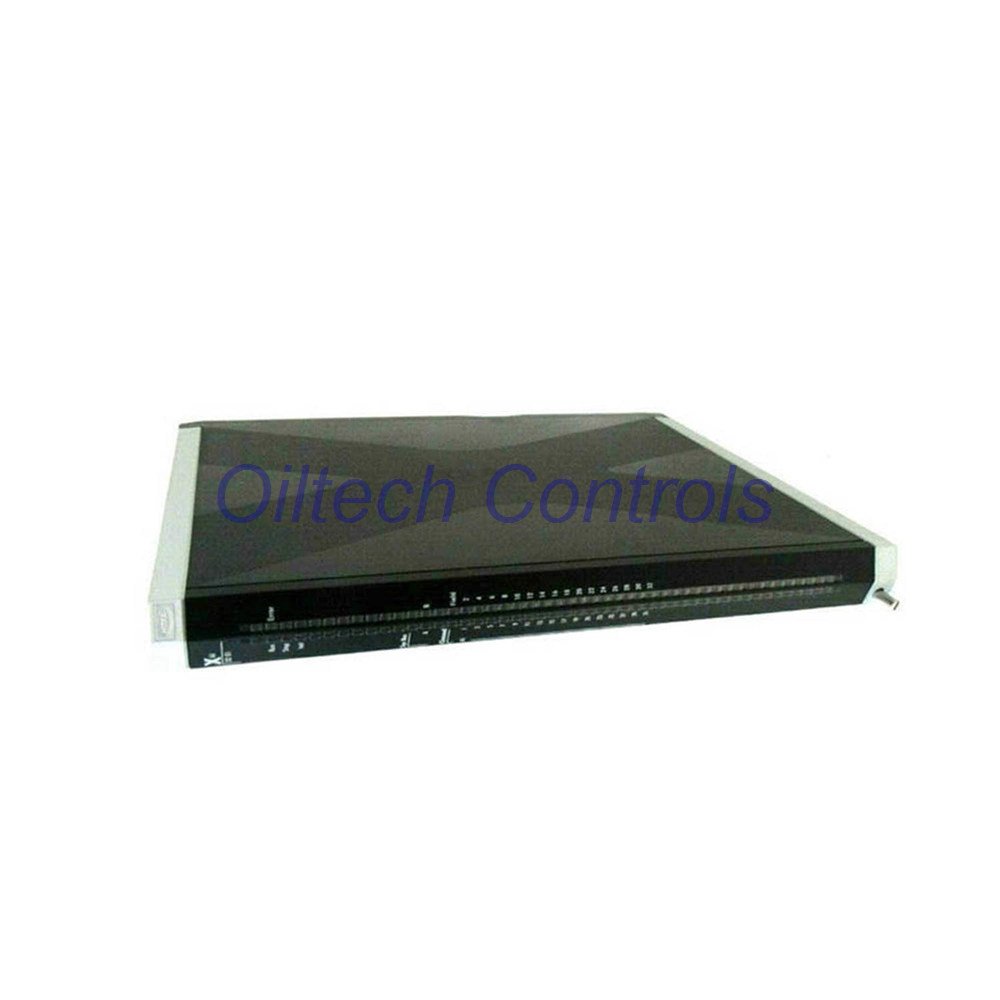

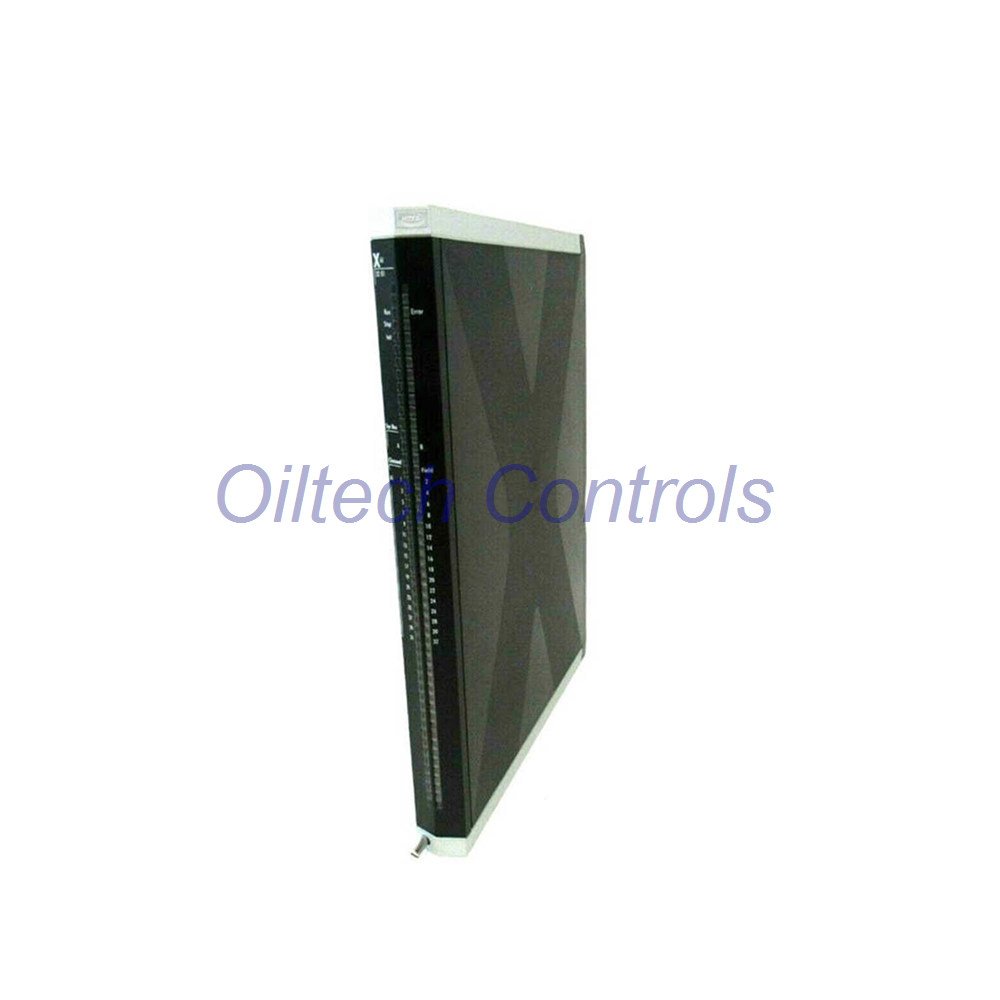

HIMA X-AI 32 01 Analog Input Module HIMax PLC System

The HIMA X-AI 32 01 safety-related analog input module delivers exceptional performance within the programmable electronic system (PES) architecture. Engineered by HIMA for high-availability automation, this premium hardware component ensures precise data acquisition and functional safety in demanding process environments.

Core Safety and System Architecture

• The HIMA X-AI 32 01 module carries full TÜV certification for critical safety-related applications up to SIL 3 limits.
• This module complies completely with international safety standards including IEC 61508, IEC 61511, and also IEC 62061.
• The hardware meets Category 4 and Performance Level e requirements according to the EN ISO 13849-1 standard.
• You can insert this module into any available HIMax base plate slot except reserved system bus locations.
• Internal circuitry provides complete galvanic isolation between the input channels, system bus, and the 24 VDC supply.

Key Technical Specifications

• Brand / Manufacturer: HIMA
• Model Name: X-AI 32 01
• Measurement Range: 0/4 to 20 mA nominal operating range with a maximum current limit of 22.5 mA.
• Resolution / Shunt: 12-bit digital resolution utilizing an integrated 200 Ω internal shunt for precise current measurement.
• Frequency Response / Sampling: 2 ms hardware sampling time synchronized directly with the user program cycle time.
• Linearity / Accuracy: ±0.15% metrological accuracy of the final value across the full temperature range.
• Sensitivity / Settling Time: 15 ms rapid settling time to reach 99% of the actual process value.
• Temperature Range: 0 °C to +60 °C standard operating temperature with storage limits from -40 °C to +85 °C.
• Environmental Tolerance: 95% maximum relative non-condensing humidity combined with a rugged IP20 rated protection enclosure.
• Anti-Interference Ability: >60 dB common mode interference voltage suppression at standard 50 Hz and 60 Hz frequencies.
• Power Supply: 24 VDC nominal voltage input with a operational current range between 500 mA and 1.5 A.

Integrated Transmitter Supply Management

• The HIMA X-AI 32 01 contains 32 dedicated transmitter supplies providing a nominal output voltage of 26.5 VDC.
• Each independent transmitter supply channel delivers a maximum continuous output current rating of 30 mA.
• Built-in safety diagnostics monitor undervoltage conditions below 22.5 VDC and overvoltage conditions above 30 VDC.
• The smart power management system permits a maximum of 12 transmitter supplies to undergo simultaneous short-circuits.
• The module deactivates the entire transmitter supply if an overload persists on multiple channels for over 3 seconds.
• The control circuit automatically reactivates the transmitter supply within 30 seconds after the field short-circuit disappears.
• The maximum permissible loop load including the field transmitter and field wiring is 750 Ω at 22.5 mA.

Field Installation and Wiring Guide

• Field wiring connects via 8 separate cable plugs where each individual plug contains 12 connection poles.
• The terminal blocks accept solid single-wire and finely stranded conductors ranging from 0.2 mm² to 1.5 mm².
• You must strip the insulation exactly 6 mm from the wire end before insertion into the terminal.
• Installation requires a 0.4 mm x 2.5 mm slotted screwdriver to secure the terminal screw connections properly.
• Tighten each terminal screw to a torque specification between 0.2 Nm and 0.25 Nm maximum.
• Physical dimensions measure 310 mm high by 29.2 mm wide by 230 mm deep with a total weight of 1.4 kg.
• For urgent technical inquiries, email info@oiltechcontrols.com or text our support line via +86 158 8020 0923 immediately.

Commercial Shipping and Package Contents

• HIMA X-AI 32 01 Analog Input Module (New original industrial automation hardware component).
• 8 Pieces of 12-Pole Cable Plugs (Essential terminal connectors for field zone sensor wiring).
• Fast Express Delivery Options: Shipments move globally via reliable couriers like FedEx, UPS, or DHL.

Frequently Asked Questions and Selection Guide

• How many analog signals can this module process simultaneously?
  The module handles 32 distinct analog current inputs and references them all to a single common ground.
• What happens if multiple field transmitters short circuit at the same time?
  The hardware allows 12 shorted supplies for 3 seconds before shutting down the entire supply to protect components.
• Can I use this module for safety instrumented systems requiring SIL 3 protection?
  Yes, TÜV certified this hardware for SIL 3 applications under IEC 61508 and IEC 61511 compliance standards.
• How do I select between different HIMax input modules for my project?
  Evaluate your field sensor density, required loop power, response times, and safety integrity levels before purchasing parts.
• Where can I purchase genuine HIMA parts with reliable global logistics support?
  Contact Oiltech Controls through info@oiltechcontrols.com or call +86 158 8020 0923 for pricing and express shipping availability.
