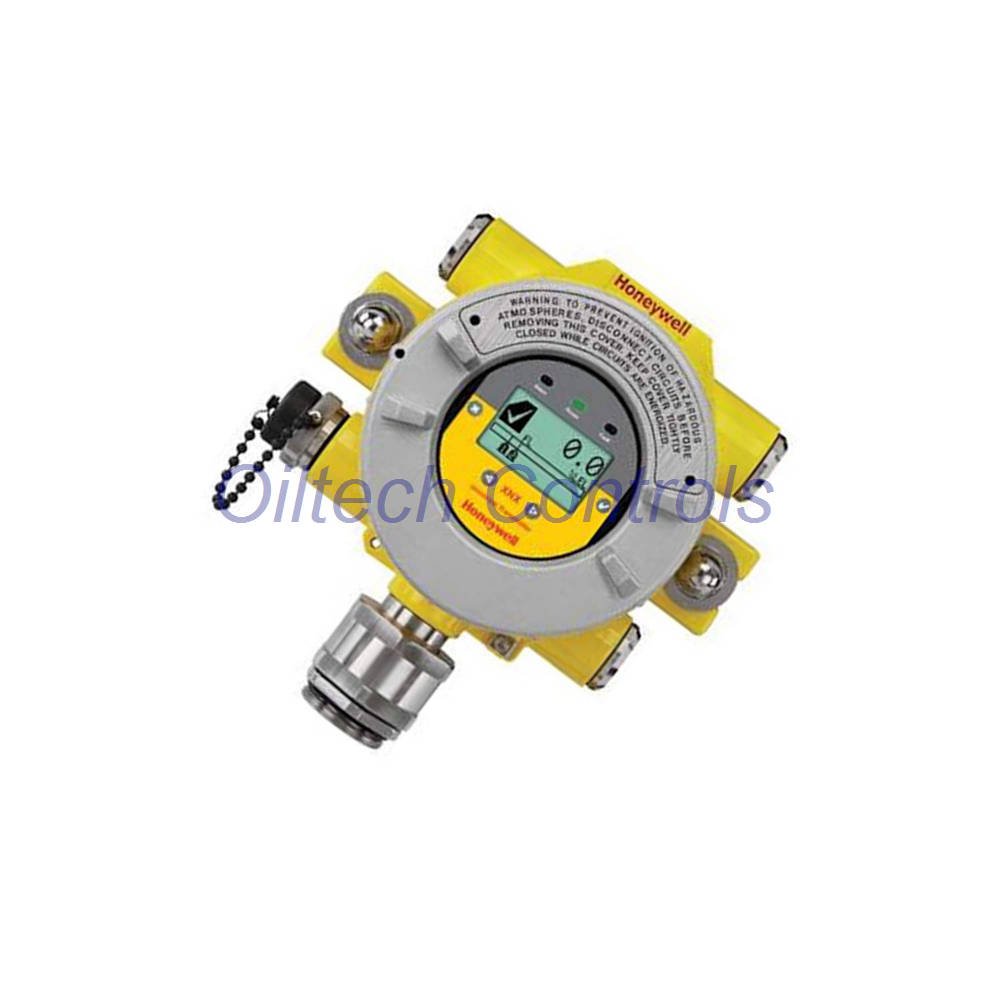

XNX-AMSV-MNIF1
– Explosion-Proof Transmitter (HART+Modbus)

Honeywell · XNX Series · 316 Stainless Steel · ATEX/IECEx · MPD IR Hydrocarbon (Propane) 0-100%LEL

Product Overview

• XNX-AMSV-MNIF1 – ATEX/IECEx approved transmitter.
• Output: HART over 4-20mA plus Modbus (option).
• Housing: painted 316 stainless steel – corrosion resistant.
• Entries: 4 x M25 conduit / cable glands.
• Sensor: MPD IR hydrocarbon (Propane) 0-100%LEL.
• Local HART: not installed (personality for mV sensors).
• Weight: 5 kg. Robust for industrial environments.

Technical Highlights

• Approvals: ATEX, IECEx, INMETRO – Zone 1/2, 21/22.
• Material: 316 stainless steel (painted) – IP66/67.
• Input: mV interface – compatible with MPD, Sensepoint, Model 705 HT/PPM.
• Communication: HART digital + Modbus RTU (option M).
• Sensor range: IR hydrocarbons (propane) 0-100% LEL.
• Operating temp: -40°C to +65°C (typical).

Compatible Devices & Systems

• · MPD (Multi-Point Detector) IR sensors
• · Sensepoint gas detectors (HT and PPM variants)
• · Model 705 HT / PPM sensors
• · Honeywell Analytics controllers & PLC systems with Modbus
• · Third-party DCS / SCADA via HART or Modbus.

Expert FAQ – Selection & Experience

• Q1: Which protocol should I choose – HART or Modbus?A: Use HART for legacy 4-20mA loops with digital diagnostics. Choose Modbus for new installations or PLC-based systems that prefer RTU. This unit offers both – flexible.
• Q2: Can this transmitter work with non-Honeywell sensors?A: It is calibrated for mV-output sensors (MPD, Sensepoint, Model 705). Third-party sensors with similar mV characteristics may work, but we recommend Honeywell for guaranteed performance.
• Q3: What is the advantage of 316SS over aluminium?A: 316SS provides superior corrosion resistance – ideal for offshore, chemical, and high-salinity areas. Painted version adds extra protection.
• Q4: How do I verify the sensor range before ordering?A: Check your target gas and LEL requirements. IF1 = 0-100%LEL propane. For other hydrocarbons, consult our technical team – we verify before shipment.
• Q5: Does this include a local display or HART port?A: Local HART is NOT installed (option N). You can access via the HART modem or Modbus network. We recommend using a handheld HART communicator for configuration.

Shipping, Warranty & Package

• Dispatch: 24–28 hours after order confirmation.
• Carriers: FedEx, UPS, DHL – tracking provided.
• Warranty: 12 months against defects.
• Package: Transmitter, MPD IR sensor (pre-calibrated), mounting kit, quick-start guide.
• Pre-ship: Full functional test and parameter verification.
