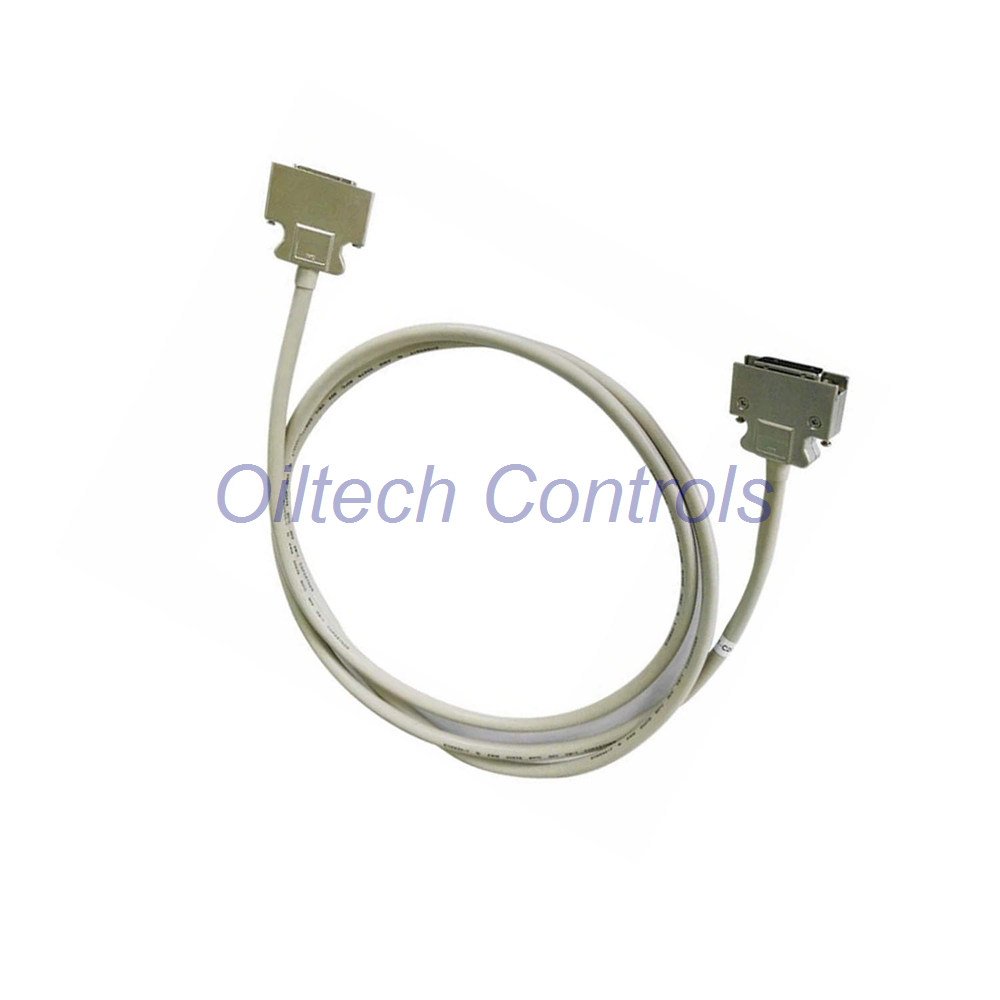

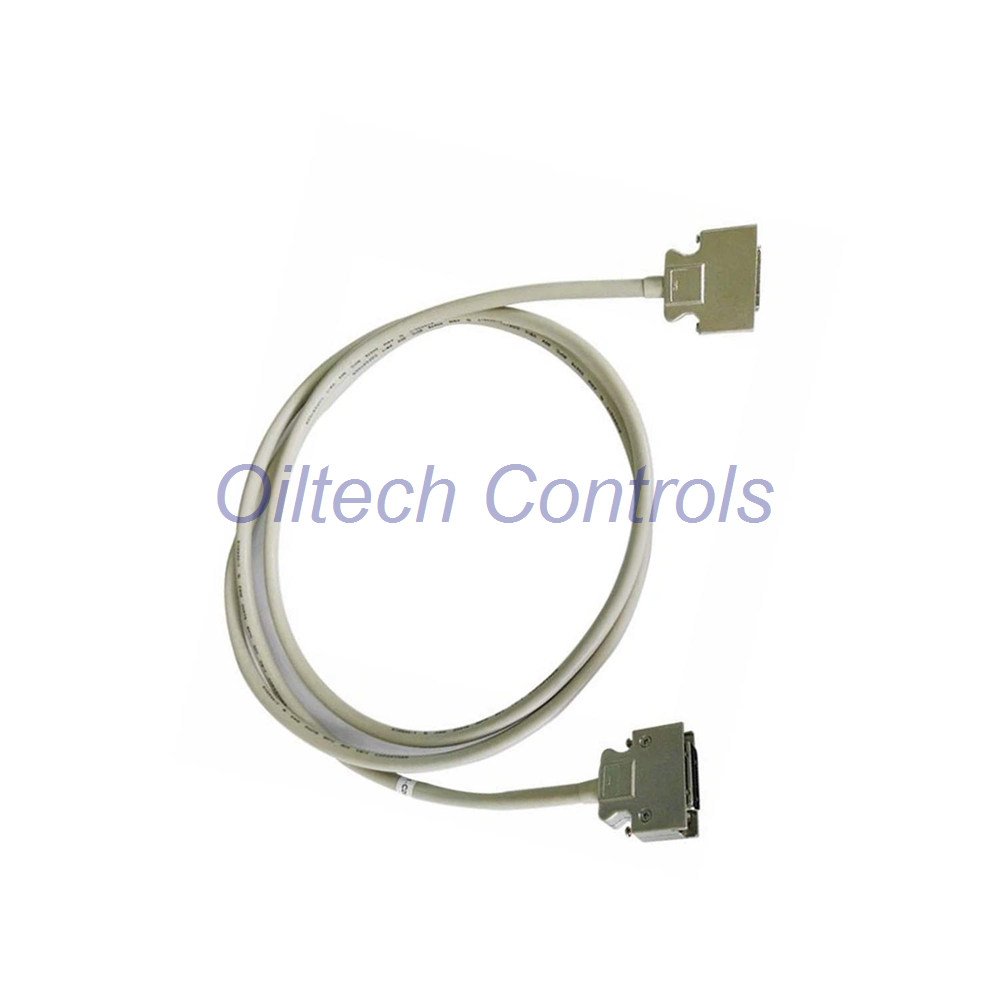

YCB301-C800 – Yokogawa 8m ESB Bus Cable
Engineered for extended reach in distributed control systems. This 36-pin to 36-pin ESB bus cable ensures robust data transfer over 8 meters with minimal signal degradation.
Oiltech Controls’s Insight
- Field-proven for long-distance I/O backplane connections.
- Maintains full bus speed up to 10 MHz at 8m length.
- Shielded construction reduces noise in high-EMI environments.
- Preferred for large cabinet layouts and remote chassis.
Technical Profile
- Brand: Yokogawa
- Model: YCB301-C800
- Cable Type: ESB Bus Cable, 36-pin both ends
- Length: 8 meters (suffix -C800)
- Frequency Response: DC to 10 MHz
- Shielding: Braided + foil for high immunity
- Temperature: -20°C to +70°C operating
- Protection: IP20, oil-resistant jacket
Compatible Systems
- Yokogawa CENTUM VP and CS 3000 DCS
- Modicon Quantum PLC series (with ESB interface)
- Any 36-pin ESB bus-based I/O racks
Installation & Field Service
- Plug-and-play; no special tools required.
- Diagnostic LED on connector for link health.
- Maintenance: visual inspection every 6 months.
Package & Logistics
- Package: Cable, anti-static bag, quick-start guide.
- Warranty: 12 months against defects.
- Shipping: 24–28 hour dispatch via FedEx, UPS, or DHL.
5 Professional FAQs
- Q: Can I use this 8m cable in a high-vibration area?
- A: Yes, the locking 36-pin connectors resist loosening under vibration.
- Q: How does the 8m length affect bus performance?
- A: At 8m, signal integrity stays within spec for 10 MHz operation.
- Q: Is this cable compatible with third-party ESB cards?
- A: It matches the standard ESB pinout; test with your card first.
- Q: What is the typical lead time for bulk orders?
- A: Bulk orders ship within 3–5 days after verification.
- Q: Which cable length should I choose for my cabinet?
- A: Measure the farthest I/O distance; 8m suits medium-to-large layouts.
