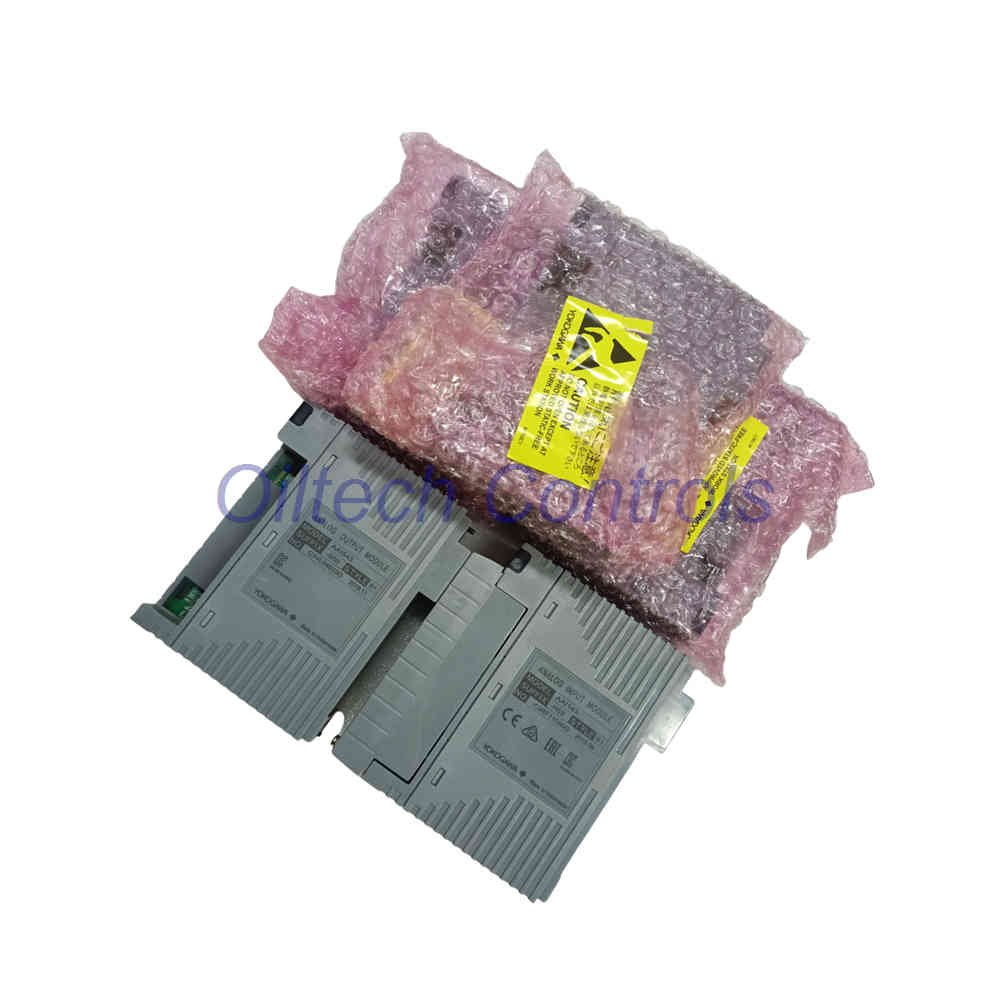

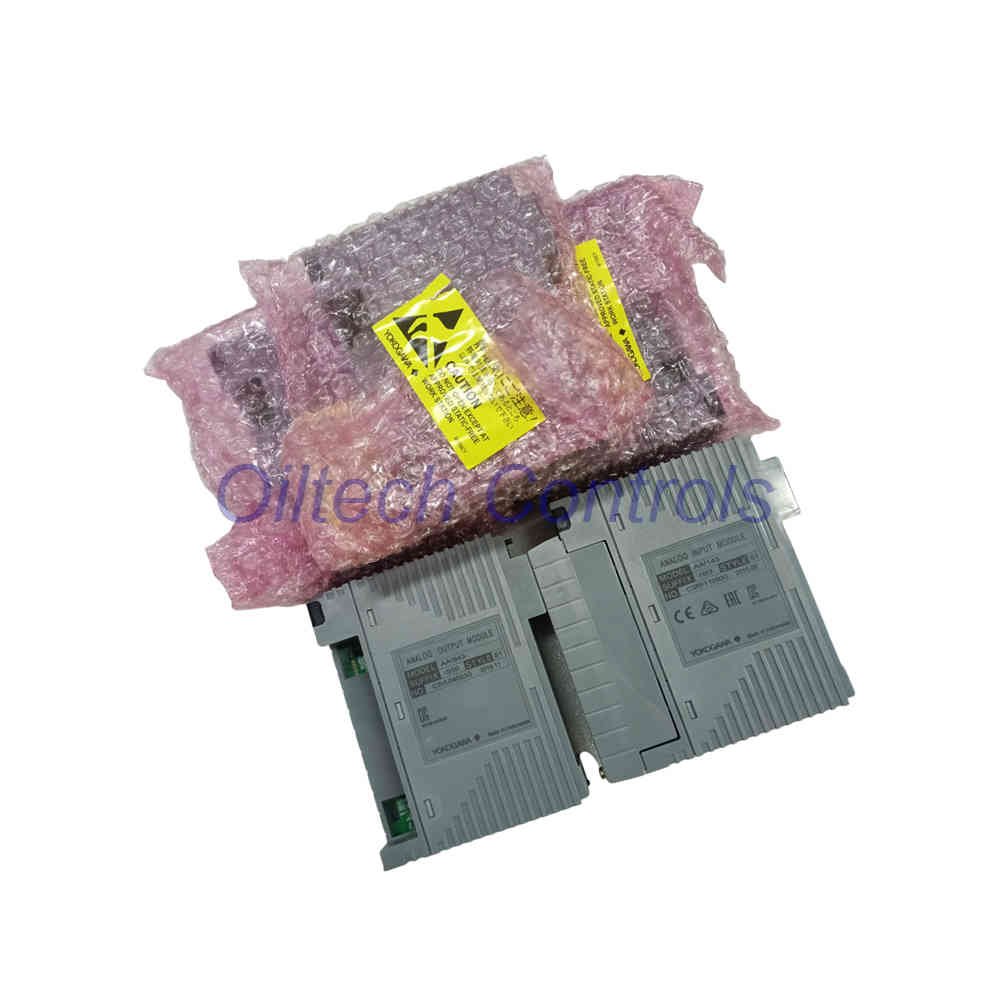

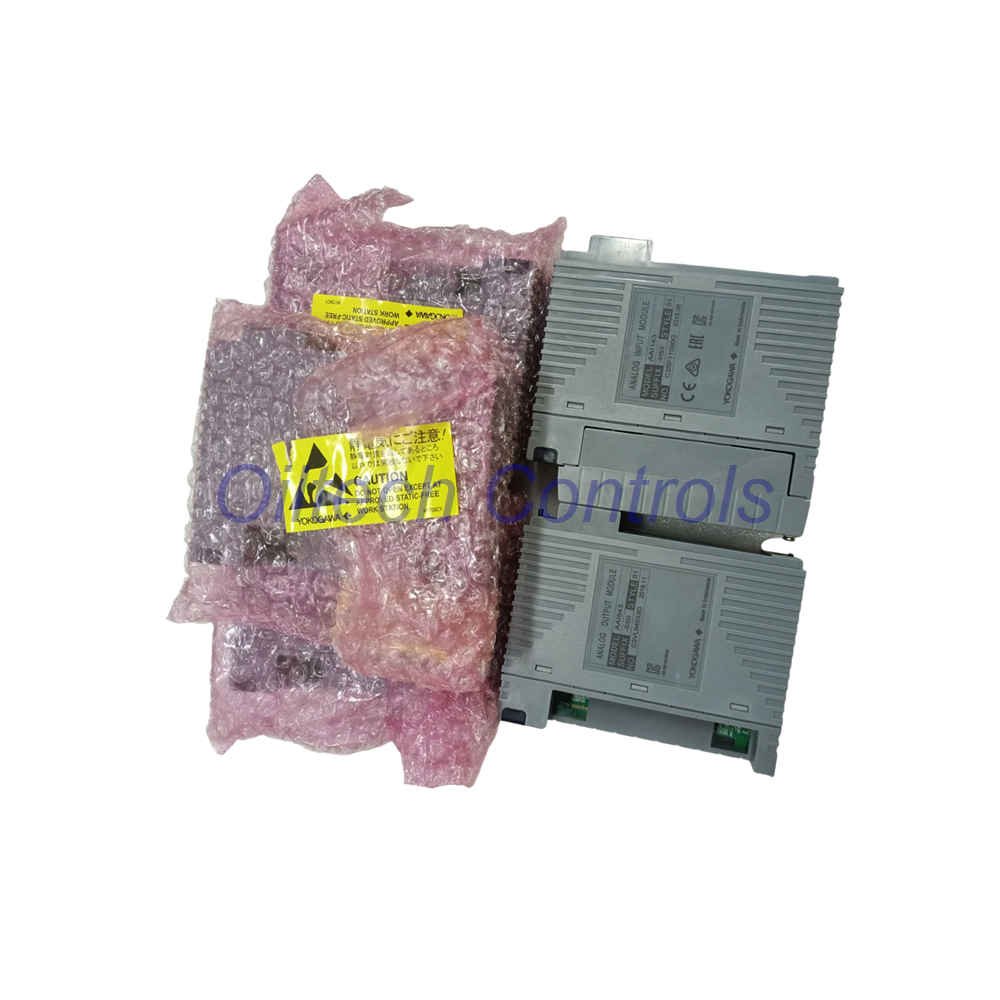

Yokogawa AAI143-H53/K4A00 16-Channel HART Analog Input Module

Product Overview

The Yokogawa AAI143-H53/K4A00 is a high-performance, 16-channel isolated analog input module designed for precision process control. This module facilitates seamless 4-20 mA signal processing while supporting HART digital communication protocols. Engineered with advanced G3-rated environmental protection, it ensures operational stability in harsh industrial conditions. The integration of the KS Cable Interface Adapter provides streamlined connectivity with AEA4D terminal boards, significantly reducing field installation time.

Technical Specifications

• Brand: Yokogawa
• Model: AAI143-H53/K4A00
• Input Channels: 16 isolated channels
• Signal Range: 4 to 20 mA input
• Measurement Accuracy: ±16 µA
• Resolution/Linearity: Optimized for high-precision industrial sensing
• Data Update Rate: 10 ms fast processing cycle
• Input Resistance: 270 Ω at 20 mA; 350 Ω at 4 mA
• Transmitter Power: 19.0 V to 25.5 V output voltage range
• Operating Temperature: -20 to 70 °C
• Environmental Resistance: ISA Standard G3 compliant for corrosive gas resistance
• Withstanding Voltage: 1500 V AC between input and system
• Power Consumption: 230 mA (5 V DC); 540 mA (24 V DC)
• Weight: 0.3 Kg

Installation, Maintenance, and Compatibility

• Mount the module into designated rack slots following standard cabinet layout guidelines.
• Utilize the integrated KS Cable Interface Adapter for direct connection to the AEA4D terminal board.
• Configure 2-wire or 4-wire transmitter modes via individual channel setting pins.
• HART protocol integration allows for remote device configuration and health diagnostics.
• The AAI143-H53 provides real-time loop status monitoring and simplified manual range adjustments.
• Compatible with CENTUM VP and ProSafe-RS control systems.
• Suitable for flow, pressure, and temperature transmitter inputs in chemical and power plants.

Logistics and Quality Assurance

• Warranty: 12-month quality guarantee on all units.
• Shipping: Reliable global delivery via FedEx, UPS, or DHL.
• Lead Time: Orders process and ship within 24 to 48 hours.
• Package Contents: 1x AAI143-H53/K4A00 module and comprehensive installation documentation.

Frequently Asked Questions (FAQ)

• Q: Can this module support both 2-wire and 4-wire transmitters simultaneously?
  A: Yes, you can configure the input mode for each channel independently using the onboard setting pins.
• Q: Is the G3 coating standard on this specific model?
  A: Yes, the G3 option is included in this specific part number to ensure durability in hazardous, high-sulfur environments.
• Q: Does the AAI143-H53 require external power for the HART communication?
  A: No, the module provides the necessary transmitter power supply directly to the field devices through the signal loop.
• Q: How do I select the correct cable interface?
  A: The included K4A00 adapter is specifically designed for the AEA4D terminal board, ensuring a perfect mechanical and electrical fit.
• Q: What should I check if the data update seems slow?
  A: Ensure your controller scan rate matches the 10 ms internal module update period to avoid signal lag.
