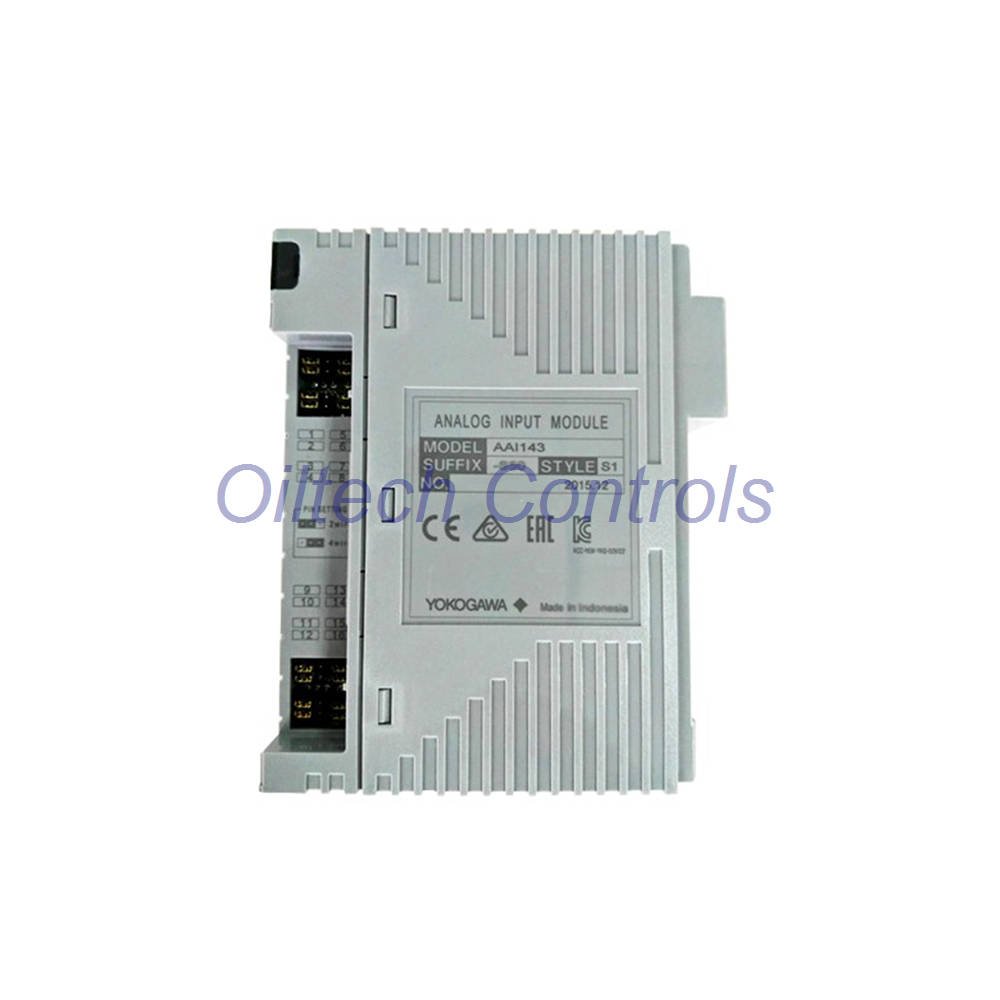

Yokogawa AAI143-S50/K4A00 Isolated Input Module | 16 Ch, 4-20mA

Yokogawa AAI143-S50/K4A00 – Isolated Analog Input Module

AAI143-S50/K4A00 is a 16-channel isolated analog input module from Yokogawa. It accepts 4 to 20 mA signals from field transmitters. The module provides high noise immunity and channel-to-channel isolation. It includes a KS cable interface adapter (ATK4A-00) for direct connection to AEA4D terminal boards. This module suits distributed control systems (DCS) and PLC environments.

Product Identification & Options

• Manufacturer: Yokogawa
• Product Number: AAI143-S50/K4A00
• Series: AAI143 – Analog Input Module (4-20 mA, 16-ch, Isolated)
• Suffix S: Standard type
• Explosion protection (5): No explosion protection
• Basic type (0): Standard configuration
• Optional /K4A00: Includes KS cable interface adapter (ATK4A-00) for AEA4D terminal board connection

Technical Highlights (Engineering Focus)

• Isolation: Channel-to-channel isolated for reduced ground loops
• Input range: 4 to 20 mADC (standard)
• Channel count: 16 discrete inputs
• Adapter included: KS cable interface (ATK4A-00) – saves wiring time
• Compatible with: Yokogawa CENTUM VP, CS 3000, and Modicon Quantum systems via appropriate cabling
• Power supply: Standard 5V/24V DC (refer to Yokogawa manual for exact ratings)

Installation & Connection Notes

• Mounting: Rack/slot installation in Yokogawa DCS or compatible chassis
• Wiring: Use KS cable with ATK4A-00 adapter to AEA4D terminal board
• Polarity: Observe correct polarity for 4-20 mA loops
• Setting: No per-channel pins required – isolation is fixed
• Environment: Suitable for indoor, non-hazardous areas (no explosion protection)

Compatibility & System Integration

• Works with Yokogawa field control units (FCU) and process control stations
• Supports HART pass-through (depending on system configuration)
• Compatible with AEA4D terminal board via /K4A00 adapter
• Can integrate into legacy Modicon Quantum systems with appropriate interface

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spare parts supply
• Worldwide shipping via FedEx, UPS, DHL – 24-28 hours dispatch
• Tested surplus and refurbished options with technical verification before shipment
• 12-month warranty against manufacturing defects
• Expert support for obsolete and legacy control systems

Oiltech Controls Review / Insight

• We pre-test every AAI143 module for accuracy and isolation integrity.
• Isolation reduces field wiring noise – critical for long cable runs.
• ATK4A-00 adapter simplifies terminal board connection, eliminating custom cable fabrication.
• This module is a reliable drop-in replacement for existing isolated input cards.
• We recommend checking terminal board compatibility before ordering.

Typical Applications & Suitable Devices

• Process variable monitoring (pressure, temperature, flow) in oil/gas, chemical, power
• Analog signal acquisition for DCS (CENTUM, CS 3000)
• Integration with PLC systems (e.g., Modicon Quantum)
• Replacement for older isolated input modules in legacy panels
• Works with Yokogawa transmitters and other 4-20 mA devices

Professional FAQ (Experience-Based & Selection Guide)

• Q: Is this module compatible with CENTUM VP R6?
  A: Yes, AAI143 series is fully supported in CENTUM VP and earlier versions. Verify firmware version for HART.
• Q: What is the difference between AAI143-S50/K4A00 and AAI141-S00?
  A: AAI143 provides channel-to-channel isolation, while AAI141 is non-isolated. Also, /K4A00 includes KS adapter for AEA4D terminal.
• Q: Can I use this module without the KS cable adapter?
  A: Yes, but you must use alternative wiring methods. The /K4A00 option is recommended for AEA4D terminal board simplicity.
• Q: How do I verify isolation integrity after installation?
  A: Measure resistance between channels – should be > 10 MΩ. Also check common-mode voltage rejection per Yokogawa specs.
• Q: Which terminal board is compatible with /K4A00?
  A: The adapter is specifically for AEA4D terminal board. Other boards may require different cable kits.

Shipping & Warranty Information

• Dispatch: 24-28 hours from order confirmation
• Carriers: FedEx, UPS, DHL – express delivery with tracking
• Warranty: 12 months from shipment date
• Technical support available for installation and troubleshooting
